onsemiDatasheet (PDF)

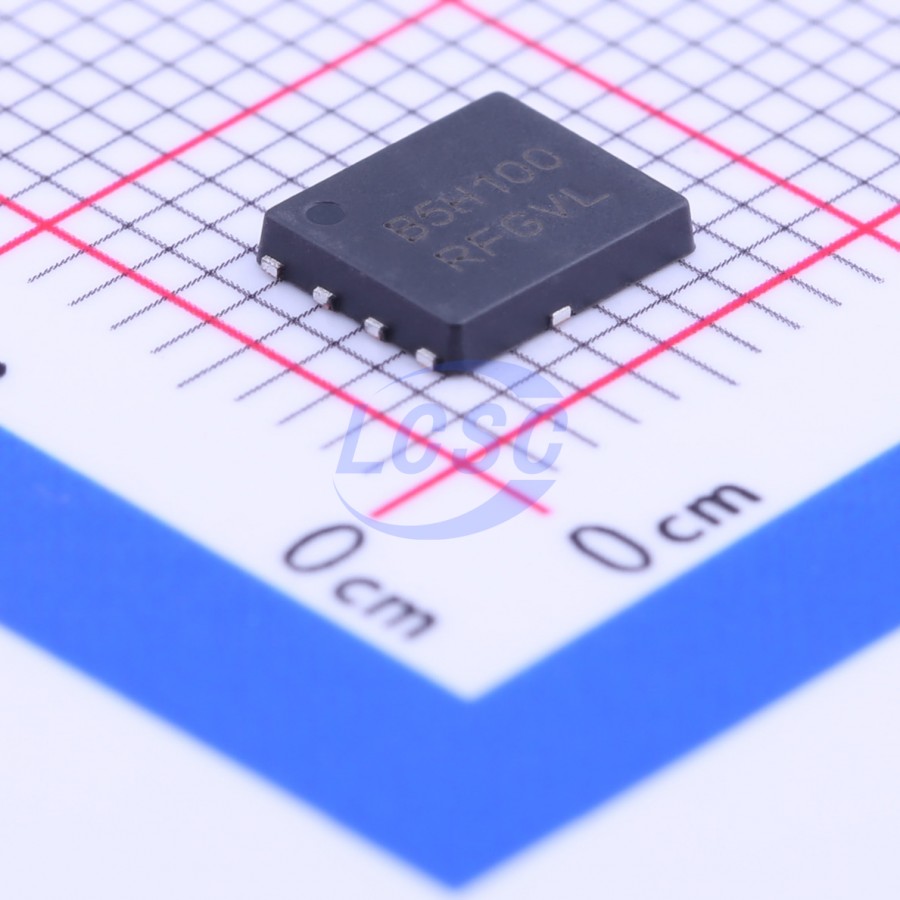

MBR5H100MFST1G
Diode 100V 5A Surface Mount DFN-5(5x6)
DFN-5(5x6)ROHS3 CompliantActive
DIODE SCHOTTKY 100V DFN-5(5x6)
- Manufacturer
- onsemi
- Manufacturer part #
- MBR5H100MFST1G
- Store part #
- C152503
- Package / case
- DFN-5(5x6)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
108 in stock
#C152503
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹140.38 | ₹140.38 |
| 10+ | ₹116.27 | ₹1,162.70 |
| 30+ | ₹102.78 | ₹3,083.40 |
| 100+ | ₹87.79 | ₹8,779.00 |
| 500+ | ₹81.06 | ₹40,530.00 |
| 1,500+ | ₹78.02 | ₹1,17,030.00 |
1 × ₹140.38
₹140.38
excl. GST
₹165.65 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
MBR5H100MFST1G
₹140.38 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 100V
- Voltage - Forward(Vf@If)
- 730mV@5A
- Reverse Leakage Current (Ir)
- 100uA@100V
- Non-Repetitive Peak Forward Surge Current
- 200A
- Current - Rectified
- 5A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.25 g
Overview
Key features
- Low Power Loss / High Efficiency
- New Package Provides Capability of Inspection and Probe After Board Mounting
- Guardring for Stress Protection
- Low Forward Voltage Drop
- 175℃ Operating Junction Temperature
- NRVB Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable
- These are Pb-Free Devices
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NRVTS30100MFST3G#C3759181onsemi · DFN-5(5x6) | onsemi | DFN-5(5x6) | 80 | ₹285.70 · 80 in stock | View |
| NRVB10100MFST1G#C900218onsemi · DFN-5(5x6) | onsemi | DFN-5(5x6) | 7 | ₹305.43 · 7 in stock | View | |
| NRVB8H100MFSWFT3G#C893757onsemi · DFN-5(5x6) | onsemi | DFN-5(5x6) | On request | ₹43.10 · 0 in stock | View | |
 | NRVB8H100MFSWFT1G#C900225onsemi · DFN-5(5x6) | onsemi | DFN-5(5x6) | 14 | ₹106.49 · 14 in stock | View |
| MBR30H100MFST3G#C895488onsemi · DFN-5(5x6) | onsemi | DFN-5(5x6) | 9 | ₹579.05 · 9 in stock | View | |
