onsemiDatasheet (PDF)

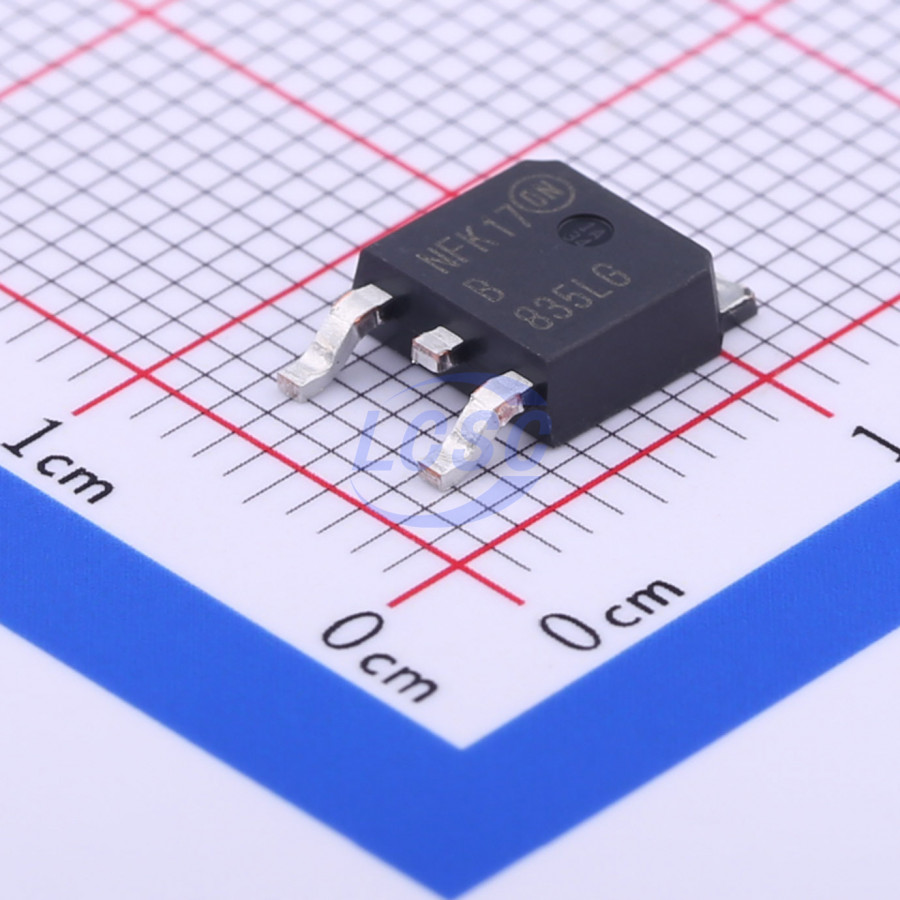

MBRD835LT4G
Diode 35V 8A Surface Mount TO-252-2(DPAK)
TO-252-2(DPAK)ROHS3 CompliantActive
DIODE SCHOTTKY 35V TO-252-2(DPAK)
- Manufacturer
- onsemi
- Manufacturer part #
- MBRD835LT4G
- Store part #
- C28423
- Package / case
- TO-252-2(DPAK)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,264 in stock
#C28423
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹68.66 | ₹68.66 |
| 10+ | ₹55.84 | ₹558.40 |
| 30+ | ₹50.19 | ₹1,505.70 |
| 100+ | ₹43.24 | ₹4,324.00 |
| 500+ | ₹35.21 | ₹17,605.00 |
| 1,000+ | ₹33.46 | ₹33,460.00 |
1 × ₹68.66
₹68.66
excl. GST
₹81.02 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MBRD835LT4G
₹68.66 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 35V
- Voltage - Forward(Vf@If)
- 510mV@8A
- Reverse Leakage Current (Ir)
- 1.4mA@35V
- Non-Repetitive Peak Forward Surge Current
- 75A
- Current - Rectified
- 8A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.438 g
Overview
This SWITCHMODE power rectifier which uses the Schottky Barrier principle with a proprietary barrier metal, is designed for use as output rectifiers, free wheeling, protection and steering diodes in switching power supplies, inverters and other inductive switching circuits.
Key features
- Low Forward Voltage
- 150℃ Operating Junction Temperature
- Epoxy Meets UL 94 V-0 @ 0.125 in
- Compact Size
- Lead Formed for Surface Mount
- SBRD8 Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable
- These Devices are Po-Free and are RoHS Compliant*
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MBRD835LT4G-JSM#C18195213JSMSEMI · TO-252 | JSMSEMI | TO-252 | 695 | ₹23.59 · 695 in stock | View |
 | MBRD835D#C5155452Slkor · TO-252 | Slkor | TO-252 | 380 | ₹52.66 · 380 in stock | View |
 | SBRD8835LT4G-VF01#C889833onsemi · DPAK | onsemi | DPAK | 40 | ₹295.76 · 40 in stock | View |
 | V20PW45-M3/I#C188622VISHAY · TO-252-2 | VISHAY | TO-252-2 | 665 | ₹74.62 · 665 in stock | View |
 | SRT20L60SCS#C7436481YFW · TO-252 | YFW | TO-252 | 1,995 | ₹45.67 · 1,995 in stock | View |
