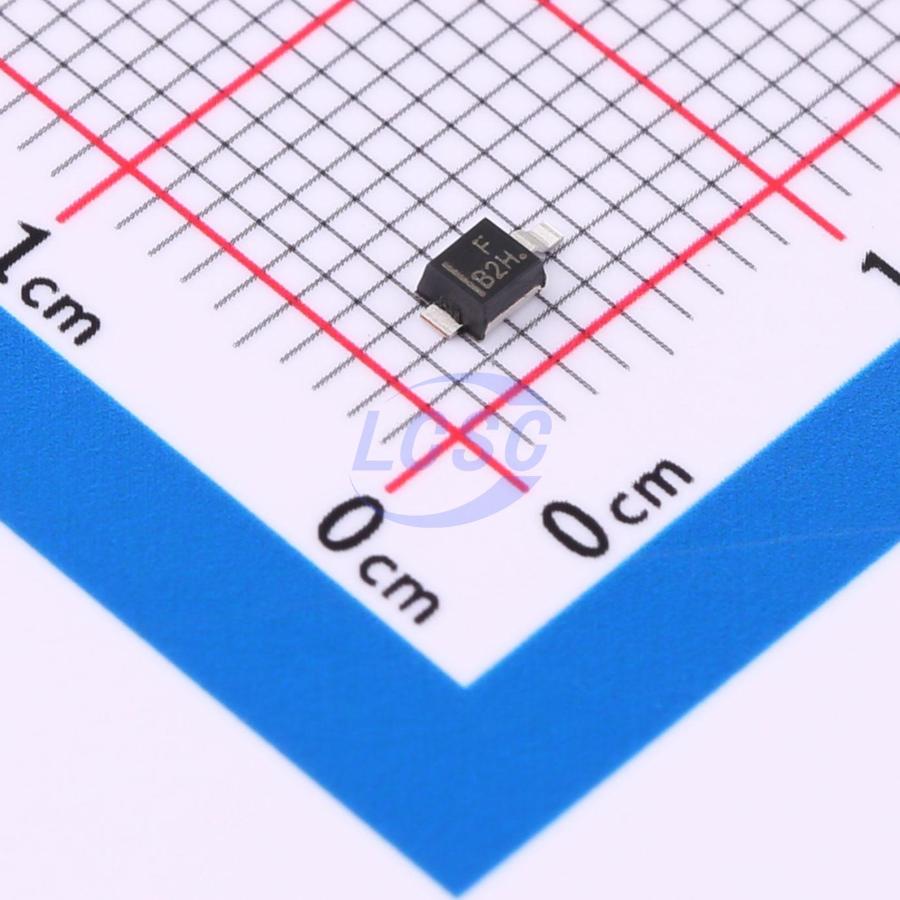

MBRM2H100T3G
Diode 100V 2A Power-mite-2
Power-mite-2ROHS3 CompliantActive
DIODE SCHOTTKY 100V Power-mite-2
- Manufacturer
- onsemi
- Manufacturer part #
- MBRM2H100T3G
- Store part #
- C464198
- Package / case
- Power-mite-2
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,029 in stock
#C464198
Stock & price checked 14 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹74.71 | ₹74.71 |
| 10+ | ₹66.88 | ₹668.80 |
| 30+ | ₹63.07 | ₹1,892.10 |
| 100+ | ₹59.26 | ₹5,926.00 |
| 500+ | ₹56.93 | ₹28,465.00 |
| 1,000+ | ₹55.66 | ₹55,660.00 |
1 × ₹74.71
₹74.71
excl. GST
₹88.16 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 12,000 per reel
MBRM2H100T3G
₹74.71 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 100V
- Operating Junction Temperature Range
- -65℃~+175℃
- Voltage - Forward(Vf@If)
- 840mV@2A
- Reverse Leakage Current (Ir)
- 20uA@100V
- Non-Repetitive Peak Forward Surge Current
- 50A
- Current - Rectified
- 2A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 12,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.05 g
Overview
The Schottky Powermite employs the Schottky Barrier principle with a barrier metal and epitaxial construction that produces optimal forward voltage drop - reverse current tradeoff. The advanced packaging techniques provide for a highly efficient micro miniature, space saving surface mount Rectifier. With its unique heatsink design, the Powermite has the same thermal performance as the SMA while being 50% smaller in footprint area.
Applications
- portable and battery powered products such as cellular and cordless phones, chargers, notebook computers, printers, PDAs and PCMCIA cards
- AC - DC and DC - DC converters
- reverse battery protection
- "ORing" of multiple supply voltages
Key features
- Low Profile
- Maximum Height of 1.1mm
- Small Footprint
- Footprint Area of 8.45mm²
- Low VF Provides Higher Efficiency and Extends Battery Life
- Supplied in 12mm Tape and Reel
- Low Thermal Resistance with Direct Thermal Path of Die on Exposed Cathode Heat Sink
- NRV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC - Q101 Qualified and PPAP Capable
- This is a Pb - Free Device
