onsemiDatasheet (PDF)

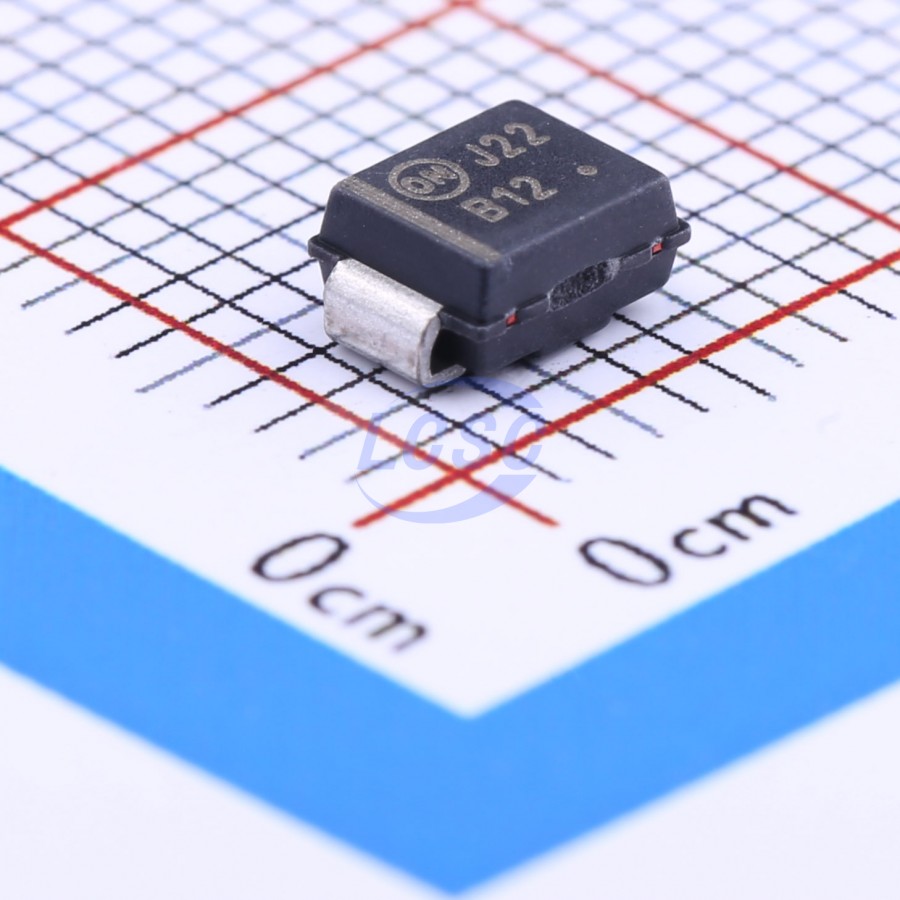

MBRS120T3G
Diode 20V 1A Surface Mount SMB(DO-214AA)
SMB(DO-214AA)ROHS3 CompliantActive
DIODE SCHOTTKY 20V SMB(DO-214AA)
- Manufacturer
- onsemi
- Manufacturer part #
- MBRS120T3G
- Store part #
- C38049
- Package / case
- SMB(DO-214AA)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
535 in stock
#C38049
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.22 | ₹81.10 |
| 50+ | ₹12.69 | ₹634.50 |
| 150+ | ₹10.93 | ₹1,639.50 |
| 500+ | ₹9.60 | ₹4,800.00 |
| 2,500+ | ₹8.55 | ₹21,375.00 |
| 5,000+ | ₹8.02 | ₹40,100.00 |
5 × ₹16.22
₹81.10
excl. GST
₹95.70 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MBRS120T3G
₹81.10 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+125℃
- Voltage - DC Reverse (Vr) (Max)
- 20V
- Voltage - Forward(Vf@If)
- 600mV@1A
- Reverse Leakage Current (Ir)
- 1mA@20V
- Non-Repetitive Peak Forward Surge Current
- 40A
- Current - Rectified
- 1A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.213 g
Overview
This device employs the Schottky Barrier principle in a large area metal-to-silicon power diode. State-of-the-art geometry features epitaxial construction with oxide passivation and metal overlay contact. Ideally suited for low voltage, high frequency rectification, or as free wheeling and polarity protection diodes in surface mount applications where compact size and weight are critical to the system.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MBRS140T3G#C133091onsemi · SMB(DO-214AA) | onsemi | SMB(DO-214AA) | 20,995 | ₹15.81 · 20,995 in stock | View |
 | MBRS130T3G#C146717onsemi · SMB(DO-214AA) | onsemi | SMB(DO-214AA) | 2,355 | ₹45.76 · 2,355 in stock | View |
 | MBRS140T3G(MS)#C22399565MSKSEMI · SMB | MSKSEMI | SMB | 3,100 | ₹5.27 · 3,100 in stock | View |
 | MBRS140T3G#C5377815Tokmas · SMB | Tokmas | SMB | 1,050 | ₹7.00 · 1,050 in stock | View |
 | SBRS8140NT3G#C889837onsemi · SMB | onsemi | SMB | On request | ₹81.64 · 0 in stock | View |
