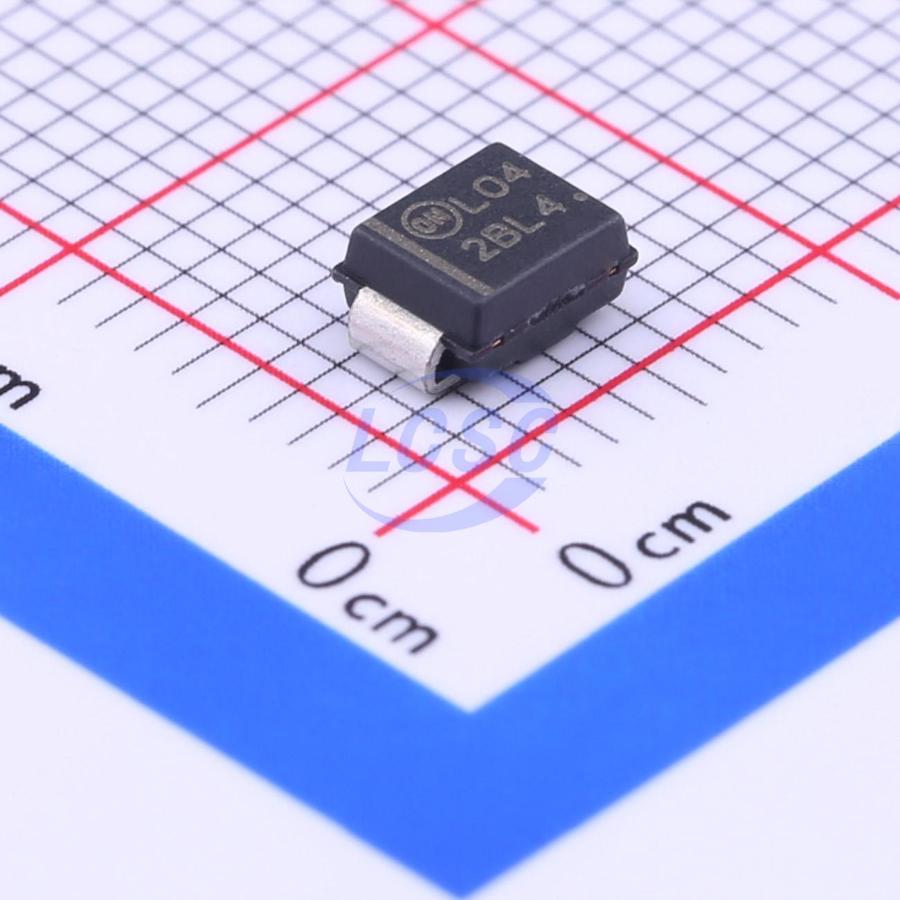

MBRS240LT3G
Diode 40V 2A Surface Mount SMB(DO-214AA)
SMB(DO-214AA)ROHS3 CompliantActive
DIODE SCHOTTKY 40V SMB(DO-214AA)
- Manufacturer
- onsemi
- Manufacturer part #
- MBRS240LT3G
- Store part #
- C8165
- Package / case
- SMB(DO-214AA)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15,505 in stock
#C8165
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.43 | ₹127.15 |
| 50+ | ₹19.71 | ₹985.50 |
| 150+ | ₹17.27 | ₹2,590.50 |
| 500+ | ₹14.21 | ₹7,105.00 |
| 2,500+ | ₹12.85 | ₹32,125.00 |
| 5,000+ | ₹12.03 | ₹60,150.00 |
5 × ₹25.43
₹127.15
excl. GST
₹150.04 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MBRS240LT3G
₹127.15 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+125℃
- Voltage - DC Reverse (Vr) (Max)
- 40V
- Voltage - Forward(Vf@If)
- 430mV@2A
- Reverse Leakage Current (Ir)
- 2mA@40V
- Non-Repetitive Peak Forward Surge Current
- 25A
- Current - Rectified
- 2A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.213 g
Overview
employing the Schottky Barrier principle in a metal-to-silicon power rectifier. Features epitaxial construction with oxide passivation and metal overlay contact. Ideally suited for low voltage, high frequency switching power supplies; free wheeling diodes and polarity protection diodes.
Applications
- low voltage, high frequency switching power supplies
- free wheeling diodes
- polarity protection diodes
Key features
- Compact Package with J-Bend Leads Ideal for Automated Handling
- Highly Stable Oxide Passivated Junction
- Guardring for Overvoltage Protection
- Low Forward Voltage Drop
- Pb-Free Package is Available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MBRS240LT3G(MS)#C22399566MSKSEMI · SMB | MSKSEMI | SMB | 2,475 | ₹18.85 · 2,475 in stock | View |
 | B340LB-13-F(MS)#C22459237MSKSEMI · SMB | MSKSEMI | SMB | 2,460 | ₹10.99 · 2,460 in stock | View |
 | B340LB-13-F#C97318DIODES · SMB(DO-214AA) | DIODES | SMB(DO-214AA) | 4,815 | ₹20.18 · 4,815 in stock | View |
 | MBRS240LT3G-FS#C22438932FUXINSEMI · SMB(DO-214AA) | FUXINSEMI | SMB(DO-214AA) | 1,960 | ₹14.34 · 1,960 in stock | View |
 | MBRS2040LT3G#C59626onsemi · SMB(DO-214AA) | onsemi | SMB(DO-214AA) | 4,635 | ₹33.39 · 4,635 in stock | View |
