HXY MOSFETDatasheet (PDF)

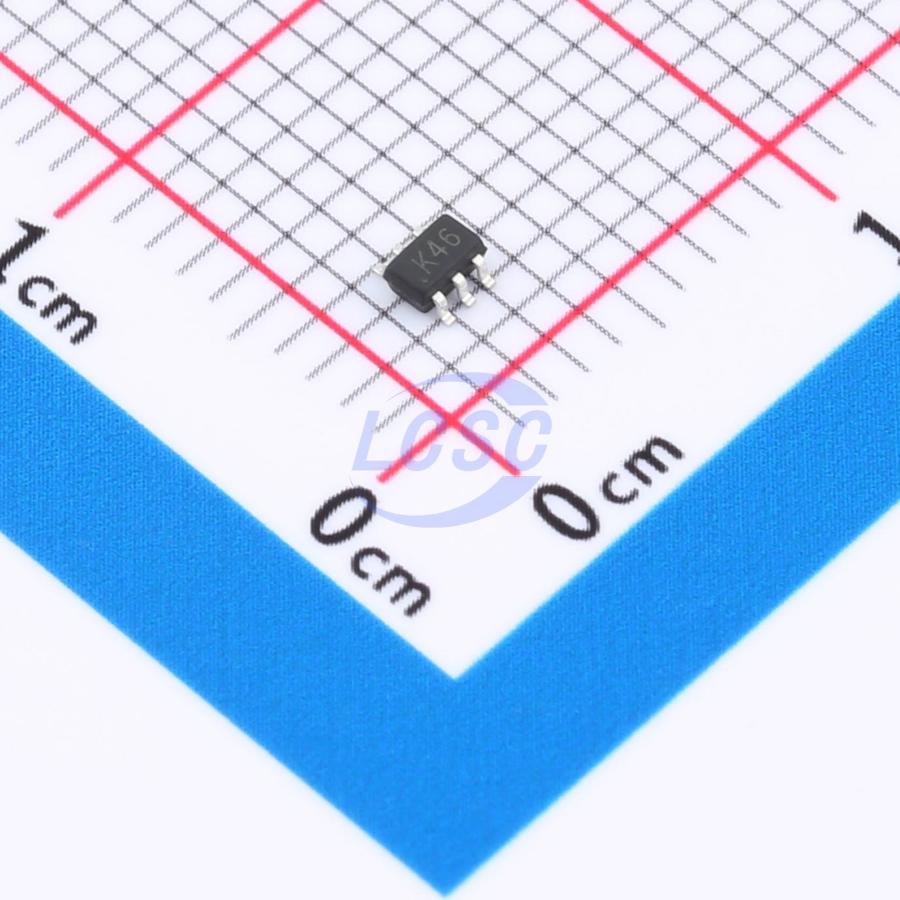

MBT3946DW1T1G-HXY
Bipolar (BJT) Transistor NPN+PNP 40V 200mA 300MHz 200mW Surface Mount SOT-363
SOT-363ROHS CompliantActive
TRANS NPN+PNP 40V 200mA SOT-363
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- MBT3946DW1T1G-HXY
- Store part #
- C47506901
- Package / case
- SOT-363
- Category
- Single Bipolar Transistors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
340 in stock
#C47506901
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.50 | ₹110.00 |
| 200+ | ₹4.37 | ₹874.00 |
| 600+ | ₹3.73 | ₹2,238.00 |
| 3,000+ | ₹3.36 | ₹10,080.00 |
| 9,000+ | ₹3.03 | ₹27,270.00 |
| 21,000+ | ₹2.84 | ₹59,640.00 |
20 × ₹5.50
₹110.00
excl. GST
₹129.80 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MBT3946DW1T1G-HXY
₹110.00 for 20 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Current - Collector Cutoff
- 50nA
- Transition frequency(fT)
- 300MHz
- Collector - Emitter Voltage VCEO
- 40V
- DC Current Gain
- 300
- Emitter-Base Voltage VEBO
- 5V
- Current - Collector(Ic)
- 200mA
- Pd - Power Dissipation
- 200mW
- Configuration
- Standalone
- Number
- 1 NPN + 1 PNP
- type
- NPN+PNP
- Vce Saturation(VCE(sat))
- 400mV
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.021 g
Overview
Key features
- Complementary Pair.
- One 3904-Type NPN.
- One 3906-Type PNP.
- Epitaxial Planar Die Construction.
- Ideal for Low Power Amplification and Switching.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MMDT3946#C19267763HXY MOSFET · SOT-363 | HXY MOSFET | SOT-363 | 2,540 | ₹3.20 · 2,540 in stock | View |
 | PMBT3946YPN-HXY#C47506894HXY MOSFET · SOT-363 | HXY MOSFET | SOT-363 | 60 | ₹8.04 · 60 in stock | View |
 | MMDT4146-7-F-HXY#C47506905HXY MOSFET · SOT-363 | HXY MOSFET | SOT-363 | 80 | ₹12.66 · 80 in stock | View |
