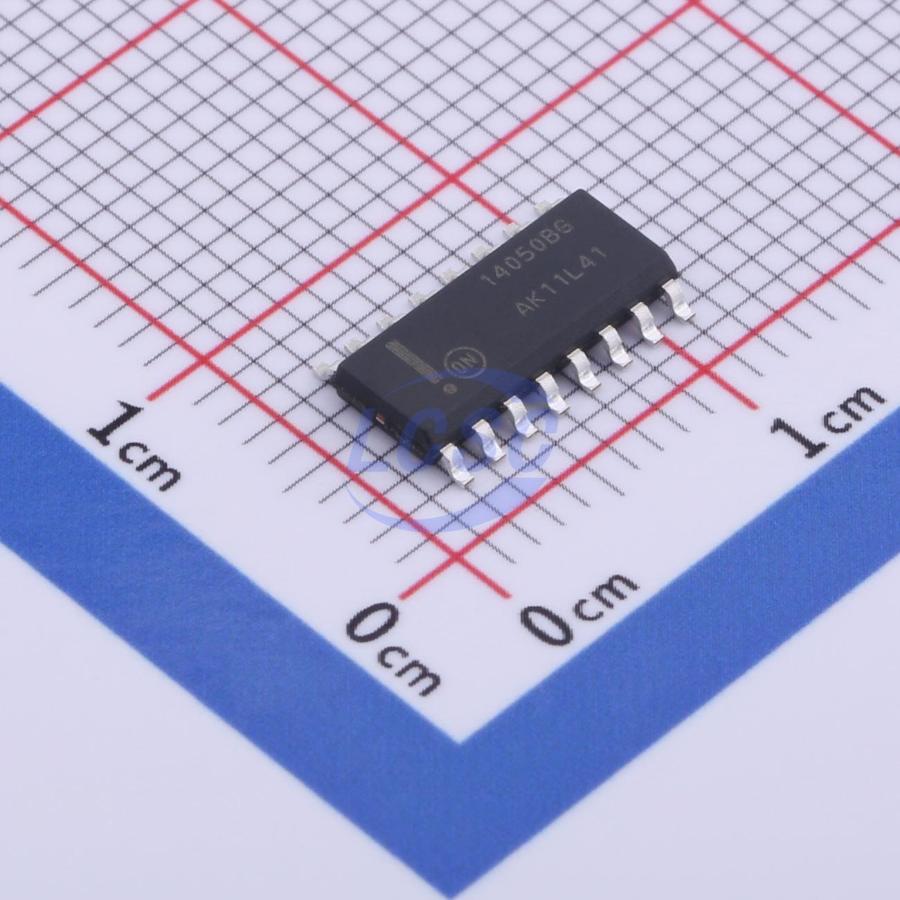

MC14050BDR2G

The MC14049B Hex Inverter/Buffer and MC14050B Noninverting Hex Buffer are constructed with MOS P−Channel and N−Channel enhancement mode devices in a single monolithic structure. These complementary MOS devices find primary use where low power dissipation and/or high noise immunity is desired. These devices provide logic level conversion using only one supply voltage, VDD. The input−signal high level (VIH) can exceed the VDD supply voltage for logic level conversions. Two TTL/DTL loads can be driven when the devices are used as a CMOS−to−TTL/DTL converter (VDD = 5.0 V, VOL ≤ 0.4 V, IOL ≥ 3.2 mA).

Key features

• High Source and Sink Currents
• High−to−Low Level Converter
• Supply Voltage Range = 3.0 V to 18 V
• VIN can exceed VDD
• Meets JEDEC B Specifications
• Improved ESD Protection On All Inputs
• NLV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
• These Devices are Pb−Free and are RoHS Compliant
