STDatasheet (PDF)

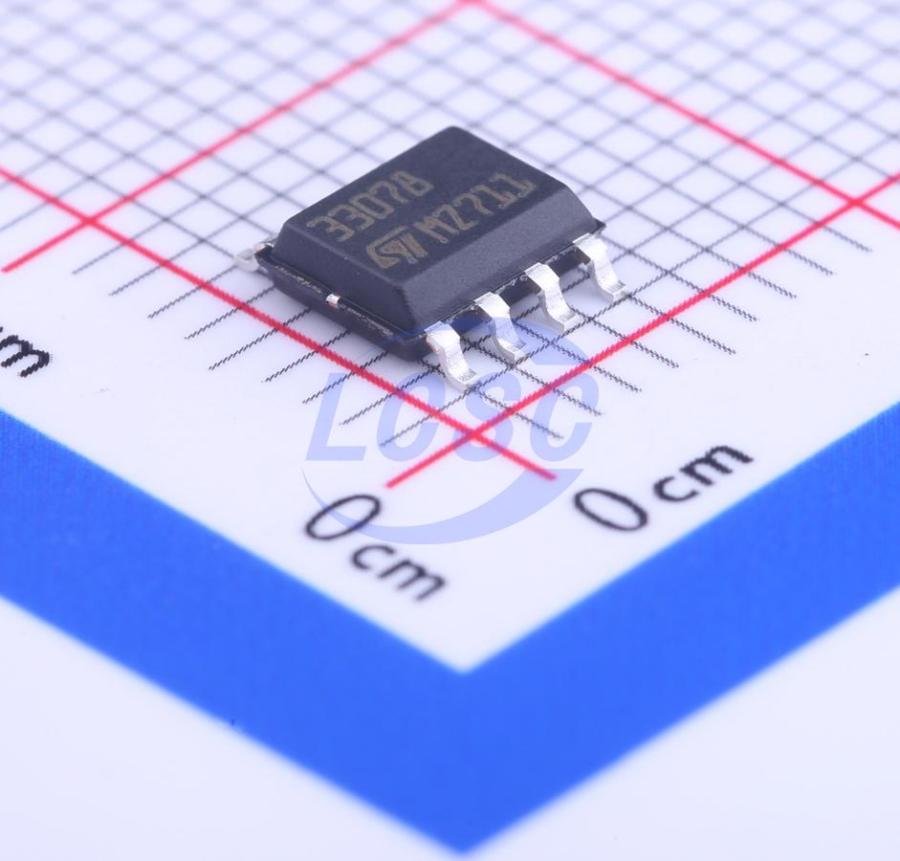

MC33078DT
29mA 2 150uV 7V/us 100dB 250nA 4mA 15MHz SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-8ROHS3 CompliantActive
Low Noise Operational Amplifier
- Manufacturer
- ST
- Manufacturer part #
- MC33078DT
- Store part #
- C108206
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,255 in stock
#C108206
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹51.97 | ₹259.85 |
| 50+ | ₹42.14 | ₹2,107.00 |
| 150+ | ₹37.93 | ₹5,689.50 |
| 500+ | ₹28.58 | ₹14,290.00 |
| 2,500+ | ₹26.24 | ₹65,600.00 |
| 5,000+ | ₹24.82 | ₹1,24,100.00 |
5 × ₹51.97
₹259.85
excl. GST
₹306.62 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MC33078DT
₹259.85 for 5 + GST
Specifications
- Output Current
- 29mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 150uV
- Slew Rate
- 7V/us
- Input Offset Current(Ios)
- 10nA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 100dB
- Ib - Input Bias Current
- 250nA
- Input Offset Voltage Drift(Vos TC)
- 2uV/℃
- Quiescent Current
- 4mA
- Gain Bandwidth Product
- 15MHz
- Input Voltage Noise Density
- 4.5nV/√Hz@1kHz
- Dual Supply
- -15V~-2.5V;2.5V~15V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.266 g
Overview
The MC33078 device is a monolithic dual operational amplifier particularly well suited for audio applications. It offers low voltage noise (4.5 nV/√Hz) and high frequency performance (15 MHz gain bandwidth product, 7 V/µs slew rate). In addition, the MC33078 device has a very low distortion (0.002%) and excellent phase/gain margins. The output stage allows a large output voltage swing and symmetrical source and sink currents.
Key features
- Low voltage noise: 4.5 nV/√Hz
- High gain bandwidth product: 15 MHz
- High slew rate: 7 V/µs
- Low distortion: 0.002%
- Large output voltage swing: +14.3 V / -14.6 V
- Low input offset voltage
- Excellent frequency stability
- ESD protection 2 kV
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MC33078D#C5268495ST · SO-8 | ST | SO-8 | 6 | ₹181.30 · 6 in stock | View |
 | HT33078ARZ#C2937055HTCSEMI · SOP-8 | HTCSEMI | SOP-8 | 300 | ₹46.36 · 300 in stock | View |
 | HX33078-S#C41399183ZHHXDZ · SOP-8 | ZHHXDZ | SOP-8 | 645 | ₹16.68 · 645 in stock | View |
| XL33078DR#C46971282XINLUDA · SOP-8 | XINLUDA | SOP-8 | 2,480 | ₹11.21 · 2,480 in stock | View | |
 | MC33078YDT#C2652268ST · SO-8 | ST | SO-8 | 1 | ₹211.65 · 1 in stock | View |
