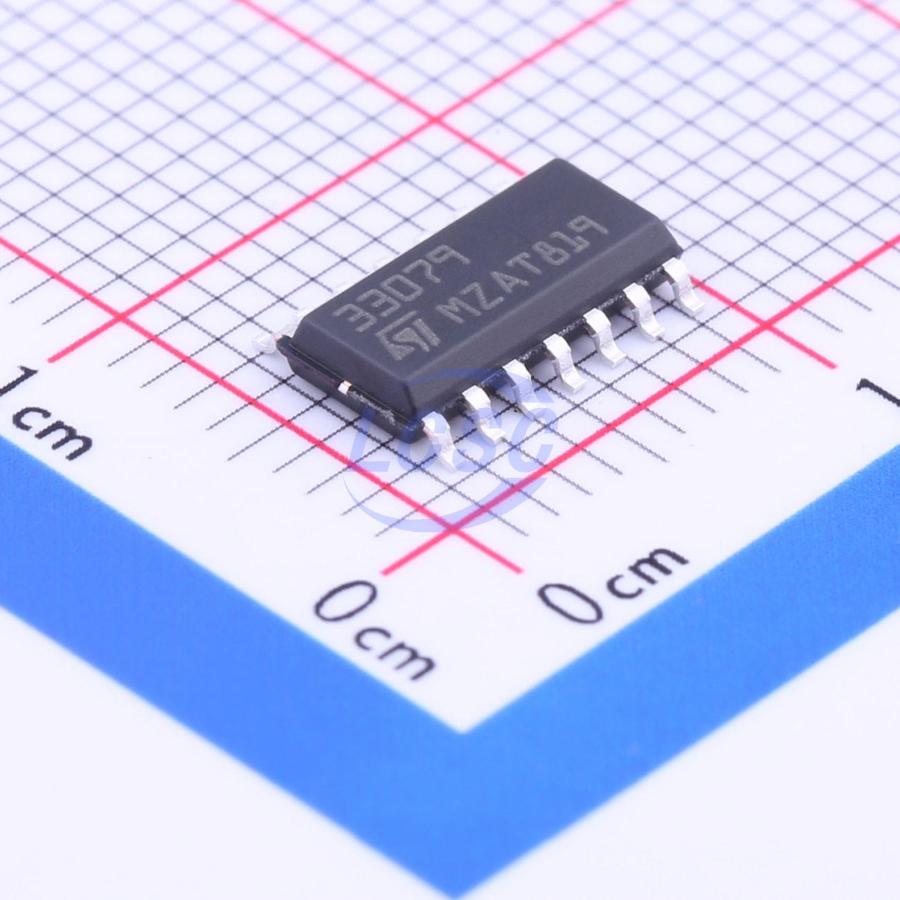

MC33079DT

8mA 4-Channel SOIC-14 Instrumentation, Op Amps, Buffer Amps RoHS

SOIC-14ROHS3 CompliantActive

Low noise quad operational amplifier

Manufacturer: ST
Manufacturer part #: MC33079DT
Store part #: C163540
Package / case: SOIC-14
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

12,570 in stock

#C163540

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
5+	₹45.92	₹229.60
50+	₹36.51	₹1,825.50
150+	₹32.49	₹4,873.50
500+	₹27.47	₹13,735.00
2,500+	₹25.23	₹63,075.00
5,000+	₹23.88	₹1,19,400.00

Quantity (min 5, multiples of 5)

5 × ₹45.92

₹229.60

excl. GST

₹270.93 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

MC33079DT

₹229.60 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Quiescent Current: 8mA
Total Harmonic Distortion + Noise (THD+N): 0.002%
Features: ESD protection
Speaker Channels: 4-Channel
Voltage - Supply: -15V~-2.5V;2.5V~15V
Operating Temperature: -40℃~+125℃
Power Supply Rejection Ratio (PSRR): 105dB

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.263 g

Overview

The MC33079 device is a monolithic quad operational amplifier particularly well suited for audio applications. It offers low voltage noise (4.5 nV/√Hz) and high frequency performance (15 MHz gain bandwidth product, 7 V/µs slew rate). In addition the MC33079 device has a very low distortion (0.002%) and excellent phase/gain margins. The output stage allows a large output voltage swing and symmetrical source and sink currents.
