TIDatasheet (PDF)

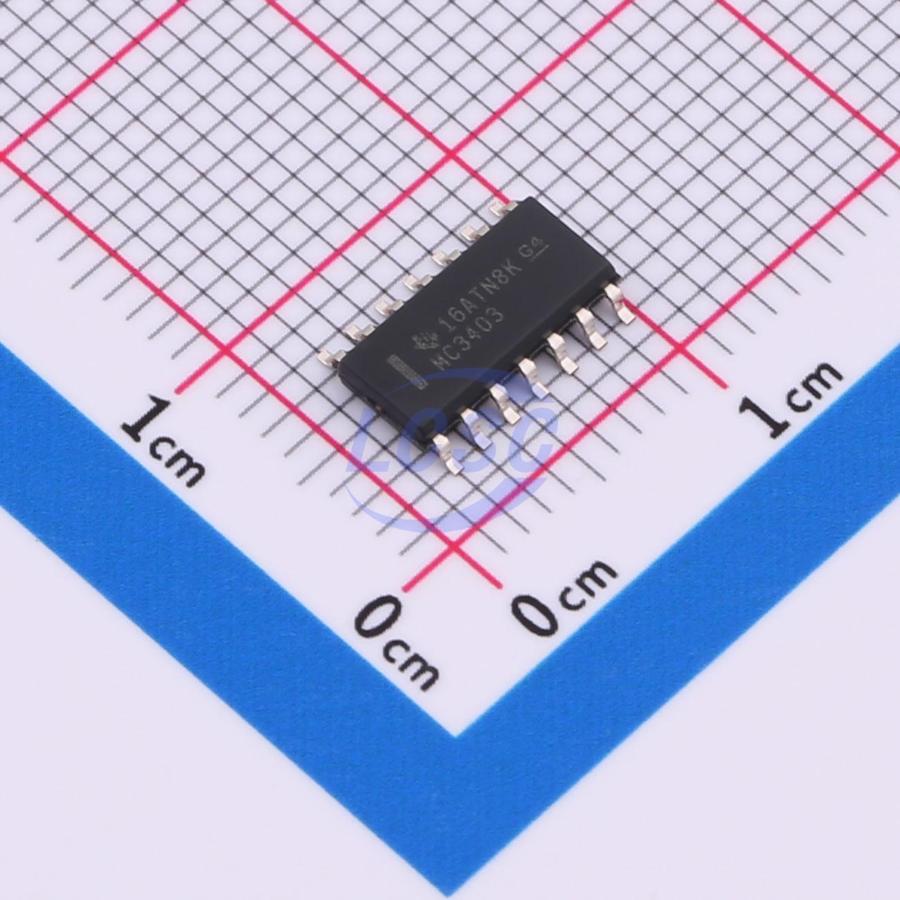

MC3403DR
30mA 4 10mV 600V/ms 70dB 500nA 2.8mA 1MHz SOIC-14 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-14ROHS3 CompliantActive
QUADRUPLE LOW-POWER OPERATIONAL AMPLIFIERS
- Manufacturer
- TI
- Manufacturer part #
- MC3403DR
- Store part #
- C2058177
- Package / case
- SOIC-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,935 in stock
#C2058177
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹90.64 | ₹90.64 |
| 10+ | ₹77.62 | ₹776.20 |
| 30+ | ₹68.31 | ₹2,049.30 |
| 100+ | ₹60.71 | ₹6,071.00 |
| 500+ | ₹58.33 | ₹29,165.00 |
| 1,000+ | ₹56.81 | ₹56,810.00 |
1 × ₹90.64
₹90.64
excl. GST
₹106.96 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MC3403DR
₹90.64 for 1 + GST
Specifications
- Output Current
- 30mA
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 10mV
- Slew Rate
- 600V/ms
- Input Offset Current(Ios)
- 50nA
- Operating Temperature
- 0℃~+70℃
- Common Mode Rejection Ratio(CMRR)
- 70dB
- Ib - Input Bias Current
- 500nA
- Input Offset Voltage Drift(Vos TC)
- 10uV/℃
- Quiescent Current
- 2.8mA
- Gain Bandwidth Product
- 1MHz
- Features
- Built-in compensation
- Dual Supply
- -15V~-2.5V;2.5V~15V
- Single Supply
- 3V~36V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.175 g
Overview
The MC3303 and the MC3403 are quadruple operational amplifiers similar in performance to the μA741, but with several distinct advantages. They are designed to operate from a single supply over a range of voltages from 3V to 36V. Operation from split supplies also is possible, provided the difference between the two supplies is 3V to 36 V. The common - mode input range includes the negative supply. Output range is from the negative supply to VCC - 1.5V. Quiescent supply currents are less than one - half those of the μA741. The MC3303 is characterized for operation from - 40°C to 85°C, and the MC3403 is characterized for operation from 0°C to 70°C.
Key features
- Wide supply voltage range, supports single-supply and dual-supply operation
- Class AB output stage
- True differential input stage
- Low input bias current
- Internal frequency compensation
- Short-circuit protection
- Pin-compatible with same-specification products
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| MC3303DR#C2867401TI · SOIC-14 | TI | SOIC-14 | 1 | ₹105.92 · 1 in stock | View | |
 | MC3403DR2G#C7576onsemi · SOIC-14-150mil | onsemi | SOIC-14-150mil | 665 | ₹63.27 · 665 in stock | View |
 | BA3474F-E2#C600771ROHM · SOP-14-175mil | ROHM | SOP-14-175mil | 207 | ₹183.84 · 207 in stock | View |
 | MC3303DT#C2060670ST · SO-14 | ST | SO-14 | 1 | ₹448.68 · 1 in stock | View |
 | RS8454XP-Q1#C19269203RUNIC · SOP-14 | RUNIC | SOP-14 | 2,480 | ₹60.99 · 2,480 in stock | View |
