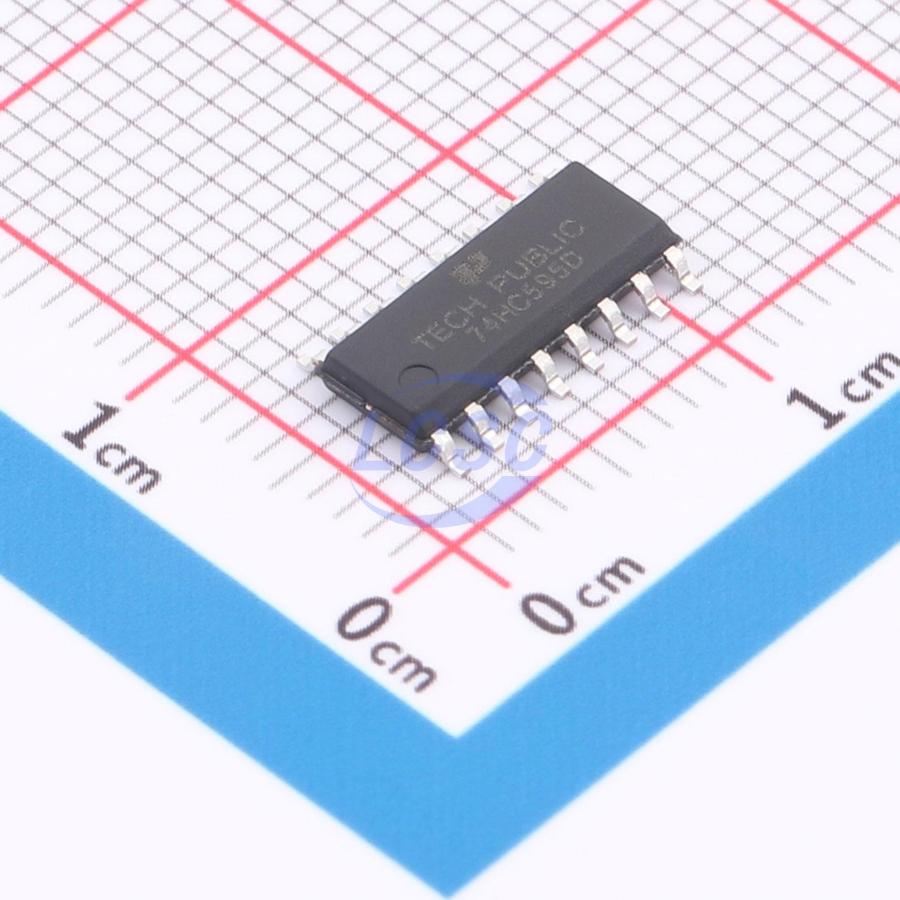

MC74HC595ADR2G-TP
2V~6V 25mA 16ns@6.0V,50pF Serial-to-Serial or Parallel SOP-16 Shift Registers
SOP-16RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- MC74HC595ADR2G-TP
- Store part #
- C53100538
- Package / case
- SOP-16
- Category
- Shift Registers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,990 in stock
#C53100538
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.44 | ₹52.20 |
| 50+ | ₹8.19 | ₹409.50 |
| 150+ | ₹7.06 | ₹1,059.00 |
| 500+ | ₹6.22 | ₹3,110.00 |
| 2,500+ | ₹5.54 | ₹13,850.00 |
| 5,000+ | ₹5.21 | ₹26,050.00 |
5 × ₹10.44
₹52.20
excl. GST
₹61.60 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MC74HC595ADR2G-TP
₹52.20 for 5 + GST
Specifications
- Operating temperature
- -40℃~+85℃
- Pd - Power Dissipation
- 500mW
- Voltage - Supply
- 2V~6V
- Output Type
- Tri-State
- Current - Output High(IOH)
- 35mA
- Series
- 74HC
- Current - Output Low(IOL)
- 35mA
- Output Current
- 25mA
- Propagation Delay
- 16ns@6.0V,50pF
- Features
- Asynchronous clear function;Output enable
- Function
- Serial-to-Serial or Parallel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.282 g
Overview
The device contains an 8-bit serial-in, parallel-out shift register that feeds an 8-bit D-type latch with parallel three-state outputs. The shift register and latch each have independent clocks. The shift register features a direct overriding clear input, a serial input, and a serial output for cascading. The device also provides an asynchronous reset for the shift register.
Applications
- Servers
- LED displays
- Network switches
- Power infrastructure
- Serialization/Deserialization
Key features
- Input level: CMOS level
- 8-bit serial input
- 8-bit serial or parallel output
- Shift register with direct clear function
- Operating temperature range: -40℃ ~ +85℃
- Storage register with tri-state output
- Package: SOP-16
