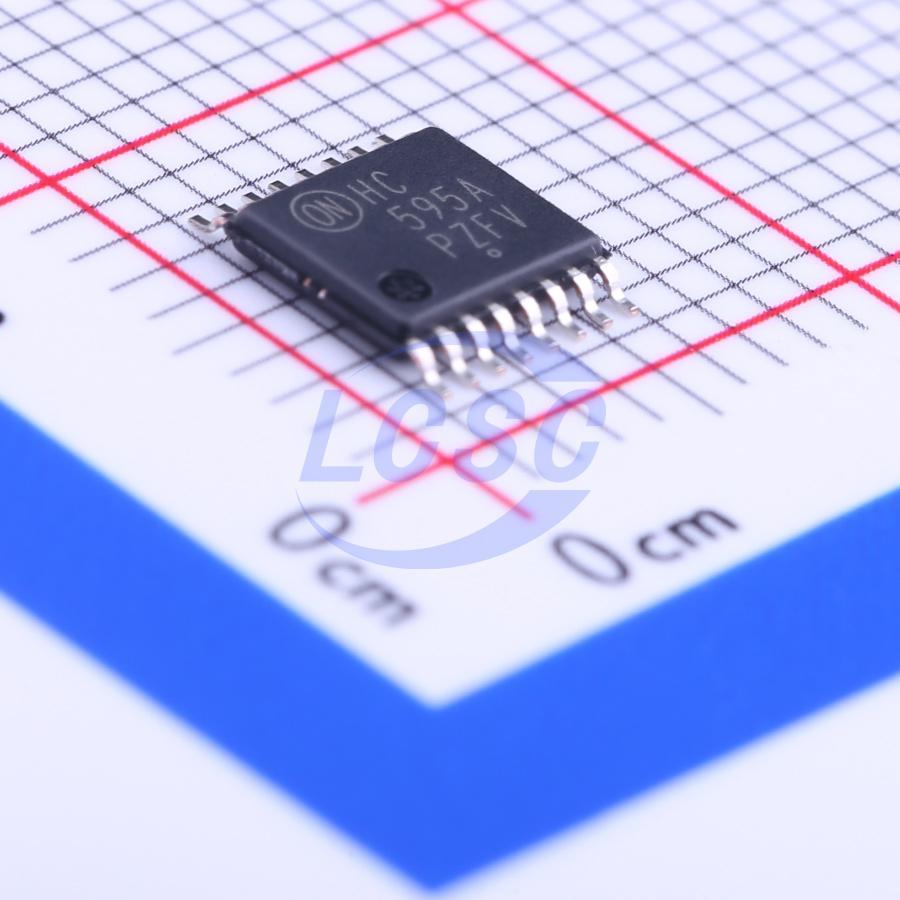

MC74HC595ADTR2G

The MC74HC595A consists of an 8−bit shift register and an 8−bit D−type latch with three−state parallel outputs. The shift register accepts serial data and provides a serial output. The shift register also provides parallel data to the 8−bit latch. The shift register and latch have independent clock inputs. This device also has an asynchronous reset for the shift register. The HC595A directly interfaces with the SPI serial data port on CMOS MPUs and MCUs.

Key features

• Output drive capability: 15 LSTTL loads
• Outputs directly interface with CMOS, NMOS, and TTL
• Operating voltage range: 2.0 to 6.0V
• Low input current: 1.0 μA
• High noise immunity characteristic of CMOS devices
• Meets requirements of JEDEC Standard No. 7A
• Chip complexity: 328 FETs or 82 equivalent gates
• Improvements over HC595: improved propagation delay; 50% reduction in quiescent power consumption; improved input noise and latch-up immunity
• NLV prefix for automotive and other applications requiring unique site and control change requirements; AEC-Q100 qualified and PPAP capable
• These devices are lead-free, halogen-free, and RoHS compliant
