onsemiDatasheet (PDF)

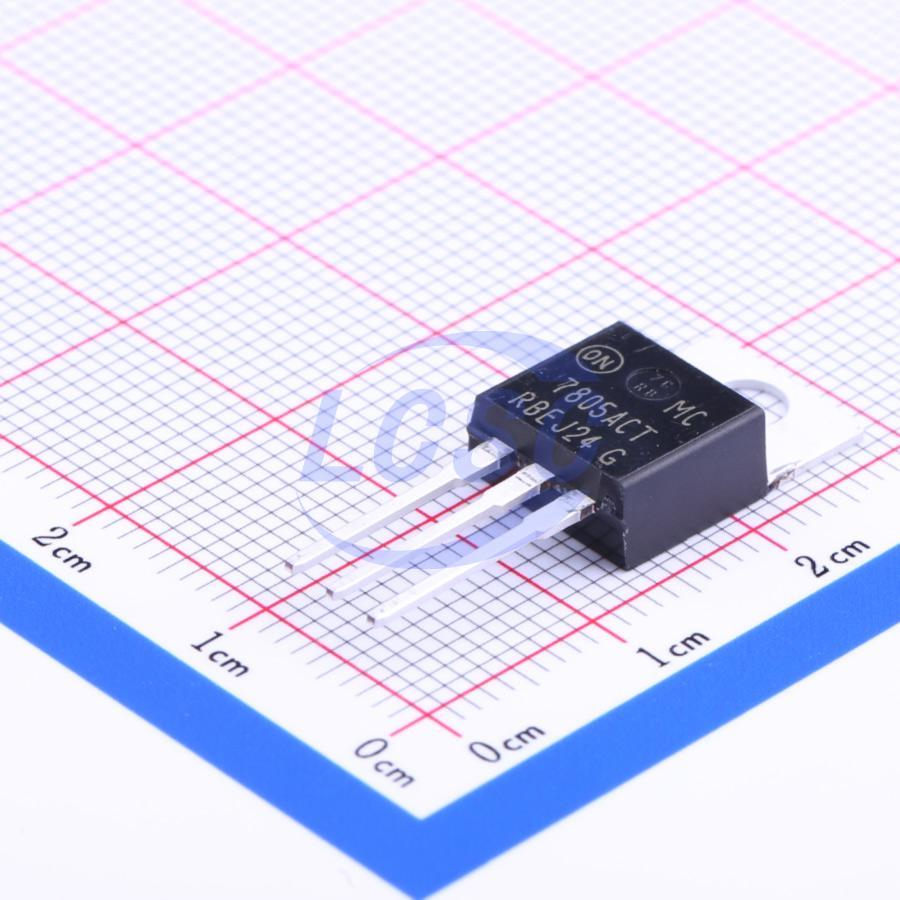

MC7805ACTG
5V Positive Fixed TO-220 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-220ROHS3 CompliantActive
1.0 A Positive Voltage Regulators
- Manufacturer
- onsemi
- Manufacturer part #
- MC7805ACTG
- Store part #
- C89321
- Package / case
- TO-220
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
218 in stock
#C89321
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹95.79 | ₹95.79 |
| 10+ | ₹77.67 | ₹776.70 |
| 50+ | ₹68.52 | ₹3,426.00 |
| 100+ | ₹59.56 | ₹5,956.00 |
| 500+ | ₹54.11 | ₹27,055.00 |
| 1,000+ | ₹51.28 | ₹51,280.00 |
1 × ₹95.79
₹95.79
excl. GST
₹113.03 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
MC7805ACTG
₹95.79 for 1 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃
- Supply Current (Iq)
- 3.2mA
- Output Configuration
- Positive
- Operating Voltage
- 35V
- Output Current
- 1A
- Features
- Thermal shutdown;Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.16 g
Overview
These voltage regulators are monolithic integrated circuits designed as fixed−voltage regulators for a wide variety of applications including local, on−card regulation. These regulators employ internal current limiting, thermal shutdown, and safe−area compensation. With adequate heatsinking they can deliver output currents in excess of 1.0 A. Although designed primarily as a fixed voltage regulator, these devices can be used with external components to obtain adjustable voltages and currents.
Key features
- Output Current in Excess of 1.0 A
- No External Components Required
- Internal Thermal Overload Protection
- Internal Short Circuit Current Limiting
- Output Transistor Safe−Area Compensation
- Output Voltage Offered in 1.5%, 2% and 4% Tolerance
- Available in Surface Mount D²PAK−3, DPAK−3 and Standard 3−Lead Transistor Packages
- NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
- These are Pb−Free Devices
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | L7805CV-DG#C3795ST · TO-220 | ST | TO-220 | 46,295 | ₹47.87 · 46,295 in stock | View |
 | L7805CV#C111887ST · TO-220 | ST | TO-220 | 23,933 | ₹48.51 · 23,933 in stock | View |
 | L7805ACV-DG#C472632ST · TO-220 | ST | TO-220 | 1,938 | ₹72.53 · 1,938 in stock | View |
 | 78M05#C19273142YFW · TO-220C | YFW | TO-220C | 120 | ₹32.19 · 120 in stock | View |
 | L7805-AW TO-220#C54430184KTP · TO-220 | KTP | TO-220 | 400 | ₹23.31 · 400 in stock | View |
