onsemiDatasheet (PDF)

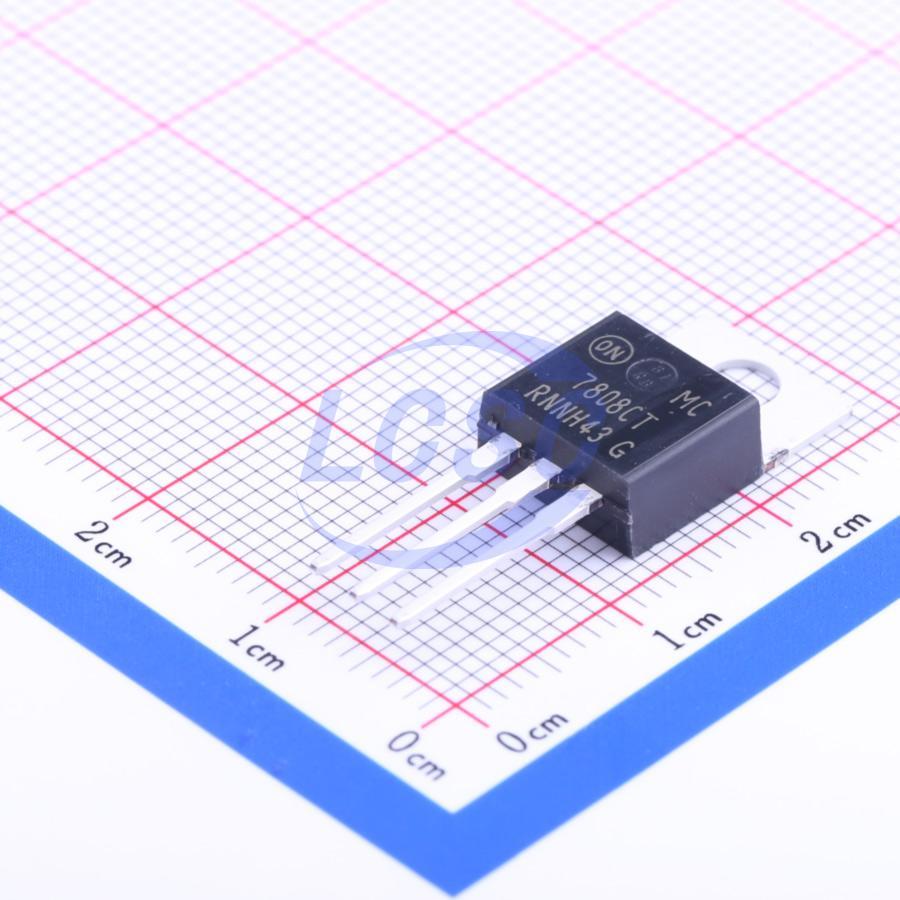

MC7808CTG
8V Positive Fixed TO-220 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-220ROHS3 CompliantActive
1.0 A Positive Voltage Regulators
- Manufacturer
- onsemi
- Manufacturer part #
- MC7808CTG
- Store part #
- C126396
- Package / case
- TO-220
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
82 in stock
#C126396
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹95.18 | ₹95.18 |
| 10+ | ₹75.85 | ₹758.50 |
| 50+ | ₹66.07 | ₹3,303.50 |
| 100+ | ₹56.51 | ₹5,651.00 |
| 500+ | ₹50.63 | ₹25,315.00 |
| 1,000+ | ₹47.81 | ₹47,810.00 |
1 × ₹95.18
₹95.18
excl. GST
₹112.31 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
MC7808CTG
₹95.18 for 1 + GST
Specifications
- Output Voltage
- 8V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃
- Supply Current (Iq)
- 8mA
- Output Configuration
- Positive
- Operating Voltage
- 35V
- Output Current
- 1A
- Features
- Short Circuit Protection;Thermal shutdown;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.16 g
Overview
These voltage regulators are monolithic integrated circuits designed as fixed−voltage regulators for a wide variety of applications including local, on−card regulation. These regulators employ internal current limiting, thermal shutdown, and safe−area compensation. With adequate heatsinking they can deliver output currents in excess of 1.0 A. Although designed primarily as a fixed voltage regulator, these devices can be used with external components to obtain adjustable voltages and currents.
Key features
- Output Current in Excess of 1.0 A
- No External Components Required
- Internal Thermal Overload Protection
- Internal Short Circuit Current Limiting
- Output Transistor Safe−Area Compensation
- Output Voltage Offered in 1.5%, 2% and 4% Tolerance
- Available in Surface Mount D²PAK−3, DPAK−3 and Standard 3−Lead Transistor Packages
- NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
- These are Pb−Free Devices
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| MC7808ACTG#C897046onsemi · TO-220AB | onsemi | TO-220AB | 53 | ₹138.45 · 53 in stock | View | |
 | L7808CAT#C51898330GREENMICRO · TO-220-3 | GREENMICRO | TO-220-3 | 500 | ₹20.14 · 500 in stock | View |
 | L7808-1.5A#C25503861TDSEMIC · TO-220-3L | TDSEMIC | TO-220-3L | 360 | ₹24.79 · 360 in stock | View |
 | L7808CV(UMW)#C347290UMW · TO-220 | UMW | TO-220 | 20,115 | ₹24.20 · 20,115 in stock | View |
 | LM7808CT#C7432227HGSEMI · TO-220-3 | HGSEMI | TO-220-3 | 1,785 | ₹28.55 · 1,785 in stock | View |
