onsemiDatasheet (PDF)

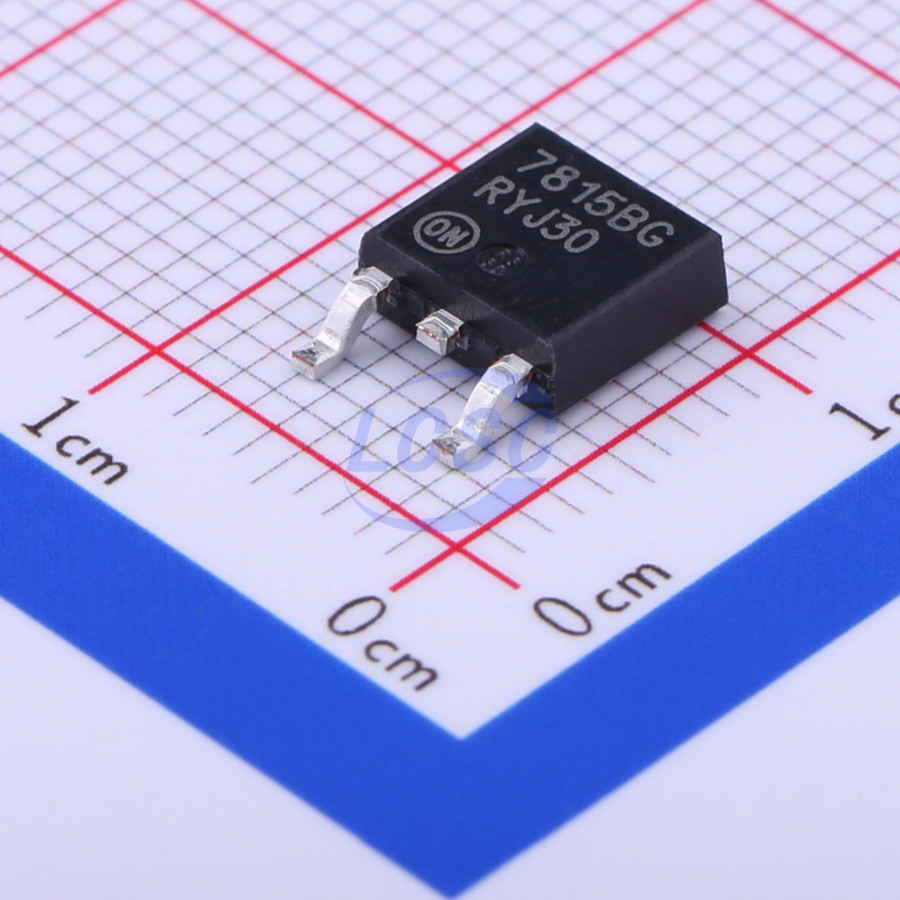

MC7815BDTRKG
15V Positive Fixed TO-252-2(DPAK) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-252-2(DPAK)ROHS3 CompliantActive
1.0 A Positive Voltage Regulators
- Manufacturer
- onsemi
- Manufacturer part #
- MC7815BDTRKG
- Store part #
- C38381
- Package / case
- TO-252-2(DPAK)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,825 in stock
#C38381
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹48.67 | ₹243.35 |
| 50+ | ₹37.77 | ₹1,888.50 |
| 150+ | ₹33.11 | ₹4,966.50 |
| 500+ | ₹27.28 | ₹13,640.00 |
| 2,500+ | ₹24.69 | ₹61,725.00 |
| 5,000+ | ₹23.14 | ₹1,15,700.00 |
5 × ₹48.67
₹243.35
excl. GST
₹287.15 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MC7815BDTRKG
₹243.35 for 5 + GST
Specifications
- Output Voltage
- 15V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 3.5mA
- Output Configuration
- Positive
- Operating Voltage
- 30V
- Output Current
- 1A
- Features
- Short Circuit Protection;Thermal shutdown;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.438 g
Overview
These voltage regulators are monolithic integrated circuits designed as fixed−voltage regulators for a wide variety of applications including local, on−card regulation. These regulators employ internal current limiting, thermal shutdown, and safe−area compensation. With adequate heatsinking they can deliver output currents in excess of 1.0 A. Although designed primarily as a fixed voltage regulator, these devices can be used with external components to obtain adjustable voltages and currents.
Key features
- Output Current in Excess of 1.0 A
- No External Components Required
- Internal Thermal Overload Protection
- Internal Short Circuit Current Limiting
- Output Transistor Safe−Area Compensation
- Output Voltage Offered in 1.5%, 2% and 4% Tolerance
- Available in Surface Mount D²PAK−3, DPAK−3 and Standard 3−Lead Transistor Packages
- NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
- These are Pb−Free Devices
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CJ7815B-TFN-ARG#C19190328JSCJ · TO-252-2L | JSCJ | TO-252-2L | 2,915 | ₹23.21 · 2,915 in stock | View |
 | MC7815CDTRKG#C133887onsemi · TO-252-2(DPAK) | onsemi | TO-252-2(DPAK) | 1,645 | ₹41.15 · 1,645 in stock | View |
 | AS7815ADTR-G1#C460417DIODES · TO-252-2 | DIODES | TO-252-2 | 5,675 | ₹55.67 · 5,675 in stock | View |
 | JTD78M15#C54928347JTD · TO-252-3 | JTD | TO-252-3 | 1,450 | ₹12.49 · 1,450 in stock | View |
 | BA7815FP-E2#C3750413ROHM · TO-252 | ROHM | TO-252 | 8 | ₹105.36 · 8 in stock | View |
