onsemiDatasheet (PDF)

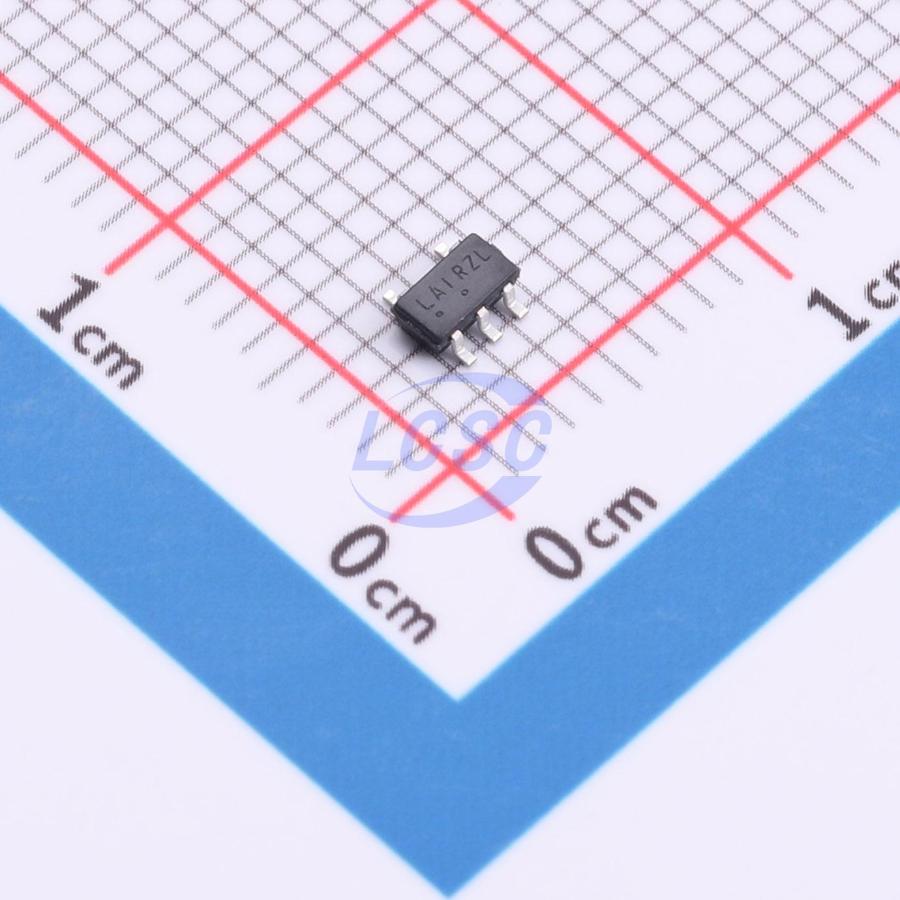

MC78LC25NTRG
2.5V Positive Fixed TSOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TSOT-23-5ROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- MC78LC25NTRG
- Store part #
- C463811
- Package / case
- TSOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C463811
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹27.03 | ₹27.03 |
| 10+ | ₹26.41 | ₹264.10 |
| 30+ | ₹26.00 | ₹780.00 |
| 100+ | ₹25.59 | ₹2,559.00 |
1 × ₹27.03
₹27.03
excl. GST
₹31.90 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MC78LC25NTRG
₹27.03 for 1 + GST
Specifications
- Output Voltage
- 2.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 1.1uA
- Output Configuration
- Positive
- Output Current
- 80mA
- Operating Voltage
- 12V
- Features
- Enable control
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.072 g
Overview
The MC78LC00 series of fixed output low dropout linear regulators are designed for handheld communication equipment and portable battery powered applications which require low quiescent current. The MC78LC00 series features an ultra−low quiescent current of 1.1 μA. Each device contains a voltage reference unit, an error amplifier, a PMOS power transistor, and resistors for setting output voltage. The MC78LC00 has been designed to be used with low cost ceramic capacitors and requires a minimum output capacitor of 0.1 μF. The device is housed in the micro−miniature Thin SOT23−5 surface mount package Standard voltage versions are 1.8, 2.5, 3.0, 3.3 V.
Applications
- Battery Powered Instruments
- Hand−Held Instruments
- Camcorders and Cameras
Key features
- Low Quiescent Current of 1.1 μA Typical
- Excellent Line and Load Regulation
- Maximum Operating Voltage of 12 V
- Low Output Voltage Option
- High Accuracy Output Voltage of 2.5%
- Industrial Temperature Range of -40°C to 85°C
- Surface Mount Packages (SOT−23, 5 Pin)
- These are Pb−Free Devices
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | H7225-1M5R#C2965592Siproin · SOT-23-5 | Siproin | SOT-23-5 | 2,525 | ₹16.02 · 2,525 in stock | View |
 | TPS70925DBVT#C2870357TI · SOT-23-5 | TI | SOT-23-5 | 242 | ₹216.65 · 242 in stock | View |
 | HT7525-2#C94829HOLTEK · SOT-23-5 | HOLTEK | SOT-23-5 | 2,325 | ₹20.31 · 2,325 in stock | View |
 | CJ6330B25M#C17703078JSCJ · SOT-23-5L | JSCJ | SOT-23-5L | 1,565 | ₹17.79 · 1,565 in stock | View |
 | HT7525-2-TP#C42460237TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,985 | ₹16.33 · 2,985 in stock | View |
