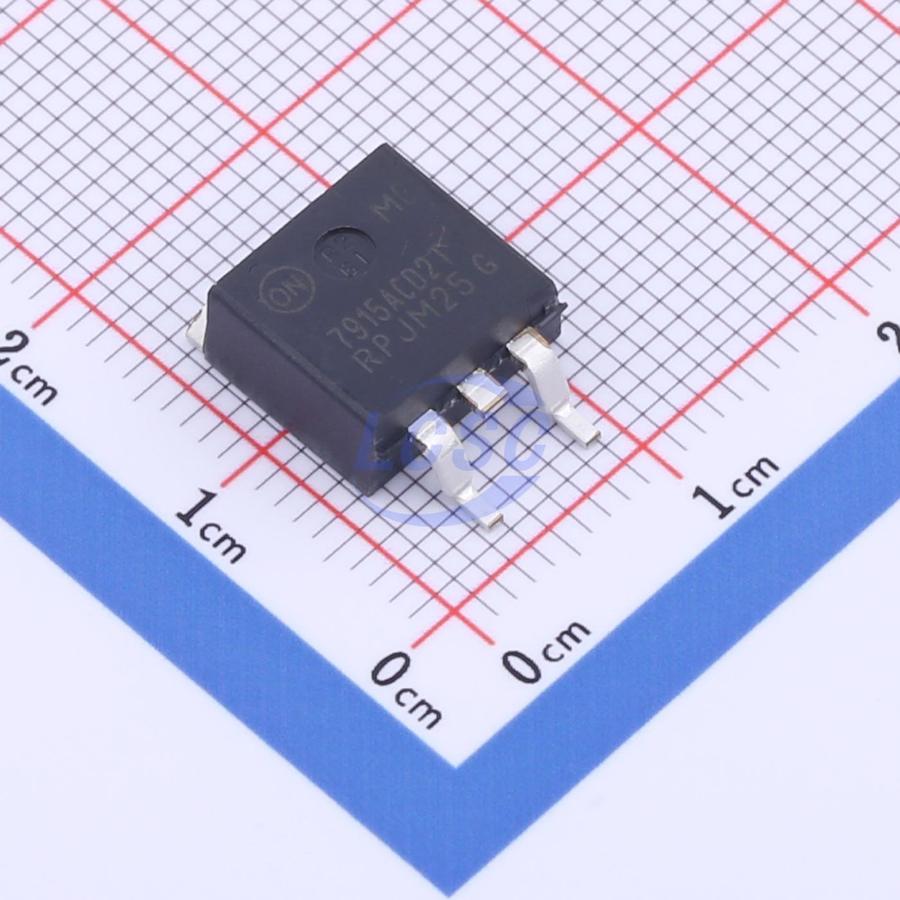

MC7915ACD2TG
15V Negative Fixed TO-263(D2PAK) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-263(D2PAK)ROHS3 CompliantActive
1.0 A Negative Voltage Regulators
- Manufacturer
- onsemi
- Manufacturer part #
- MC7915ACD2TG
- Store part #
- C464027
- Package / case
- TO-263(D2PAK)
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
97 in stock
#C464027
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹176.99 | ₹176.99 |
| 10+ | ₹148.03 | ₹1,480.30 |
| 30+ | ₹132.37 | ₹3,971.10 |
| 100+ | ₹109.94 | ₹10,994.00 |
| 500+ | ₹101.88 | ₹50,940.00 |
| 1,000+ | ₹98.40 | ₹98,400.00 |
1 × ₹176.99
₹176.99
excl. GST
₹208.85 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
MC7915ACD2TG
₹176.99 for 1 + GST
Specifications
- Output Voltage
- 15V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Supply Current (Iq)
- 4.4mA
- Output Configuration
- Negative
- Operating Voltage
- 30V
- Output Current
- 1A
- Features
- Over Current Protection;Thermal shutdown;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.15 g
Overview
The MC7900 series of fixed output negative voltage regulators are intended as complements to the popular MC7800 series devices. These negative regulators are available in the same seven−voltage options as the MC7800 devices. In addition, one extra voltage option commonly employed in MECL systems is also available in the negative MC7900 series. Available in fixed output voltage options from -5.0 V to -24 V, these regulators employ current limiting, thermal shutdown, and safe−area compensation − making them remarkably rugged under most operating conditions. With adequate heatsinking they can deliver output currents in excess of 1.0 A.
Key features
- No External Components Required
- Internal Thermal Overload Protection
- Internal Short Circuit Current Limiting
- Output Transistor Safe−Area Compensation
- Available in 2% Voltage Tolerance (See Ordering Information)
- Pb−Free Package May be Available. The G−Suffix Denotes a Pb−Free Lead Finish
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MC7915CD2TR4G#C153065onsemi · TO-263-2 | onsemi | TO-263-2 | 2,014 | ₹100.28 · 2,014 in stock | View |
 | MC7915BD2TR4G#C35945onsemi · TO-263-2 | onsemi | TO-263-2 | 3,690 | ₹88.97 · 3,690 in stock | View |
 | L7915CD2TKT#C52204661GREENMICRO · TO-263-2 | GREENMICRO | TO-263-2 | 1,150 | ₹35.56 · 1,150 in stock | View |
| LM7915CS2/TR#C41429019HGSEMI · TO-263-2 | HGSEMI | TO-263-2 | 290 | ₹35.14 · 290 in stock | View | |
 | LM2990S-15/NOPB#C2860711TI · DDPAK-3(TO-263-3) | TI | DDPAK-3(TO-263-3) | 9 | ₹675.11 · 9 in stock | View |
