HXY MOSFETDatasheet (PDF)

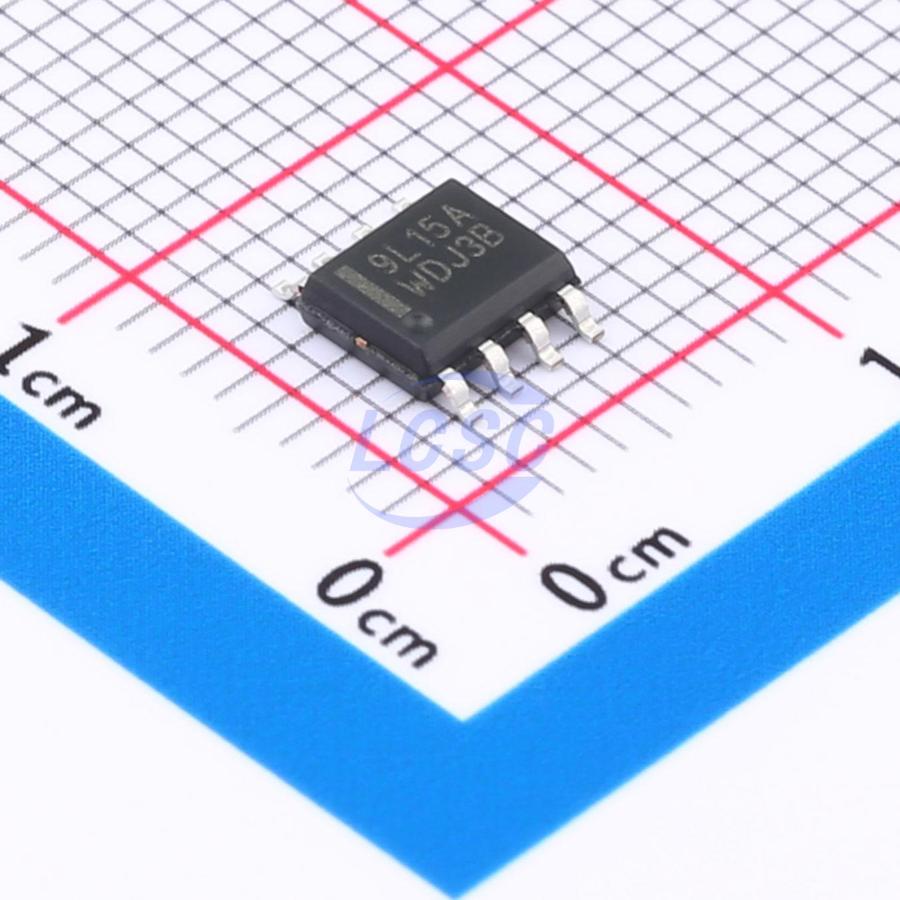

MC79L15ACDR2G-HXY
Negative Fixed SOP-8 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOP-8RoHSActive
Low Dropout Linear Regulator
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- MC79L15ACDR2G-HXY
- Store part #
- C19627002
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
55 in stock
#C19627002
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹30.55 | ₹152.75 |
| 50+ | ₹23.99 | ₹1,199.50 |
| 150+ | ₹21.18 | ₹3,177.00 |
| 500+ | ₹17.66 | ₹8,830.00 |
| 2,500+ | ₹16.10 | ₹40,250.00 |
| 5,000+ | ₹15.16 | ₹75,800.00 |
5 × ₹30.55
₹152.75
excl. GST
₹180.25 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MC79L15ACDR2G-HXY
₹152.75 for 5 + GST
Specifications
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+85℃
- Output Configuration
- Negative
- Output Current
- 100mA
- Operating Voltage
- 30V
- Features
- Thermal shutdown;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.12 g
Overview
This series of fixed-voltage monolithic integrated circuit voltage regulators is designed for a wide range of applications. These applications include on-board regulation to eliminate noise and distribution problems associated with single-point regulation. In addition, they can be used with power-pass elements to form high-current voltage regulators. Each regulator can deliver output currents up to 100mA. Internal current limiting and thermal shutdown features make them essentially immune to overload conditions. When used as a replacement for zener diode-resistor combinations, effective improvements in output impedance and lower quiescent current can be achieved.
Key features
- Three-terminal voltage regulator
- Output current up to 100mA
- No external components required
- Internal thermal overload protection
- Internal short-circuit current limiting
