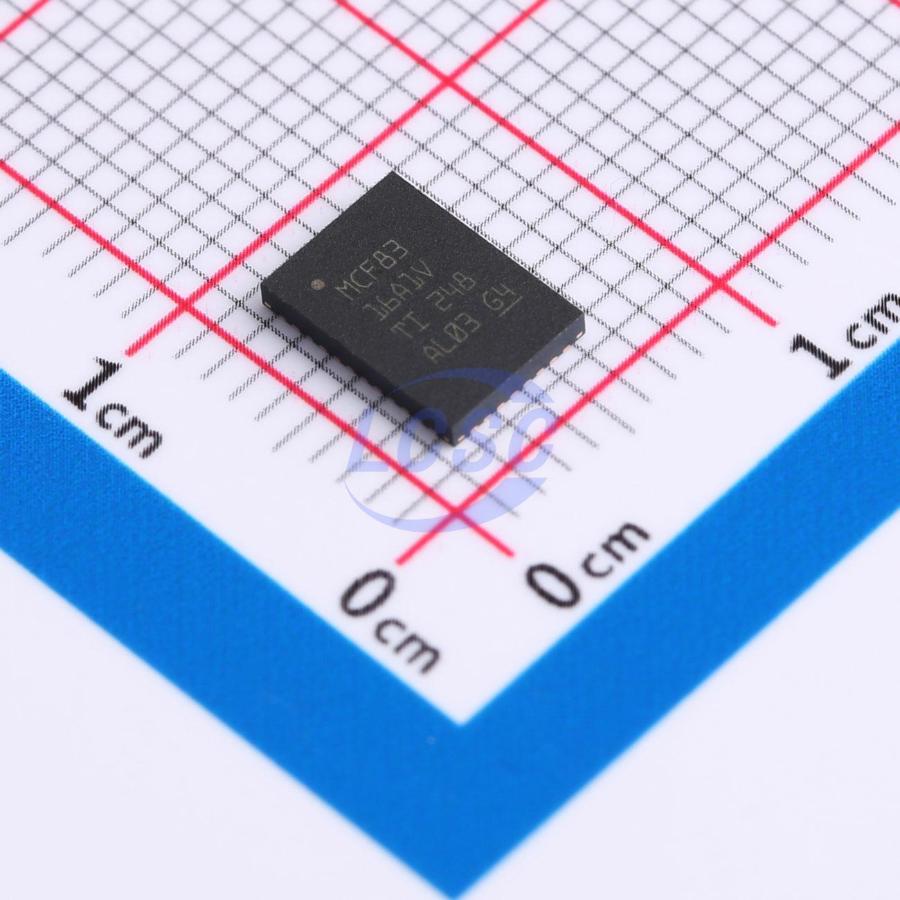

MCF8316A1VRGFR
VQFN-40(5x7) Motor Drivers, Controllers RoHS
VQFN-40(5x7)ROHS CompliantActive
Sensorless Field-Oriented Control (FOC) Integrated FET BLDC Driver
- Manufacturer
- TI
- Manufacturer part #
- MCF8316A1VRGFR
- Store part #
- C3681167
- Package / case
- VQFN-40(5x7)
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
941 in stock
#C3681167
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹443.07 | ₹443.07 |
| 10+ | ₹391.38 | ₹3,913.80 |
| 30+ | ₹365.11 | ₹10,953.30 |
| 100+ | ₹329.70 | ₹32,970.00 |
| 500+ | ₹317.11 | ₹1,58,555.00 |
| 1,000+ | ₹311.67 | ₹3,11,670.00 |
1 × ₹443.07
₹443.07
excl. GST
₹522.82 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MCF8316A1VRGFR
₹443.07 for 1 + GST
Specifications
- Drive Type
- Three Phase
- Features
- Motor stall protection;Motor speed indication
- Technology
- Yes
- Interface
- I2C
- Operating Temperature
- -40℃~+125℃
- Number of Half Bridges
- 3
- Peak Current
- 8A
- RDS(on)
- 95mΩ
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.148 g
Overview
The MCF8316A provides a single-chip codeless sensorless FOC solution for customers driving speed-controlled 12V to 24V BLDC or PMSM motors with peak currents up to 8A. The MCF8316A integrates three 1/2-H bridges with an absolute maximum voltage of 40V and ultra-low RDS(ON) of 95mΩ (high-side + low-side). Power management family with adjustable buck regulator and LDO
Applications
- Brushless DC (BLDC) motor modules
- Residential and living fans
- Air purifier and humidifier fans
- Washing machine and dishwasher pumps
- Automotive fans and blowers
- Medical CPAP blowers
Key features
- Three-phase BLDC motor driver with integrated sensorless motor control algorithm
- Code-free Field-Oriented Control (FOC)
- Offline motor parameter measurement using Motor Parameter Extraction Tool (MPET)
- 5-point configurable speed profile support
- Wind turbine support via forward resynchronization and regenerative braking
- Analog, PWM, frequency, or I2C-based speed input
- Configurable motor start and stop options
- Anti-voltage surge protection against overvoltage
- 4.5V to 35V operating voltage (absolute maximum 40V)
- High output current capability: 8A peak
- Low MOSFET on-state resistance, RDS(ON)(HS + LS) = 95mΩ at TA = 25°C
- Low-power sleep mode, 3μA (maximum) at VVm = 24V, TA = 25°C
- Speed loop accuracy: 3% with internal clock, 1% with external clock reference
- Customer-configurable non-volatile memory (EEPROM) for device configuration storage
- PWM frequency support up to 75kHz for low-inductance motors
- No external current sense resistor required; built-in current sensing
- Integrated 3.3V ±5%, 20mA LDO regulator
- Integrated 3.3V/5V, 170mA buck regulator
- Dedicated DRVOFF pin to disable (Hi-Z) outputs
- Spread spectrum and slew rate control for EMI reduction
- Power supply undervoltage lockout (UVLO)
- Motor lock detection (5 different types)
- Overcurrent protection (OCP)
- Thermal warning and thermal shutdown (OTW/TSD)
- Fault condition indicator pin (nFAULT)
- Optional fault diagnostics via I2C interface
- Capable of generating 3.3V or 5.0V rail for external circuit power supply
- Algorithm configuration storable in non-volatile EEPROM, enabling standalone operation after configuration. The device accepts speed commands via PWM input, analog voltage, variable-frequency square wave, or I2C commands. MCF8316A integrates multiple protection features designed to protect the device, motor, and system during fault events
