VBsemi ElecDatasheet (PDF)

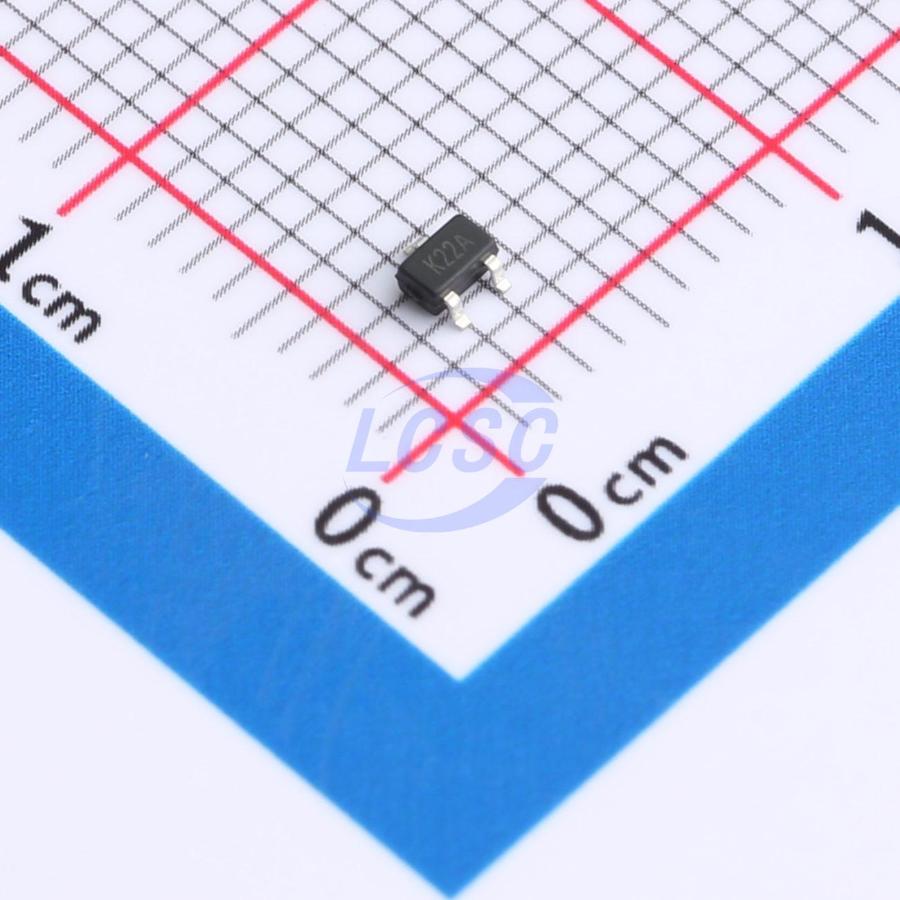

MCH3310-VB
P-Channel 20V 3.1A 500mW Surface Mount SOT-323(SC-70)
SOT-323(SC-70)RoHSActive
MOSFET P-CH 20V 3.1A SOT-323(SC-70)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- MCH3310-VB
- Store part #
- C41370601
- Package / case
- SOT-323(SC-70)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C41370601
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.45 | ₹72.25 |
| 50+ | ₹11.42 | ₹571.00 |
| 150+ | ₹9.91 | ₹1,486.50 |
| 500+ | ₹8.77 | ₹4,385.00 |
| 3,000+ | ₹7.87 | ₹23,610.00 |
| 6,000+ | ₹7.41 | ₹44,460.00 |
5 × ₹14.45
₹72.25
excl. GST
₹85.26 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MCH3310-VB
₹72.25 for 5 + GST
Specifications
- Drain to Source Voltage
- 20V
- Operating Temperature
- -50℃~+150℃
- Output Capacitance(Coss)
- 55pF
- Current - Continuous Drain(Id)
- 3.1A
- Ciss-Input Capacitance
- 272pF
- Pd - Power Dissipation
- 500mW
- Reverse Transfer Capacitance (Crss)
- 44pF
- RDS(on)
- 80mΩ@4.5V;100mΩ@2.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 4.3nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.017 g
Overview
Applications
- Load Switch - DC/DC Converter
Key features
- Compliant with halogen-free requirements as defined by IEC 61249-2-21
- Trench power MOSFET
- 100% gate resistance (Rg) tested
- Compliant with RoHS Directive 2002/95/EC
