MICROCHIP

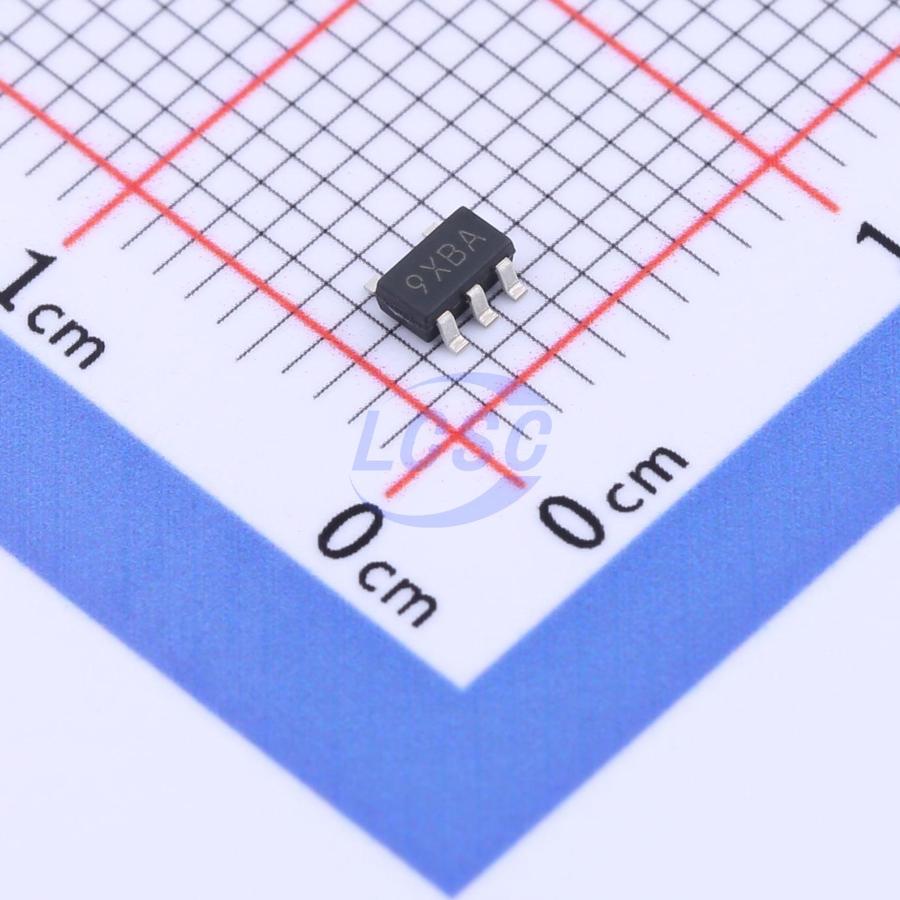

MCP1801T-1202I/OT

1.2V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

SOT-23-5ROHS3 CompliantActive

Manufacturer: MICROCHIP
Manufacturer part #: MCP1801T-1202I/OT
Store part #: C625402
Package / case: SOT-23-5
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

8 in stock

#C625402

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹91.49	₹91.49
10+	₹89.32	₹893.20
30+	₹87.79	₹2,633.70
100+	₹86.27	₹8,627.00

Quantity (min 1)

1 × ₹91.49

₹91.49

excl. GST

₹107.96 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

MCP1801T-1202I/OT

₹91.49 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 1.2V
Number of Outputs: 1
Operating Temperature: -40℃~+85℃
Supply Current (Iq): 50uA
Output Configuration: Positive
Operating Voltage: 10V
Output Current: 150mA
Features: Enable control;Over Current Protection;Short Circuit Protection
Output Type: Fixed

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.26 g

Overview

150 mA Maximum Output Current · Low Dropout Voltage, 200 mV typical @ 100 mA · 25 μA Typical Quiescent Current · 0.01 μA Typical Shutdown Current · Input Operating Voltage Range: 2.0V to 10.0V · Standard Output Voltage Options: 0.9V, 1.2V, 1.8V, 2.5V, 3.0V, 3.3V, 5.0V, 6.0V · Output Voltage Accuracy: ±2% (VR > 1.5V)，±30 mV (VR ≤ 1.5V) · Stable with Ceramic Output Capacitors · Current Limit Protection · Shutdown Pin · High PSRR: 70 dB typically @ 10 kHz

Applications

Battery-powered Devices
Battery-powered Alarm Circuits
Smoke Detectors CO² Detectors
Pagers and Cellular Phones
Wireless Communications Equipment
Smart Battery Packs
Low Quiescent Current Voltage Reference
PDAs
Digital Cameras
Microcontroller Power
Solar-Powered Instruments
Consumer Products
Battery Powered Data Loggers

Key features

150 mA Maximum Output Current
Low Dropout Voltage, 200 mV typical @ 100 mA
25 μA Typical Quiescent Current
0.01 μA Typical Shutdown Current
Input Operating Voltage Range: 2.0V to 10.0V
Standard Output Voltage Options: 0.9V, 1.2V, 1.8V, 2.5V, 3.0V, 3.3V, 5.0V, 6.0V
Output Voltage Accuracy: ±2% (VR > 1.5V)，±30 mV (VR ≤ 1.5V)
Stable with Ceramic Output Capacitors
Current Limit Protection
Shutdown Pin
High PSRR: 70 dB typically @ 10 kHz

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
SPX3819M5-L-1-2/TR#C54988MaxLinear · SOT-23-5	MaxLinear	SOT-23-5	10,963	₹69.39 · 10,963 in stock	View
TPS70912QDBVRQ1#C2873098TI · SOT-23-5	TI	SOT-23-5	10	₹311.41 · 10 in stock	View
TPS70912DBVT#C2861479TI · SOT-23-5	TI	SOT-23-5	90	₹91.83 · 90 in stock	View
LR8323B-T12#C5220842LR · SOT-23-5L	LR	SOT-23-5L	2,120	₹10.82 · 2,120 in stock	View
CJ6330B12M#C17703077JSCJ · SOT-23-5L	JSCJ	SOT-23-5L	1,980	₹15.25 · 1,980 in stock	View
