MICROCHIPDatasheet (PDF)

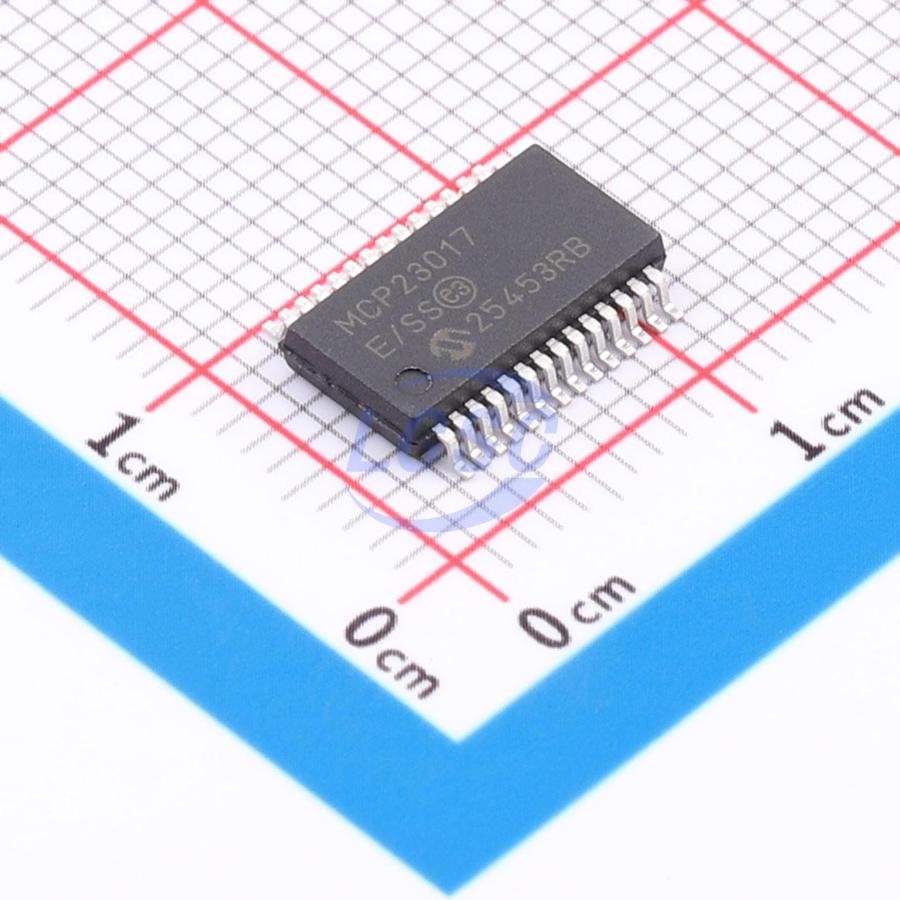

MCP23017T-E/SS
16 I2C SSOP-28 I/O Expanders RoHS
PopularSSOP-28ROHS3 CompliantActive
16-Bit I/O Expander with Serial Interface
- Manufacturer
- MICROCHIP
- Manufacturer part #
- MCP23017T-E/SS
- Store part #
- C558584
- Package / case
- SSOP-28
- Category
- I/O Expanders
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,767 in stock
#C558584
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹216.65 | ₹216.65 |
| 10+ | ₹183.82 | ₹1,838.20 |
| 30+ | ₹163.36 | ₹4,900.80 |
| 100+ | ₹142.26 | ₹14,226.00 |
| 500+ | ₹132.91 | ₹66,455.00 |
| 1,000+ | ₹128.78 | ₹1,28,780.00 |
1 × ₹216.65
₹216.65
excl. GST
₹255.65 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,100 per reel
MCP23017T-E/SS
₹216.65 for 1 + GST
Specifications
- Interrupt Output
- Interrupt Output
- Operating Temperature
- -40℃~+125℃
- Number of I/O
- 16
- Features
- Reset function;Cascade and address expansion
- Voltage - Supply
- 1.8V~5.5V
- Quiescent Supply Current
- 1uA
- Number of Supporting Devices
- 8
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,100 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.551 g
Overview
Key features
- AEC - Q100 Qualified
- 16 - Bit Remote Bidirectional I/O Port (Pins GPA7, GPB7 are output only for MCP23017)
- I/O pins default to input
- High - Speed I/O Interface (MCP23017): 100 kHz - 400 kHz - 1.7 MHz
- High - Speed SPI Interface (MCP23S17): 10 MHz (maximum)
- Three Hardware Address Pins to Allow Up to Eight Devices On the Bus
- Configurable Interrupt Output Pins: Configurable as active - high, active - low or open - drain; INTA and INTB Can Be Configured to Operate Independently or Together
- Configurable Interrupt Source: Interrupt - on - change from configured register defaults or pin changes
- Polarity Inversion Register to Configure the Polarity of the Input Port Data
- External Reset Input
- Low Standby Current: 1μA (max.)
- Operating Voltage: 1.8V to 5.5V at - 40°C to +85°C; 2.7V to 5.5V at - 40°C to +85°C; 4.5V to 5.5V at - 40°C to +125°C
