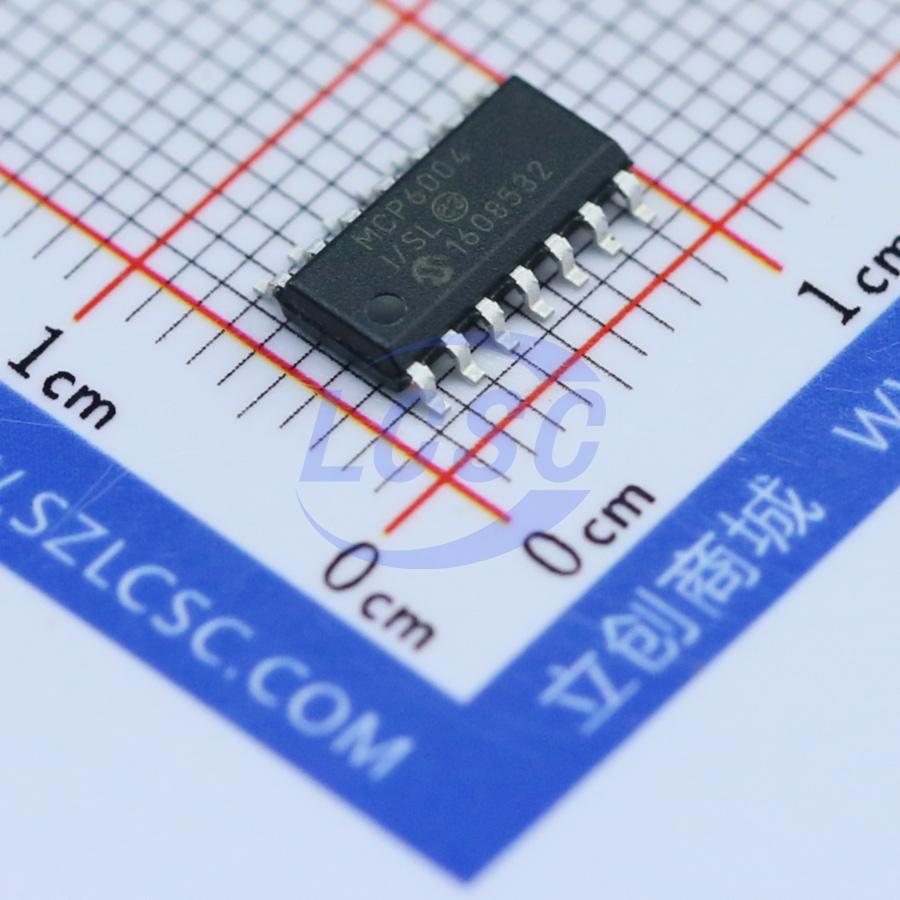

MCP6004T-I/SL

23mA 4 4.5mV 600V/ms 76dB 1pA 1MHz 100uA Rail-to-Rail Input, Rail-to-Rail Output SOIC-14 Instrumentation, Op Amps, Buffer Amps RoHS

SOIC-14ROHS3 CompliantActive

1 MHz, Low-Power Op Amp

Manufacturer: MICROCHIP
Manufacturer part #: MCP6004T-I/SL
Store part #: C7378
Package / case: SOIC-14
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

21,822 in stock

#C7378

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
1+	₹64.46	₹64.46
10+	₹51.00	₹510.00
30+	₹45.15	₹1,354.50
100+	₹37.77	₹3,777.00
500+	₹32.12	₹16,060.00
1,000+	₹30.18	₹30,180.00

Quantity (min 1)

1 × ₹64.46

₹64.46

excl. GST

₹76.06 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,600 per reel

MCP6004T-I/SL

₹64.46 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 23mA
Number of Channels: 4
Vos - Input Offset Voltage: 4.5mV
Slew Rate: 600V/ms
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 76dB
Ib - Input Bias Current: 1pA
Input Offset Voltage Drift(Vos TC): 2uV/℃
Gain Bandwidth Product: 1MHz
Quiescent Current: 100uA
Features: ESD protection
Input Voltage Noise Density: 28nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 1.8V~6V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,600 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.335 g

Overview

The MCP6001/2/4 family of operational amplifiers (op amps) is specifically designed for general-purpose applications. This family has a 1 MHz Gain Bandwidth Product (GBWP) and 90° phase margin (typical). It also maintains 45° phase margin (typical) with a 500 pF capacitive load. This family operates from a single supply voltage as low as 1.8V, while drawing 100 μA (typical) quiescent current. Additionally, the MCP6001/2/4 supports rail-to-rail input and output swing, with a common mode input voltage range of VDD + 300 mV to VSS - 300 mV. This family of op amps is designed with advanced CMOS process. The MCP6001/2/4 family is available in the industrial and extended temperature ranges, with a power supply range of 1.8V to 6.0V.

Applications

Automotive
Portable Equipment
Photodiode Amplifier
Analog Filters
Notebooks and PDAs
Battery-Powered Systems

Key features

Available in SC-70-5 and SOT-23-5 packages
Gain Bandwidth Product: 1 MHz (typical)
Rail-to-Rail Input/Output
Supply Voltage: 1.8V to 6.0V
Supply Current: IQ = 100 μA (typical)
Phase Margin: 90° (typical)
Temperature Range: - Industrial: -40°C to +85°C; Extended: -40°C to +125°C
Available in Single, Dual and Quad Packages

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
MCP6004T-E/SL(UMW)#C32713109UMW · SOP-14	UMW	SOP-14	8,330	₹24.58 · 8,330 in stock	View
MCP6004-E/SL#C498113MICROCHIP · SOP-14	MICROCHIP	SOP-14	114	₹104.20 · 114 in stock	View
MCP6004T-I/SL(UMW)#C32713108UMW · SOP-14	UMW	SOP-14	5,730	₹23.30 · 5,730 in stock	View
MCP6004T-E/SL#C116668MICROCHIP · SOIC-14	MICROCHIP	SOIC-14	32	₹156.56 · 32 in stock	View
HT6004BRZ#C2960974HTCSEMI · SOP-14	HTCSEMI	SOP-14	190	₹65.86 · 190 in stock	View
