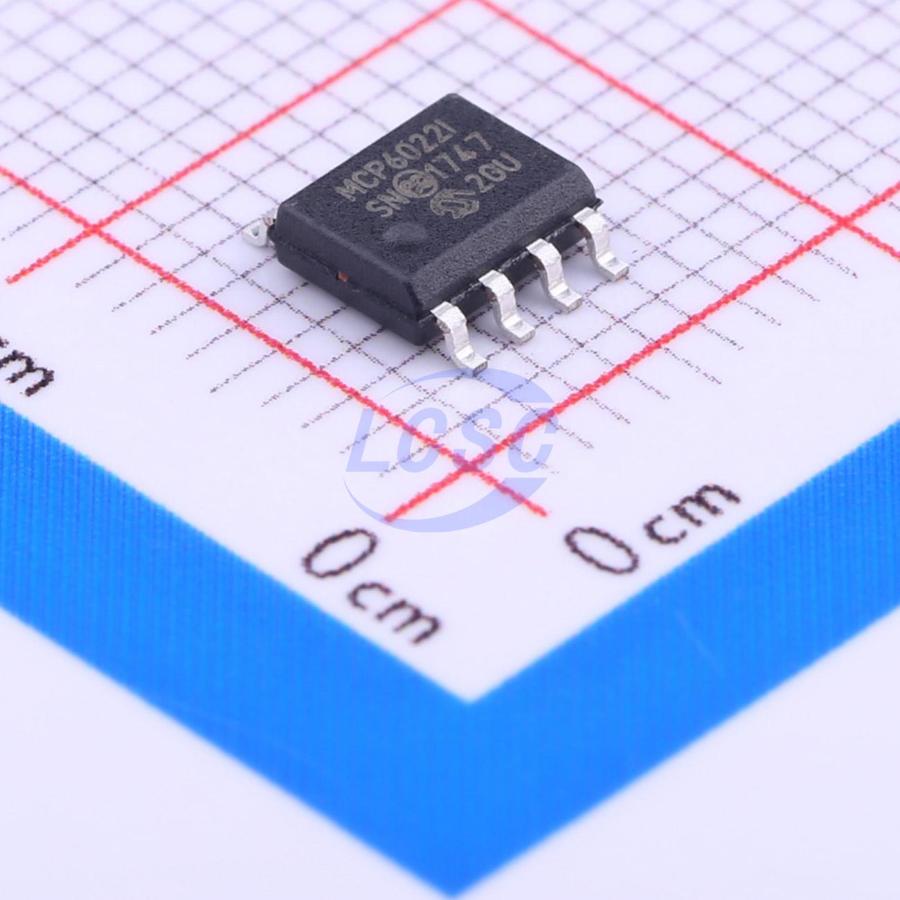

MCP6022-I/SN

30mA 2 500uV 7V/us 90dB 1pA 1mA 10MHz Rail-to-Rail Input, Rail-to-Rail Output SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS

SOIC-8ROHS3 CompliantActive

Rail-to-Rail Input/Output, 10 MHz Op Amps

Manufacturer: MICROCHIP
Manufacturer part #: MCP6022-I/SN
Store part #: C34047
Package / case: SOIC-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

Out of stock

#C34047

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
1+	₹181.05	₹181.05
10+	₹148.28	₹1,482.80
30+	₹130.26	₹3,907.80
100+	₹109.85	₹10,985.00
500+	₹100.73	₹50,365.00
1,000+	₹96.83	₹96,830.00

Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 100 per tube

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 30mA
Number of Channels: 2
Vos - Input Offset Voltage: 500uV
Slew Rate: 7V/us
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 90dB
Ib - Input Bias Current: 1pA
Input Offset Voltage Drift(Vos TC): 3.5uV/℃
Quiescent Current: 1mA
Gain Bandwidth Product: 10MHz
Features: Built-in compensation
Input Voltage Noise Density: 8.7nV/√Hz@10kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.5V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tube-packed
Standard pack: 100 / Tube
Sold per: Piece
Minimum order: 1
Unit weight: 0.169 g

Overview

The MCP6021, MCP6021R, MCP6022, MCP6023 and MCP6024 are rail-to-rail input and output operational amplifiers with high performance. Key specifications include: wide bandwidth (10 MHz), low noise (8.7 nV/√Hz), low input offset voltage and low distortion (0.00053% THD+N). The MCP6023 also offers a Chip Select pin (CS) that gives power savings when the part is not in use. The single MCP6021 and MCP6021R are available in SOT-23-5 packages. The single MCP6021, single MCP6023 and dual MCP6022 are available in 8-lead PDIP, SOIC and TSSOP packages. The Extended Temperature single MCP6021 is available in 8-lead MSOP. The quad MCP6024 is offered in 14-lead PDIP, SOIC and TSSOP packages. The MCP6021/1R/2/3/4 family is available in Industrial and Extended temperature ranges. It has a power supply range of 2.5V to 5.5V.

Applications

Automotive
Multi-Pole Active Filters
Audio Processing
DAC Buffer
Test Equipment
Medical Instrumentation

Key features

Rail-to-Rail Input/Output
Wide Bandwidth: 10 MHz (typical)
Low Noise: 8.7 nV/√Hz at 10 kHz (typical)
Low Offset Voltage:
Industrial Temperature: ±500 µV (max.)
Extended Temperature: ±250 µV (max.)
Mid-Supply VREF: MCP6021 and MCP6023
Low Supply Current: 1 mA (typical)
Total Harmonic Distortion: - 0.00053% (typical, G = 1 V/V)
Unity Gain Stable
Power Supply Range: 2.5V to 5.5V
Temperature Range:
Industrial: - 40℃ to +85℃
Extended: - 40℃ to +125℃
AEC-Q100 Qualified

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
MCP6022T-I/SN#C57639MICROCHIP · SOIC-8	MICROCHIP	SOIC-8	14,087	₹141.84 · 14,087 in stock	View
MCP6022T-E/SN#C623664MICROCHIP · SOIC-8	MICROCHIP	SOIC-8	1,861	₹195.79 · 1,861 in stock	View
COS6022SR#C18198084COSINE · SOP-8	COSINE	SOP-8	175	₹20.20 · 175 in stock	View
COS722SR#C693063COSINE · SOIC-8	COSINE	SOIC-8	10,310	₹23.03 · 10,310 in stock	View
MCP6292-E/SN#C556929MICROCHIP · SOIC-8	MICROCHIP	SOIC-8	38	₹195.53 · 38 in stock	View
