MICROCHIPDatasheet (PDF)

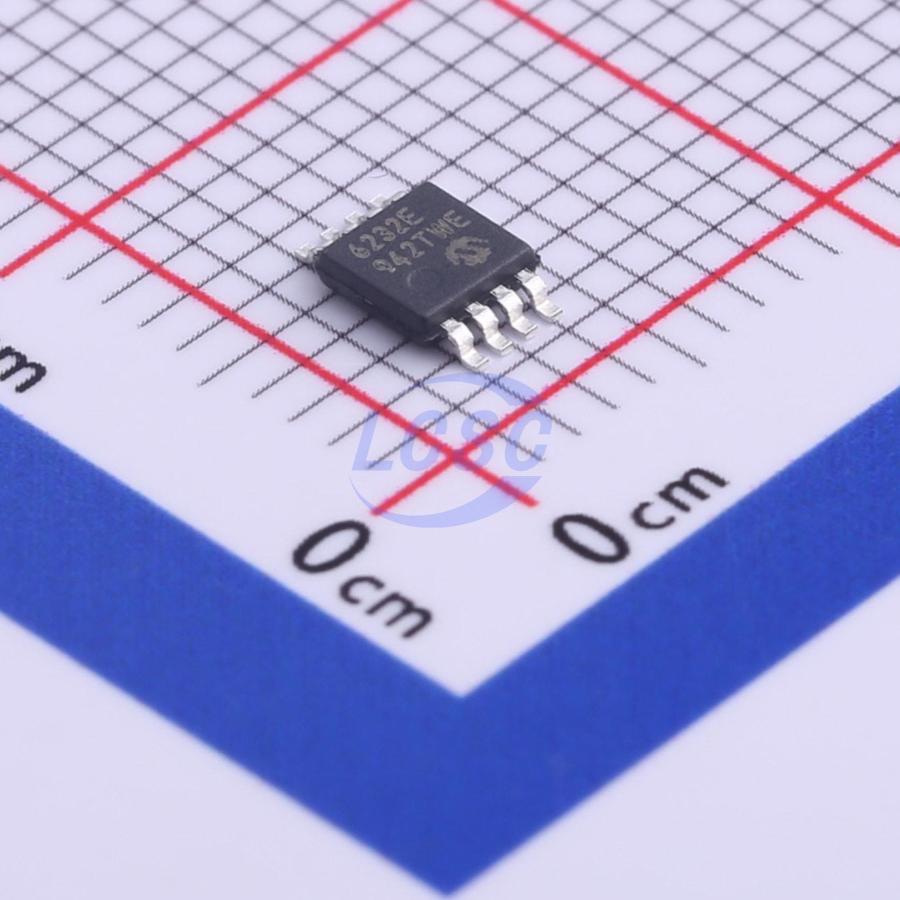

MCP6232T-E/MS
23mA 2 5mV 150V/ms 75dB 1pA 20uA Rail-to-Rail Input, Rail-to-Rail Output MSOP-8 Instrumentation, Op Amps, Buffer Amps RoHS
MSOP-8ROHS3 CompliantActive
- Manufacturer
- MICROCHIP
- Manufacturer part #
- MCP6232T-E/MS
- Store part #
- C512191
- Package / case
- MSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,678 in stock
#C512191
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹108.55 | ₹108.55 |
| 10+ | ₹88.32 | ₹883.20 |
| 30+ | ₹78.10 | ₹2,343.00 |
| 100+ | ₹68.09 | ₹6,809.00 |
| 500+ | ₹62.00 | ₹31,000.00 |
| 1,000+ | ₹58.95 | ₹58,950.00 |
1 × ₹108.55
₹108.55
excl. GST
₹128.09 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MCP6232T-E/MS
₹108.55 for 1 + GST
Specifications
- Output Current
- 23mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 5mV
- Slew Rate
- 150V/ms
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 75dB
- Ib - Input Bias Current
- 1pA
- Input Offset Voltage Drift(Vos TC)
- 3uV/℃
- Quiescent Current
- 20uA
- Features
- ESD protection
- Input Voltage Noise Density
- 52nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 1.8V~6V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.062 g
Overview
The MCP6231/1R/1U/2/4 operational amplifiers (op amps) provide wide bandwidth for the quiescent current. The MCP6231/1R/1U/2/4 family has a 300 kHz gain bandwidth product and 65°C (typical) phase margin. This family operates from a single supply voltage as low as 1.8V while drawing 20 µA (typical) quiescent current. In addition, the MCP6231/1R/1U/2/4 family supports rail-to-rail input and output swing, with a Common-mode input voltage range of VDD + 300 mV to VSS - 300 mV. These op amps are designed in an advanced CMOS processes.
Applications
- Automotive
- Portable Equipment
- Transimpedance Amplifiers
- Analog Filters
- Notebooks and PDAs
- Battery-Powered Systems
Key features
- Gain Bandwidth Product: 300 kHz (typical)
- Supply Current: IQ = 20 µA (typical)
- Supply Voltage: 1.8V to 6.0V
- Rail-to-Rail Input/Output
- Extended Temperature Range: -40°C to +125°C
- Available in 5-Pin SC70 and SOT-23 packages
