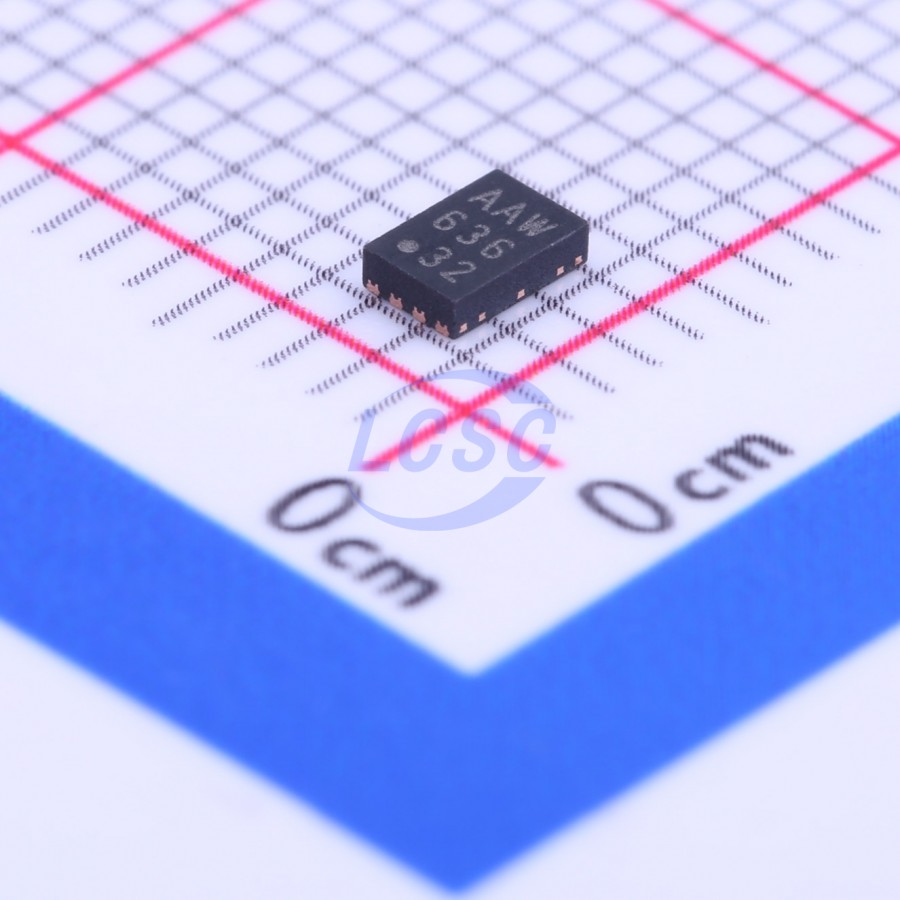

MCP6402T-E/MNY

15mA 2 800uV 500V/ms 71dB 1pA 45uA 1MHz Rail-to-Rail Input, Rail-to-Rail Output TDFN-8-EP(2x3) Instrumentation, Op Amps, Buffer Amps RoHS

TDFN-8-EP(2x3)ROHS3 CompliantActive

1 MHz, Op Amps

Manufacturer: MICROCHIP
Manufacturer part #: MCP6402T-E/MNY
Store part #: C145559
Package / case: TDFN-8-EP(2x3)
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,706 in stock

#C145559

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
1+	₹124.22	₹124.22
10+	₹99.41	₹994.10
30+	₹87.01	₹2,610.30
100+	₹74.83	₹7,483.00
500+	₹69.18	₹34,590.00
1,000+	₹65.26	₹65,260.00

Quantity (min 1)

1 × ₹124.22

₹124.22

excl. GST

₹146.58 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,300 per reel

MCP6402T-E/MNY

₹124.22 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 15mA
Number of Channels: 2
Vos - Input Offset Voltage: 800uV
Slew Rate: 500V/ms
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 71dB
Ib - Input Bias Current: 1pA
Input Offset Voltage Drift(Vos TC): 2uV/℃
Quiescent Current: 45uA
Gain Bandwidth Product: 1MHz
Features: Built-in compensation
Input Voltage Noise Density: 28nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 1.8V~6V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,300 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.167 g

Overview

The MCP6401/1R/1U/2/4/6/7/9 family of operational amplifiers (op amps) has low quiescent current (45 μA typical) and rail-to-rail input and output operation. This family is unity gain stable and has a gain bandwidth product of 1 MHz (typical). These devices operate with a power supply voltage of 1.8V to 6.0V. These features make the family of op amps well suited for single-supply, battery-powered applications. The MCP6401/1R/1U/2/4/6/7/9 family is designed with advanced CMOS process and offered in single, dual and quad packages. The devices are available in two extended temperature ranges (E temp and H temp) with different package types, which makes them well-suited for automotive and industrial applications.

Applications

Portable Equipment
Battery Powered System
Medical Instrumentation
Automotive Electronics
Data Acquisition Equipment
Sensor Conditioning
Analog Active Filters

Key features

Low Quiescent Current: 45 μA (typical)
Gain Bandwidth Product: 1 MHz (typical)
Rail-to-Rail Input and Output
Supply Voltage Range: 1.8V to 6.0V
Unity Gain Stable
Extended Temperature Ranges: -40°C to +125°C (E temp), -40°C to +150°C (H temp)
No Phase Reversal
