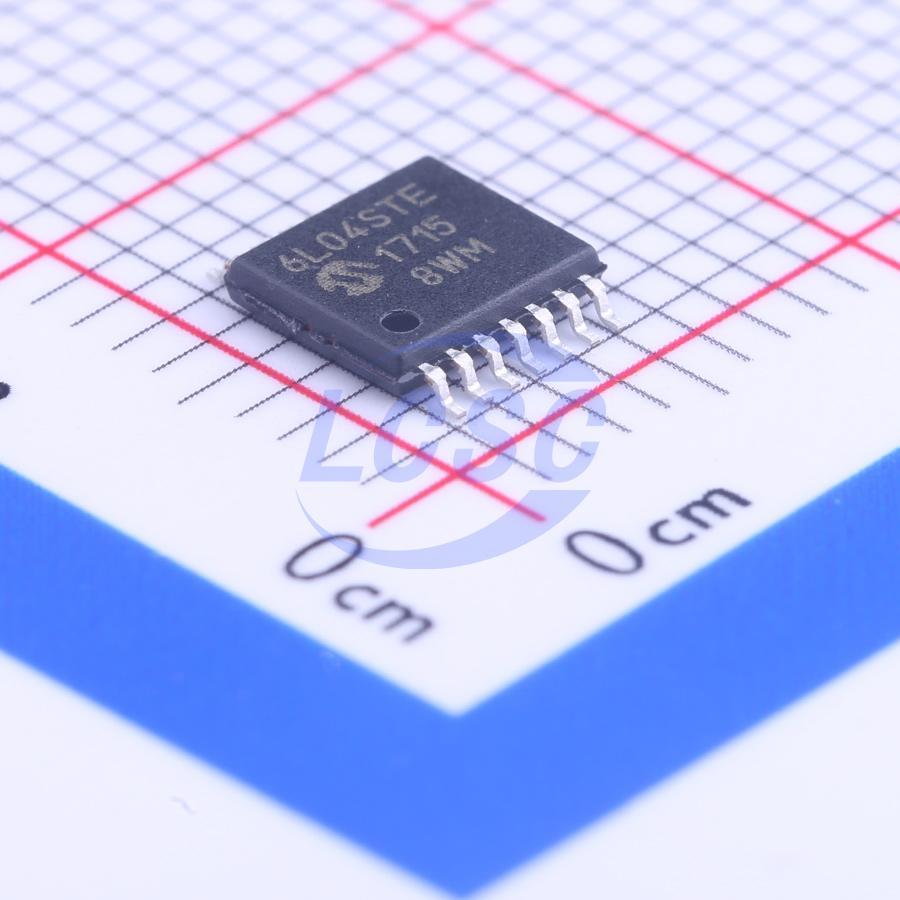

MCP6L04T-E/ST

20mA 4 5mV 600V/ms 78dB 2pA 1MHz 85uA Rail-to-Rail Input, Rail-to-Rail Output TSSOP-14 Instrumentation, Op Amps, Buffer Amps RoHS

TSSOP-14ROHS3 CompliantActive

1 MHz, 85 μA Op Amps

Manufacturer: MICROCHIP
Manufacturer part #: MCP6L04T-E/ST
Store part #: C49038
Package / case: TSSOP-14
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,294 in stock

#C49038

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
1+	₹69.39	₹69.39
10+	₹55.26	₹552.60
30+	₹49.16	₹1,474.80
100+	₹41.56	₹4,156.00
500+	₹38.08	₹19,040.00
1,000+	₹36.12	₹36,120.00

Quantity (min 1)

1 × ₹69.39

₹69.39

excl. GST

₹81.88 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

MCP6L04T-E/ST

₹69.39 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 20mA
Number of Channels: 4
Vos - Input Offset Voltage: 5mV
Slew Rate: 600V/ms
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 78dB
Ib - Input Bias Current: 2pA
Input Offset Voltage Drift(Vos TC): 2uV/℃
Gain Bandwidth Product: 1MHz
Quiescent Current: 85uA
Input Voltage Noise Density: 24nV/√Hz@10kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 1.8V~6V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.249 g

Overview

The MCP6L01/1R/1U/2/4 family of operational amplifiers (op amps) supports general purpose applications. The combination of rail-to-rail input and output, low quiescent current and bandwidth fit into many applications. This family has a 1 MHz Gain Bandwidth Product (GBWP) and a low 85 µA per amplifier quiescent current. These op amps operate on supply voltages between 1.8V and 6.0V, with rail-to-rail input and output swing. They are available in the extended temperature range.

Applications

Portable Equipment
Photodiode Amplifier
Analog Filters
Notebooks and PDAs
Battery-Powered Systems

Key features

Available in SC70 and SOT-23 Packages
Gain Bandwidth Product: 1 MHz (typical)
Rail-to-Rail Input/Output
Supply Voltage: 1.8V to 6.0V
Supply Current: IQ = 85 µA/Amplifier (typical)
Extended Temperature Range: -40°C to +125°C
Available in Single, Dual and Quad Packages

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
TPMCP6004T-I/ST#C42370472TECH PUBLIC · TSSOP-14	TECH PUBLIC	TSSOP-14	2,590	₹22.37 · 2,590 in stock	View
MCP6004T-E/ST(UMW)#C32713111UMW · TSSOP-14	UMW	TSSOP-14	11,945	₹22.37 · 11,945 in stock	View
MCP6004T-E/ST#C627416MICROCHIP · TSSOP-14	MICROCHIP	TSSOP-14	4,302	₹77.85 · 4,302 in stock	View
MCP6004-E/ST#C637137MICROCHIP · TSSOP-14	MICROCHIP	TSSOP-14	49	₹97.94 · 49 in stock	View
MCP6004-I/ST#C185811MICROCHIP · TSSOP-14	MICROCHIP	TSSOP-14	30	₹119.68 · 30 in stock	View
