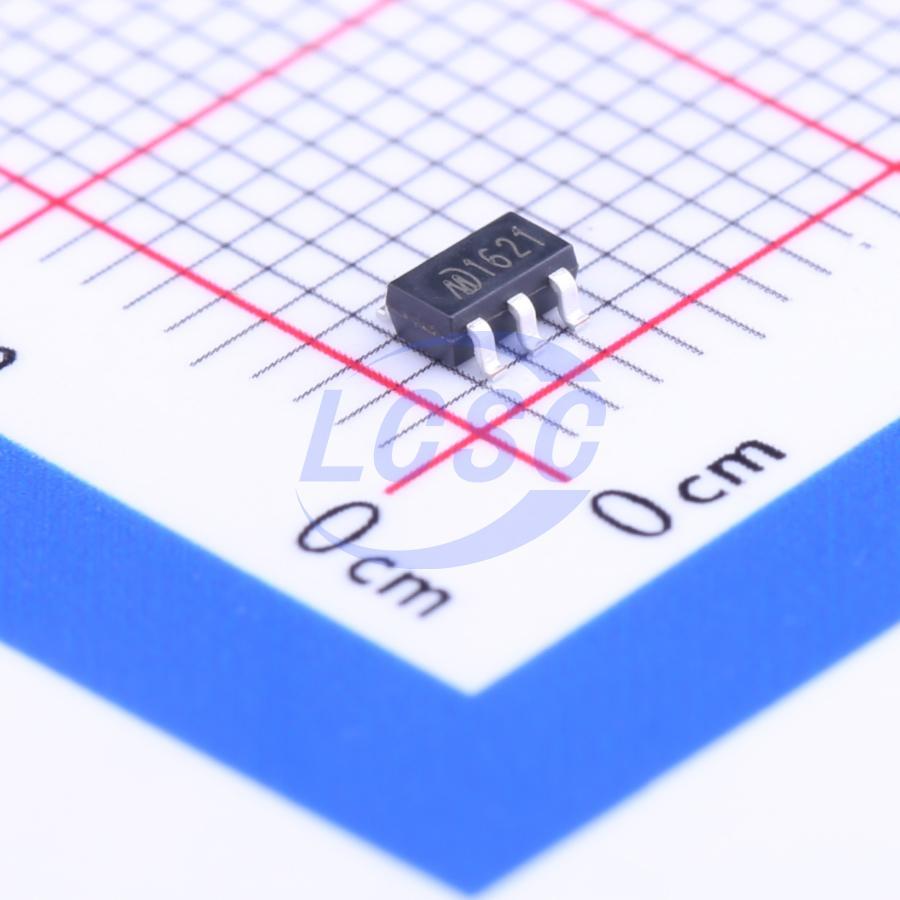

MD1621

40mA 1 800uV 1.74V/us 76dB 10pA 200uA 3MHz Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps

SOT-23-5RoHSActive

3MHz, 200μA, Rail-to-Rail I/O CMOS Operational Amplifiers

Manufacturer: Mingda Microelectronics
Manufacturer part #: MD1621
Store part #: C126981
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,835 in stock

#C126981

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹15.39	₹76.95
50+	₹12.17	₹608.50
150+	₹10.57	₹1,585.50
500+	₹9.37	₹4,685.00
3,000+	₹8.35	₹25,050.00
6,000+	₹7.87	₹47,220.00

Quantity (min 5, multiples of 5)

5 × ₹15.39

₹76.95

excl. GST

₹90.80 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

MD1621

₹76.95 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 40mA
Number of Channels: 1
Vos - Input Offset Voltage: 800uV
Slew Rate: 1.74V/us
Input Offset Current(Ios): 10pA
Operating Temperature: -40℃~+85℃
Common Mode Rejection Ratio(CMRR): 76dB
Ib - Input Bias Current: 10pA
Input Offset Voltage Drift(Vos TC): 2uV/℃
Quiescent Current: 200uA
Gain Bandwidth Product: 3MHz
Features: Built-in compensation
Input Voltage Noise Density: 12nV/√Hz@1kHz
Dual Supply: -2.75V~-1.05V;1.05V~2.75V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.1V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.042 g
