Mingda MicroelectronicsDatasheet (PDF)

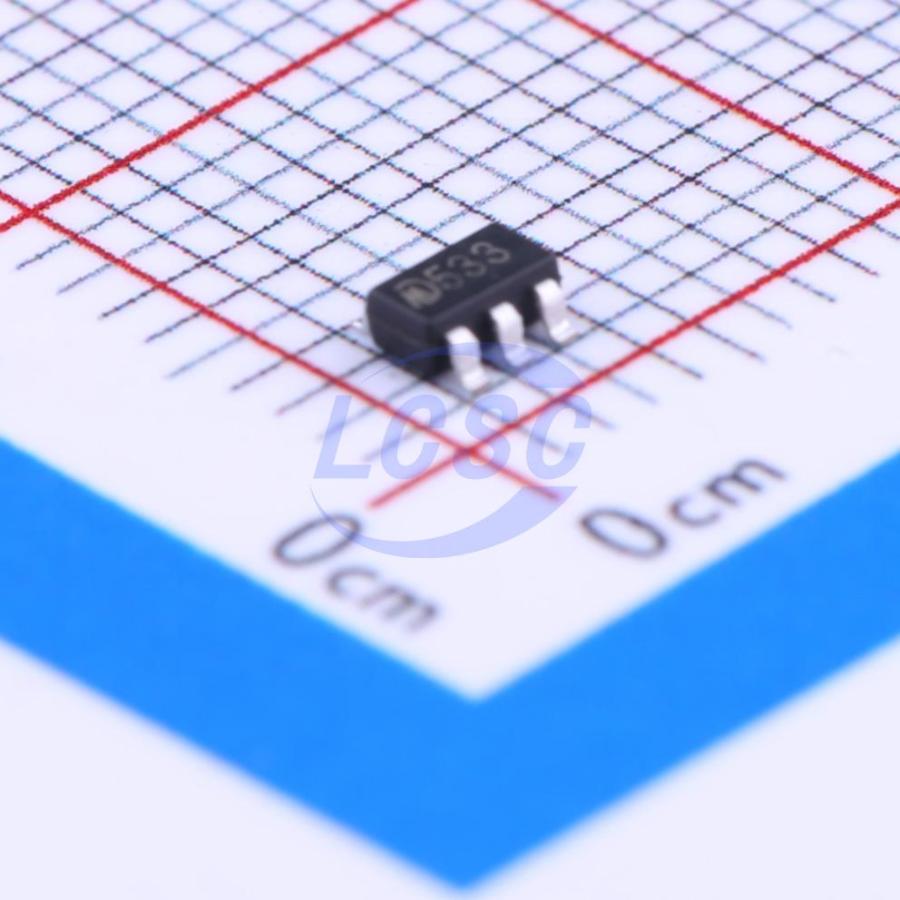

MD53R33
Linear Voltage Regulator IC Positive Fixed 1 Output 500mA SOT-23-5
SOT-23-5RoHSActive
High-speed low-dropout (LDO) CMOS voltage regulator circuit (with control terminal), 500mA
- Manufacturer
- Mingda Microelectronics
- Manufacturer part #
- MD53R33
- Store part #
- C111685
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
895 in stock
#C111685
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.23 | ₹91.15 |
| 50+ | ₹14.53 | ₹726.50 |
| 150+ | ₹12.67 | ₹1,900.50 |
| 500+ | ₹11.29 | ₹5,645.00 |
| 3,000+ | ₹10.17 | ₹30,510.00 |
| 6,000+ | ₹9.62 | ₹57,720.00 |
5 × ₹18.23
₹91.15
excl. GST
₹107.56 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MD53R33
₹91.15 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 100nA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 10V
- Features
- Enable control;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.042 g
Overview
The MD53RXX series is a low-dropout, high-accuracy output voltage, low quiescent current, high ripple rejection, positive voltage regulator developed using CMOS technology. Due to the built-in low on-resistance transistor, the input-output voltage differential is low. The maximum operating voltage reaches 10V, making it suitable for applications requiring higher voltage tolerance.
Applications
- Regulated power supply for battery-powered devices
- Regulated power supply for communication equipment
- Regulated power supply for home appliances and toys
- Regulated power supply for mobile phones
- Regulated power supply for portable medical instruments
Key features
- High output voltage accuracy
- Low dropout voltage
- Ultra-low quiescent current
- Low output voltage temperature drift
- Input voltage tolerance
- Output short-circuit protection
- High ripple rejection ratio
