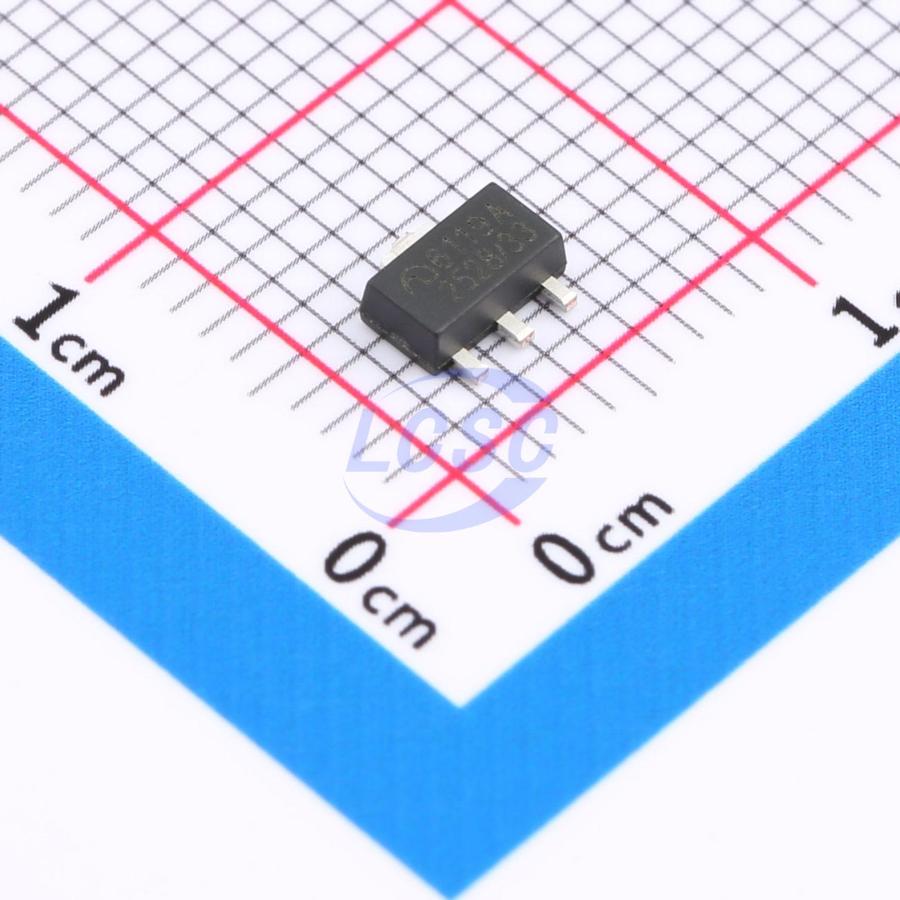

ME6119A33PG

Linear Voltage Regulator IC Positive Fixed 1 Output 400mA SOT-89-3

SOT-89-3RoHSActive

400mA Adjustable Voltage High Speed LDO Regulators

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,445 in stock

#C82566

Stock & price checked 3 days ago

Quantity (min 5, multiples of 5)

5 × ₹11.02

₹55.10

excl. GST

₹65.02 incl. 18% GST

ME6119A33PG

₹55.10 for 5 + GST

Specifications

Output Voltage: 3.3V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃
Supply Current (Iq): 60uA
Output Configuration: Positive
Operating Voltage: 18V
Output Current: 400mA
Features: Enable control;Short Circuit Protection;Over Current Protection;Thermal shutdown
Output Type: Fixed

The ME6119 series are highly accurate, low noise, LDO Voltage Regulators.
On chip trimming adjusts the reference/output voltage to within ±2% accuracy.
Internal protection features consist of output current limiting, safe operating area compensation, and thermal shutdown.
The current limiter’s feedback circuit also operates as a short protect for the output current limiter and the output pin.
The CE function allows the output of regulator to be turned off, resulting in greatly reduced power consumption.
The ME6119 series can operate with up to 18V input.
Maximum Output Current: 400mA
Dropout Voltage: 104mV@ IOUT = 100mA
Operating Voltage Range: 2.5V~18V
Highly Accuracy: ±2% Adjustable Output Voltage Option
Standby Current: 60uA（TYP.）
Line Regulation: 30mV（TYP.）
Temperature Stability ≲0.5%
Thermal Shutdown Protection: 164°C

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
ME6118A33PG#C236721MICRONE · SOT-89-3	MICRONE	SOT-89-3	25,955	₹13.49 · 25,955 in stock	View
ME6231A33PG#C2681684MICRONE · SOT-89-3	MICRONE	SOT-89-3	33,950	₹12.79 · 33,950 in stock	View
ME6210A33PG#C85233MICRONE · SOT-89	MICRONE	SOT-89	31,870	₹10.93 · 31,870 in stock	View
ME6118H33PG#C2683411MICRONE · SOT-89-3	MICRONE	SOT-89-3	On request	₹7.96 · 0 in stock	View
