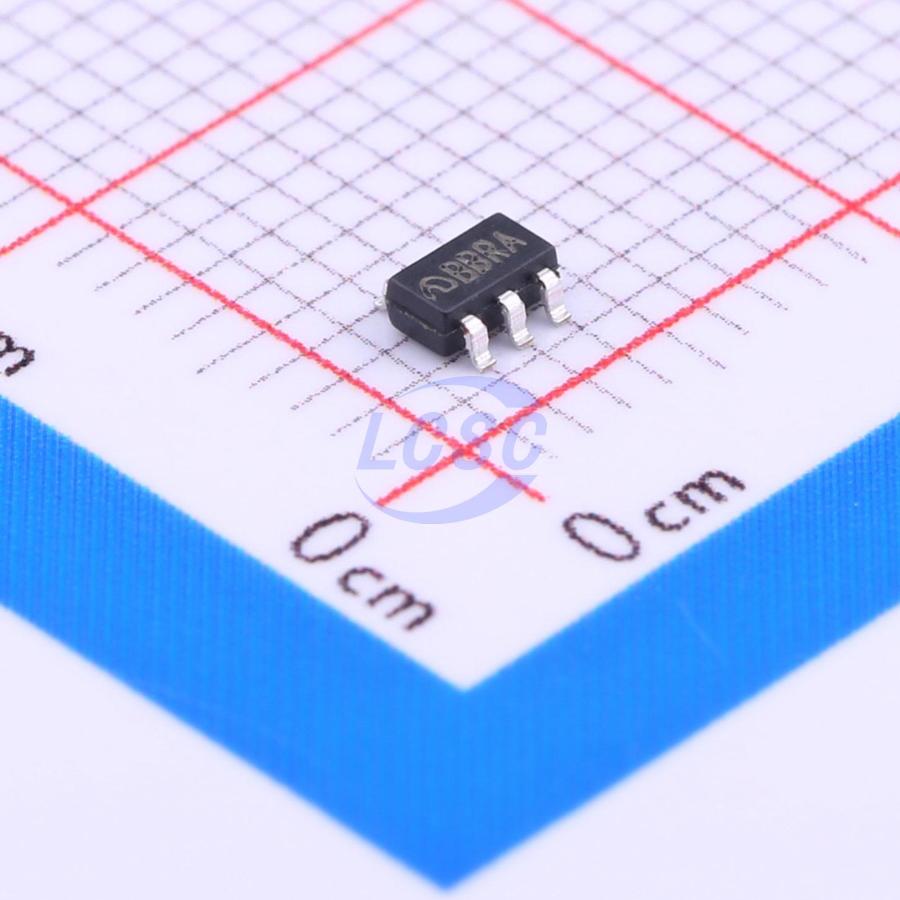

ME6119C33M5G
Linear Voltage Regulator IC Positive Fixed 1 Output 400mA SOT-23-5
SOT-23-5RoHSActive
400mA Adjustable Voltage High Speed LDO Regulators
- Manufacturer
- MICRONE
- Manufacturer part #
- ME6119C33M5G
- Store part #
- C81100
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
34,010 in stock
#C81100
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.23 | ₹66.15 |
| 50+ | ₹10.41 | ₹520.50 |
| 150+ | ₹9.01 | ₹1,351.50 |
| 500+ | ₹7.96 | ₹3,980.00 |
| 3,000+ | ₹6.76 | ₹20,280.00 |
| 6,000+ | ₹6.34 | ₹38,040.00 |
5 × ₹13.23
₹66.15
excl. GST
₹78.06 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ME6119C33M5G
₹66.15 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 60uA
- Output Configuration
- Positive
- Operating Voltage
- 18V
- Output Current
- 400mA
- Features
- Enable control;Short Circuit Protection;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.042 g
Overview
Applications
- Consumer and Industrial Equipment Point of Regulation
- Switching Power Supply Post Regulation
- Hard Drive Controllers
Key features
- The ME6119 series are highly accurate, low noise, LDO Voltage Regulators.
- On chip trimming adjusts the reference/output voltage to within ±2% accuracy.
- Internal protection features consist of output current limiting, safe operating area compensation, and thermal shutdown.
- The current limiter’s feedback circuit also operates as a short protect for the output current limiter and the output pin.
- The CE function allows the output of regulator to be turned off, resulting in greatly reduced power consumption.
- The ME6119 series can operate with up to 18V input.
- Maximum Output Current: 400mA
- Dropout Voltage: 104mV@ IOUT = 100mA
- Operating Voltage Range: 2.5V~18V
- Highly Accuracy: ±2% Adjustable Output Voltage Option
- Standby Current: 60uA（TYP.）
- Line Regulation: 30mV（TYP.）
- Temperature Stability ≲0.5%
- Thermal Shutdown Protection：164°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ME6231C33M5G#C610253MICRONE · SOT-23-5 | MICRONE | SOT-23-5 | 34,770 | ₹10.07 · 34,770 in stock | View |
