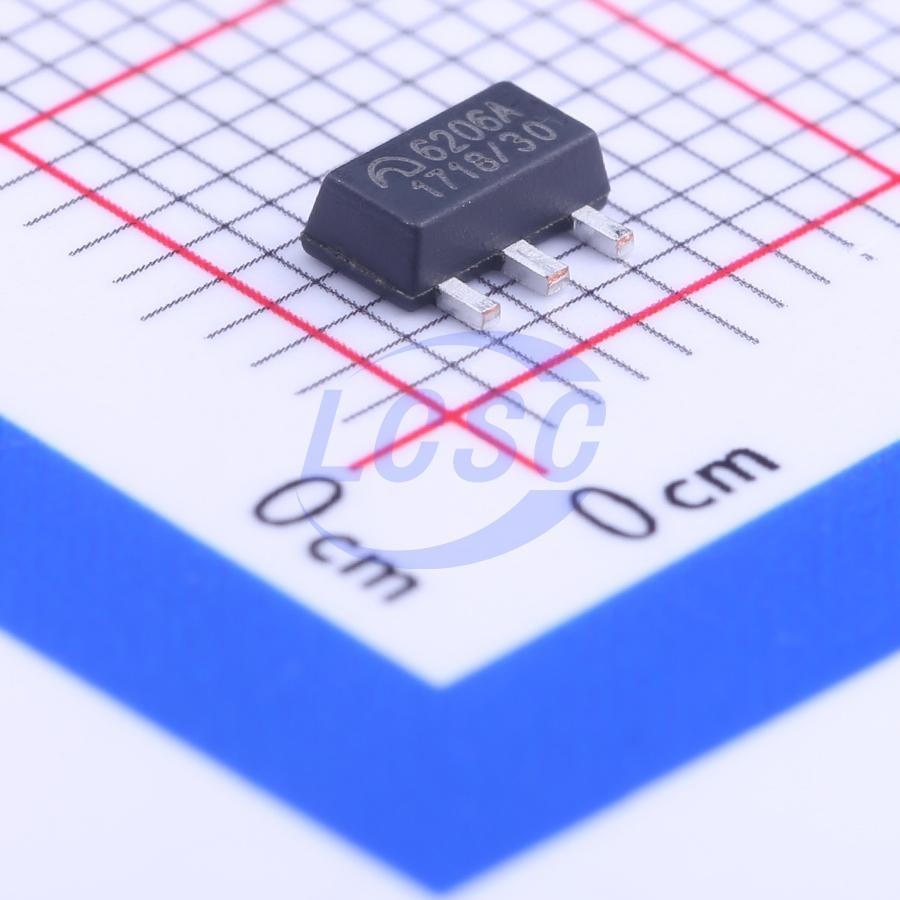

ME6206A30PG
3V Positive Fixed SOT-89 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-89RoHSActive
Low power consumption, Low ESR Cap. Compatible Voltage Regulators
- Manufacturer
- MICRONE
- Manufacturer part #
- ME6206A30PG
- Store part #
- C82446
- Package / case
- SOT-89
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,380 in stock
#C82446
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.44 | ₹74.40 |
| 100+ | ₹5.81 | ₹581.00 |
| 300+ | ₹4.99 | ₹1,497.00 |
| 1,000+ | ₹4.38 | ₹4,380.00 |
| 5,000+ | ₹3.89 | ₹19,450.00 |
| 10,000+ | ₹3.64 | ₹36,400.00 |
10 × ₹7.44
₹74.40
excl. GST
₹87.79 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
ME6206A30PG
₹74.40 for 10 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+125℃
- Supply Current (Iq)
- 8uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 6V
- Features
- Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.132 g
Overview
ME6206 series are highly precise, low power consumption, high voltage, positive voltage regulators manufactured using CMOS and laser trimming technologies. The series provides large currents with a significantly small dropout voltage. The series is compatible with low ESR ceramic capacitors. The current limiter’s foldback circuit also operates as a short protect for the output current limiter and the output pin.
Applications
- Battery powered equipment
- Communication tools
- Mobile phones
- Portable games
- Portable AV systems
- Cameras, Video systems
- Reference voltage sources
Key features
- Highly Accurate： ±2% Output voltage range： 1.5V~5.0V ( selectable in 0.1V steps)
- Low power consumption：8uA(TYP.)
- Large output current：300mA (VIN=4.3V,VOUT=3.3V)
- Input voltage: up to 6 V
- Dropout voltage： 0.2V at 100mA and 0.40V at 200mA
- Excellent Input Stability
- Be available to regulator and reference voltage
- Packages:SOT23-3，SOT89-3，SOT23，TO-92
