MICRONEDatasheet (PDF)

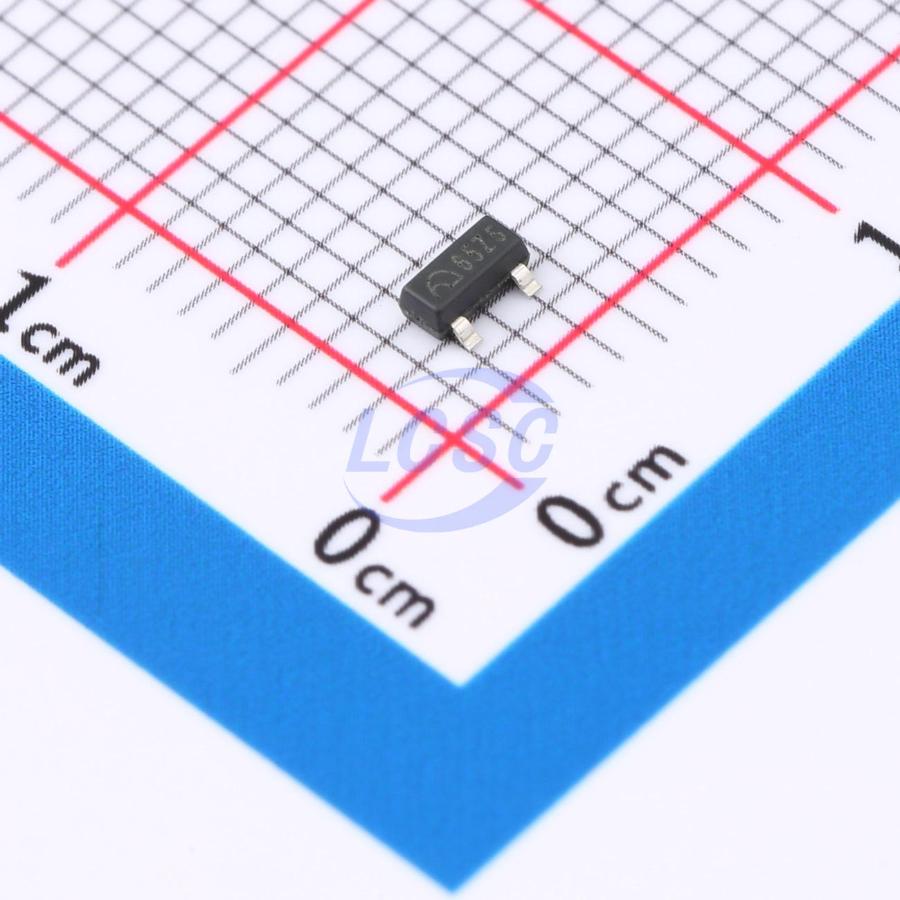

ME6206A30XG
3V Positive Fixed SOT-23 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23RoHSActive
Low power consumption, Low ESR Cap.Compatible Voltage Regulators
- Manufacturer
- MICRONE
- Manufacturer part #
- ME6206A30XG
- Store part #
- C236701
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
13,340 in stock
#C236701
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.32 | ₹53.20 |
| 100+ | ₹4.15 | ₹415.00 |
| 300+ | ₹3.57 | ₹1,071.00 |
| 3,000+ | ₹3.15 | ₹9,450.00 |
| 6,000+ | ₹2.79 | ₹16,740.00 |
| 9,000+ | ₹2.62 | ₹23,580.00 |
10 × ₹5.32
₹53.20
excl. GST
₹62.78 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ME6206A30XG
₹53.20 for 10 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+125℃@(Ta)
- Supply Current (Iq)
- 8uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 6V
- Features
- Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.033 g
Overview
ME6206 series are highly precise, low power consumption, high voltage, positive voltage regulators manufactured using CMOS and laser trimming technologies. The series provides large currents with a significantly small dropout voltage. The series is compatible with low ESR ceramic capacitors. The current limiter’s foldback circuit also operates as a short protect for the output current limiter and the output pin.
Applications
- Mobile phones
- communication equipment
- Portable games
- Cameras, Video systems
- Reference voltage sources
- Battery powered equipment
Key features
- Maximum Output Current: 300mA (VIN = 4.3V, VOUT = 3.3V)
- Dropout Voltage: 200mV @ Iload = 100mA
- Input Voltage Range: up to 6.0V
- Highly Accuracy: ±2%
- Low Power Consumption: 8uA（TYP.）
- Excellent Input Stability
- Be available to regulator and reference voltage
