MICRONEDatasheet (PDF)

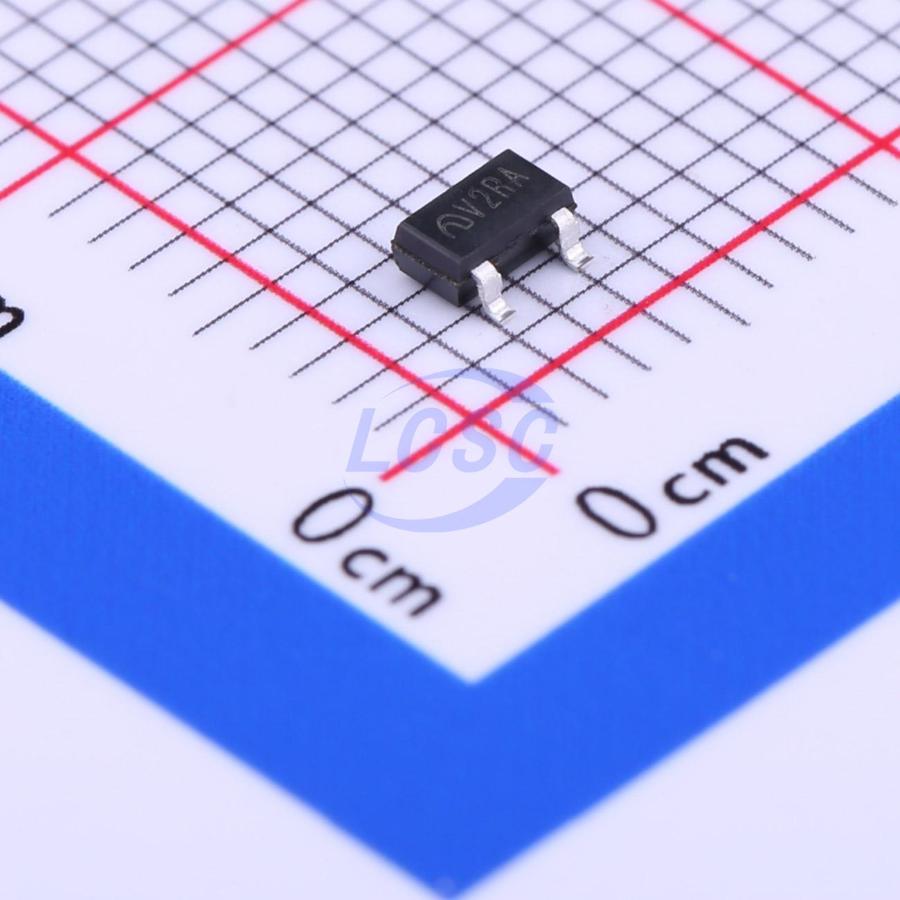

ME6209A30M3G
3V Positive Fixed SOT-23-3L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-3LRoHSActive
Low Power Consumption LDO
- Manufacturer
- MICRONE
- Manufacturer part #
- ME6209A30M3G
- Store part #
- C82943
- Package / case
- SOT-23-3L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,830 in stock
#C82943
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.23 | ₹82.30 |
| 100+ | ₹6.47 | ₹647.00 |
| 300+ | ₹5.60 | ₹1,680.00 |
| 3,000+ | ₹4.68 | ₹14,040.00 |
| 6,000+ | ₹4.15 | ₹24,900.00 |
| 9,000+ | ₹3.89 | ₹35,010.00 |
10 × ₹8.23
₹82.30
excl. GST
₹97.11 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ME6209A30M3G
₹82.30 for 10 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -45℃~+150℃
- Supply Current (Iq)
- 3uA
- Output Configuration
- Positive
- Output Current
- 250mA
- Operating Voltage
- 18V
- Features
- Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.053 g
Overview
The ME6209 series are a group of positive voltage output, three –pin regulator, that provide a high current even when the input/output Voltage differential is small. Low power consumption and high accuracy is achieved through CMOS technology. They allow input voltages as high as 18V.
Applications
- Cameras, video recorders
- Voltage regulator for microprocessor
- Voltage regulator for LAN cards
- Wireless communication equipment
- Audio/Video equipment
Key features
- Ultra low quiescent current: 3.0uA(typ)
- High input voltage (up to 18V)
- Low dropout voltage :80mV@Iout=40mA （Vout = 3.3V）
- Output voltage accuracy: ±2%
- Maximum output current: 250mA （within max.power dissipation, Vout = 3.3V）
- Low temperature coefficient
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ME6210A30M3G#C116985MICRONE · SOT-23 | MICRONE | SOT-23 | 6,280 | ₹8.73 · 6,280 in stock | View |
 | ME6214A30M3G#C7393813MICRONE · SOT23-3 | MICRONE | SOT23-3 | 2,255 | ₹11.14 · 2,255 in stock | View |
