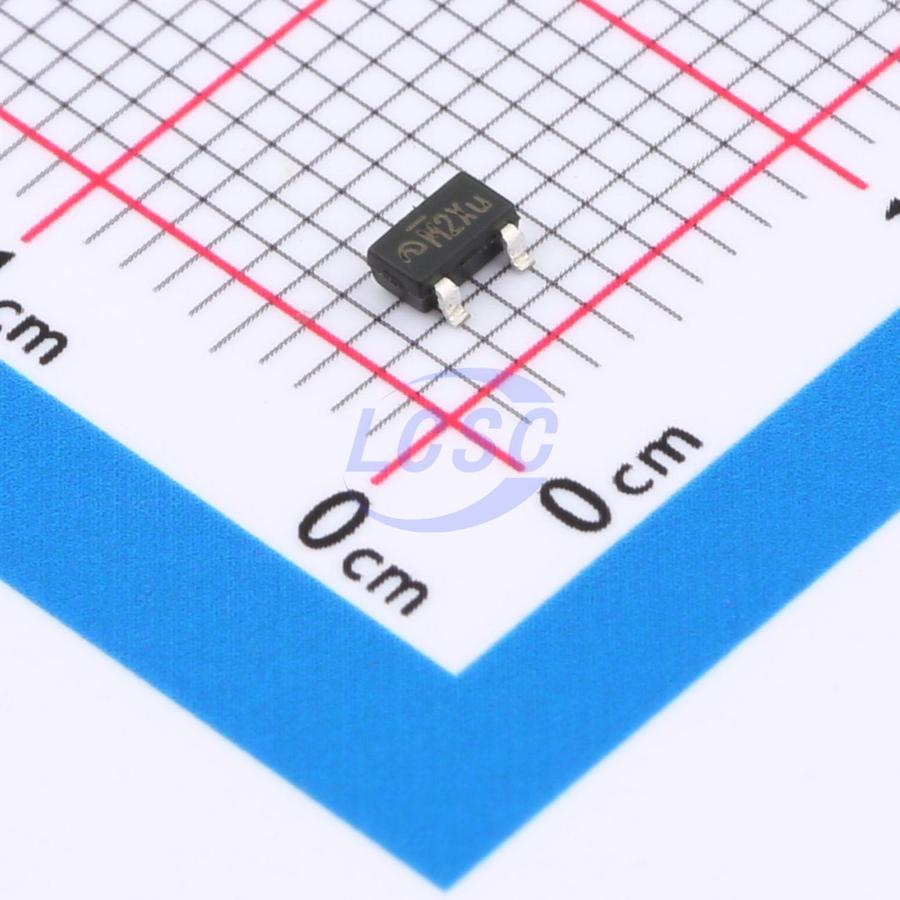

ME6210A50M3G
5V Positive Fixed SOT-23 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23RoHSActive
500mA, Low Quiescent, Low Dropout LDO Linear Regulators
- Manufacturer
- MICRONE
- Manufacturer part #
- ME6210A50M3G
- Store part #
- C236679
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,260 in stock
#C236679
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.38 | ₹73.80 |
| 100+ | ₹5.78 | ₹578.00 |
| 300+ | ₹4.97 | ₹1,491.00 |
| 3,000+ | ₹4.37 | ₹13,110.00 |
| 6,000+ | ₹3.89 | ₹23,340.00 |
| 9,000+ | ₹3.65 | ₹32,850.00 |
10 × ₹7.38
₹73.80
excl. GST
₹87.08 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ME6210A50M3G
₹73.80 for 10 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+85℃@(Ta)
- Supply Current (Iq)
- 1.7uA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 18V
- Features
- Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.035 g
Overview
ME6210 series are low quiescent, low-dropout linear voltage regulators. ME6210 series are based on the CMOS process and allow high voltage input. The allow operation voltage as high as 18V. ME6210 series have short circuit protection function.
Applications
- Power source for home electric/electronic appliances
- Power source for battery-powered devices
- Power source for personal communication devices
Key features
- High output accuracy: ±2%
- Input voltage: 2V to 18V
- Output voltage: 1.5V ~ 5.0V
- Ultra-low quiescent current (Typ. = 1.5μA)
- Output Current: Iout = 500mA (When Vin = 4V and Vout = 3V)
- Low dropout voltage: 110mV (Typ. Iout = 10mA, Vout = 3.0V)
- Input good stability: Typ. 0.03% / V
- Short-circuit Current: Typ. 50mA
- Ceramic capacitor can be used
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ME6231A50M3G#C2765180MICRONE · SOT23-3 | MICRONE | SOT23-3 | 15 | ₹11.47 · 15 in stock | View |
