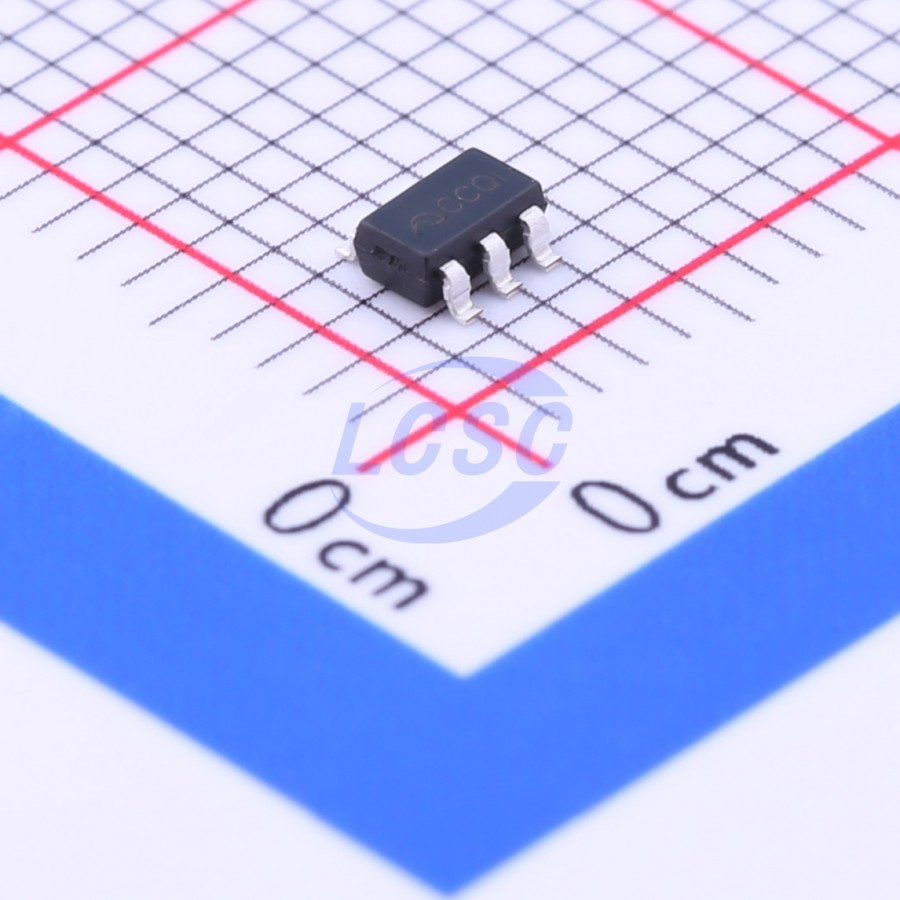

ME6212C18M5G
Linear Voltage Regulator IC Positive Fixed 1 Output 350mA SOT-23-5
SOT-23-5RoHSActive
High-precision, high ripple rejection ratio, low-noise, ultra-fast response linear voltage regulator
- Manufacturer
- MICRONE
- Manufacturer part #
- ME6212C18M5G
- Store part #
- C236669
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
12,110 in stock
#C236669
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.29 | ₹72.90 |
| 100+ | ₹5.91 | ₹591.00 |
| 300+ | ₹5.23 | ₹1,569.00 |
| 3,000+ | ₹4.71 | ₹14,130.00 |
| 6,000+ | ₹4.29 | ₹25,740.00 |
| 9,000+ | ₹4.09 | ₹36,810.00 |
10 × ₹7.29
₹72.90
excl. GST
₹86.02 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ME6212C18M5G
₹72.90 for 10 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+150℃@(Ta)
- Supply Current (Iq)
- 50uA
- Output Configuration
- Positive
- Output Current
- 350mA
- Operating Voltage
- 6V
- Features
- Enable control;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.042 g
Overview
The ME6212 series are high-accuracy, high-PSRR, low-noise, ultra-fast response LDO linear regulators fabricated using CMOS process technology. The ME6212 series integrates a fixed reference voltage source, error correction circuit, current limiting circuit, phase compensation circuit, and a low on-resistance MOSFET, achieving high ripple rejection, low output noise, and ultra-fast response low-dropout performance.
Applications
- Tablets, set-top boxes
- Bluetooth speakers, dash cams, automotive products
- Toys
Key features
- Ultra-low power consumption: Active: 50uA (typ.), Standby: 0.1uA (typ.)
- Input voltage range: 2.0~6.0V
- Output voltage range: 1.2~5.0V (in 0.1V increments)
- Output accuracy: ±2%
- Input/output voltage differential: 120mV / @IOUT = 100mA (3.3V)
- Output current: 350mA
- High ripple rejection ratio: 65dB@1KHz (ME6212C33)
- Low output noise: 50uVrms
- Good line regulation: 0.05% (TYP.)
- CMOS process; high accuracy, high ripple rejection ratio, low noise, ultra-fast response
- Built-in fixed reference voltage source, error correction circuit, current limiting circuit, phase compensation circuit, and low on-resistance MOSFET
- Compatible with ceramic capacitors smaller than tantalum capacitors; no 0.1μF bypass capacitor required, saving board space
- High-speed response characteristic handles output load current fluctuations
- CE pin controls output shutdown; standby current below 1uA after shutdown
