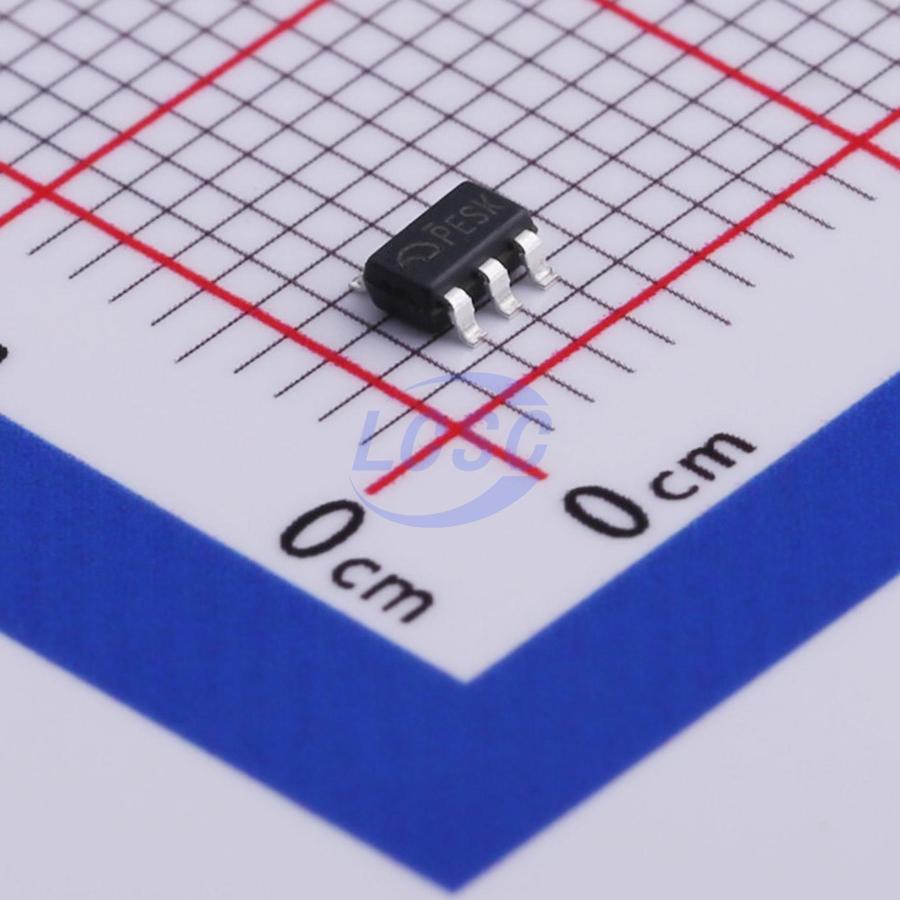

ME6214C50M5G
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-23-5
SOT-23-5RoHSActive
Ultra-low power consumption, low dropout and high current linear voltage regulator
- Manufacturer
- MICRONE
- Manufacturer part #
- ME6214C50M5G
- Store part #
- C487908
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,030 in stock
#C487908
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.07 | ₹60.35 |
| 50+ | ₹9.50 | ₹475.00 |
| 150+ | ₹8.22 | ₹1,233.00 |
| 500+ | ₹7.25 | ₹3,625.00 |
| 3,000+ | ₹6.20 | ₹18,600.00 |
| 6,000+ | ₹5.82 | ₹34,920.00 |
5 × ₹12.07
₹60.35
excl. GST
₹71.21 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ME6214C50M5G
₹60.35 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Tj)
- Supply Current (Iq)
- 700nA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 18V
- Features
- Enable control;Output discharge;Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.049 g
Overview
The ME6214 series are ultra-low quiescent current, low dropout linear regulators fabricated using CMOS process. The regulator consumes approximately 0.7μA of quiescent current, with a shutdown current of 0.01μA (typical) when disabled. Features include built-in enable control, current limiting circuit, foldback short-circuit protection, and automatic output capacitor discharge via enable control.
Applications
- Regulated power supply for battery-powered devices
- Regulated power supply for home appliances
- Regulated power supply for portable communication equipment, digital cameras, and digital audio devices
Key features
- Ultra-low quiescent current, low dropout linear regulator fabricated in CMOS process
- Ultra-low power consumption: Active: 0.7uA (typ.), Shutdown: 0.01uA (typ.)
- Input voltage range: 2.0~18V
- Output voltage range: 1.5~5.0V (in 0.1V steps)
- Output accuracy: ±2%
- Dropout voltage: 160mV / @IOUT = 100mA (3.3V)
- Output current: 300mA
- Current protection: Foldback short-circuit current 30mA overcurrent protection
- Enable control: Active high ON / Active low OFF, must not be left floating; output capacitor auto-discharge function
- ME6214C series: with enable version
- ME6214A series: without enable version
