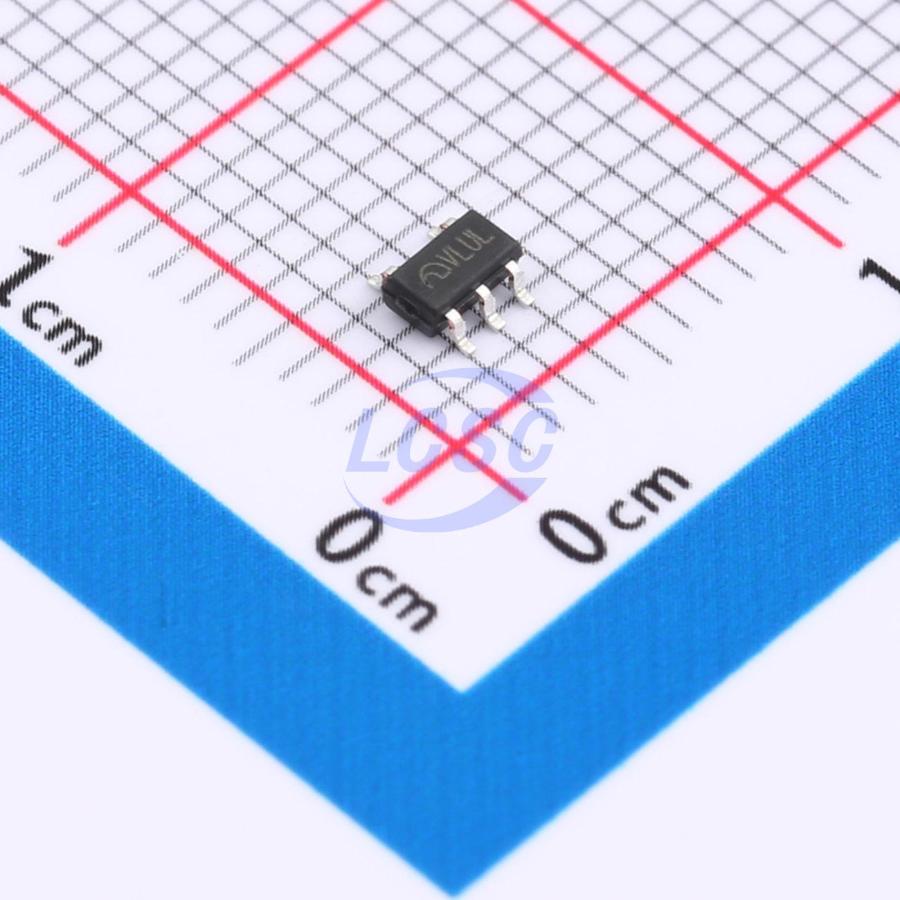

ME6232C33M5G
3.3V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
1.4 μA IQ, high-precision, high PSRR LDO converter
- Manufacturer
- MICRONE
- Manufacturer part #
- ME6232C33M5G
- Store part #
- C5210913
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
38,020 in stock
#C5210913
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.33 | ₹106.60 |
| 200+ | ₹4.21 | ₹842.00 |
| 600+ | ₹3.59 | ₹2,154.00 |
| 3,000+ | ₹3.20 | ₹9,600.00 |
| 9,000+ | ₹2.88 | ₹25,920.00 |
| 21,000+ | ₹2.71 | ₹56,910.00 |
20 × ₹5.33
₹106.60
excl. GST
₹125.79 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ME6232C33M5G
₹106.60 for 20 + GST
Specifications
- Output Voltage
- 3.3V
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 1.4uA
- Output Configuration
- Positive
- Operating Voltage
- 6V
- Output Current
- 400mA
- Output Type
- Fixed
- Features
- Enable control;Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.048 g
Overview
The ME6232 series is a low-dropout linear regulator fabricated in CMOS technology, featuring 1.4uA quiescent current, high accuracy, and high PSRR. The series integrates a fixed voltage reference, thermal protection, current limiting, phase compensation circuitry, and a low on-resistance MOSFET, achieving ultra-low power consumption, high ripple rejection, and low-dropout performance. Compatible with smaller ceramic capacitors and requiring no bypass capacitor, it helps save board space. Its fast transient response handles load current fluctuations, making it especially suitable for portable and RF applications. The output can be disabled via the chip enable pin, reducing power consumption to 0uA in shutdown.
Applications
- Mobile phones
- Cordless telephone devices
- Cameras
- Bluetooth
- Voltage references
Key features
- Maximum output current: 400mA (VIN = 4.3V, VOUT = 3.3V)
- Low dropout: 110mV @ IOUT = 100mA (ME6232C33)
- Operating voltage range: 1.8V~6.0V
- Output voltage range: 1.2V~5.0V
- High output accuracy: ±1%
- Low quiescent current: 1.4uA (typ.)
- Shutdown current: 0uA (typ.)
- High ripple rejection ratio: 70dB @ 1KHz (ME6232C33)
- Built-in thermal protection and current limiting protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ME6511C33M5G#C2837689MICRONE · SOT-23-5L | MICRONE | SOT-23-5L | 2,910 | ₹4.25 · 2,910 in stock | View |
 | ME6230C33M5G#C610252MICRONE · SOT-23-5 | MICRONE | SOT-23-5 | 5,850 | ₹9.27 · 5,850 in stock | View |
 | ME6211C33M5G-N#C82942MICRONE · SOT-23-5 | MICRONE | SOT-23-5 | 1,69,200 | ₹8.19 · 1,69,200 in stock | View |
 | ME6217C33M5G#C427602MICRONE · SOT-23-5 | MICRONE | SOT-23-5 | 82,595 | ₹14.13 · 82,595 in stock | View |
 | ME6231C33M5G#C610253MICRONE · SOT-23-5 | MICRONE | SOT-23-5 | 34,770 | ₹10.07 · 34,770 in stock | View |
