BOURNSDatasheet (PDF)

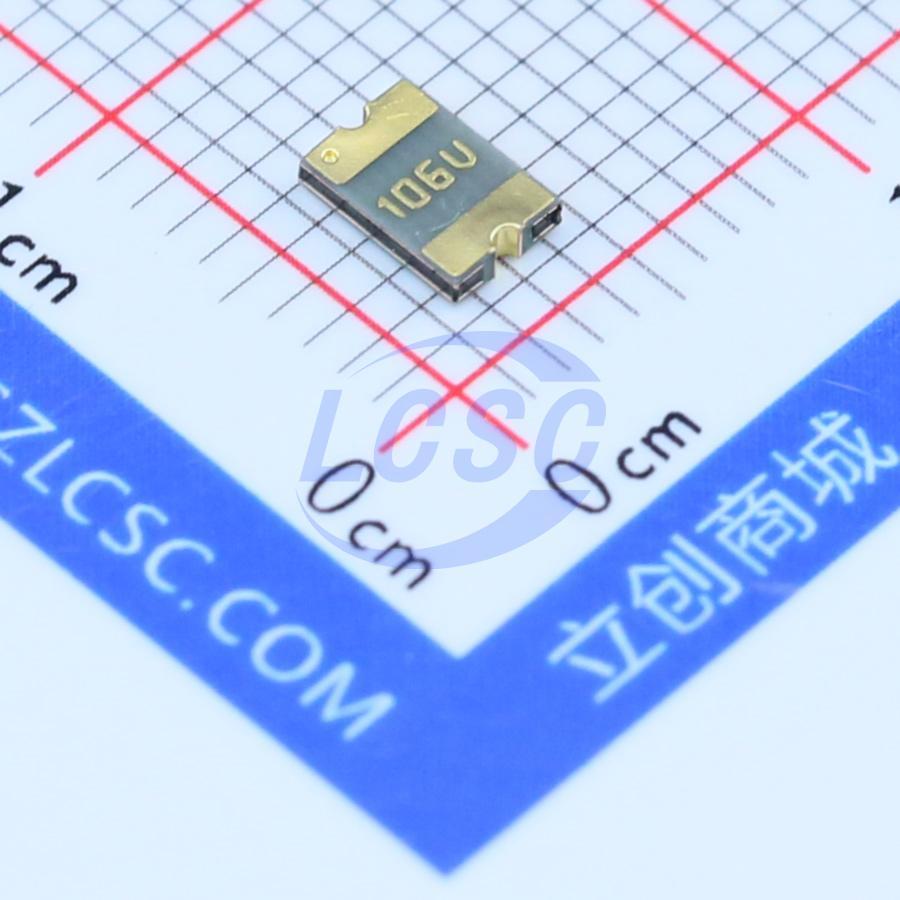

MF-MSMF010-2
60V 100mA 40A 300mA 700mΩ 1812 PTC Resettable Fuses RoHS
Popular1812ROHS3 CompliantActive
PTC RESET FUSE 60V 1812
- Manufacturer
- BOURNS
- Manufacturer part #
- MF-MSMF010-2
- Store part #
- C12430
- Package / case
- 1812
- Category
- PTC Resettable Fuses
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
22,190 in stock
#C12430
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.16 | ₹91.60 |
| 100+ | ₹7.33 | ₹733.00 |
| 300+ | ₹6.43 | ₹1,929.00 |
| 1,500+ | ₹5.76 | ₹8,640.00 |
| 4,500+ | ₹5.20 | ₹23,400.00 |
| 10,500+ | ₹4.93 | ₹51,765.00 |
10 × ₹9.16
₹91.60
excl. GST
₹108.09 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
MF-MSMF010-2
₹91.60 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Voltage - Max
- 60V
- Hold Current
- 100mA
- Current - Max
- 40A
- Power Dissipation
- 800mW
- Trip Current
- 300mA
- Height
- 1.1mm
- Length
- 5.4mm
- Width
- 3.2mm
- Resistance @ 25℃
- 700mΩ
- Time to Trip(Max)
- 1.5s
- Resistance - Post Trip (R1) (Max)
- 15Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.14 g
Overview
Applications
- Overcurrent and overtemperature protection of automotive electronics
- Hard disk drives
- PC motherboards
- PC peripherals
- Point-of-sale (POS) equipment
- PCMCIA cards
- USB port protection - USB 2.0, 3.0 & OTG
- HDMI 1.4 Source protection
Key features
- Compliant with AEC-Q200 Rev-C - Stress Test Qualification for Passive Components in Automotive Applications
- 100% electrically compatible with all previous generations of 1812 SMT devices
- Compatible with Pb and Pb-free solder reflow profiles
- RoHS compliant* and halogen free**
- Surface mount packaging for automated assembly
- Agency recognition
- Standard 4532 mm (1812 mils) footprint
- Patents pending
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MINISMDC010F-2#C315959Littelfuse · 1812 | Littelfuse | 1812 | 4,517 | ₹60.99 · 4,517 in stock | View |
 | SMD1812-010C-60V#C2760281BNstar · 1812 | BNstar | 1812 | 10,720 | ₹6.05 · 10,720 in stock | View |
 | SMD1812-010-60#C46641037R+O · 1812 | R+O | 1812 | 37,280 | ₹7.01 · 37,280 in stock | View |
 | BSMD1812-010-60V#C883137BHFUSE · 1812 | BHFUSE | 1812 | 27,820 | ₹6.31 · 27,820 in stock | View |
 | TLC-MSMD010#C262018TLC Electronic · 1812 | TLC Electronic | 1812 | 6,480 | ₹9.00 · 6,480 in stock | View |
