BOURNSDatasheet (PDF)

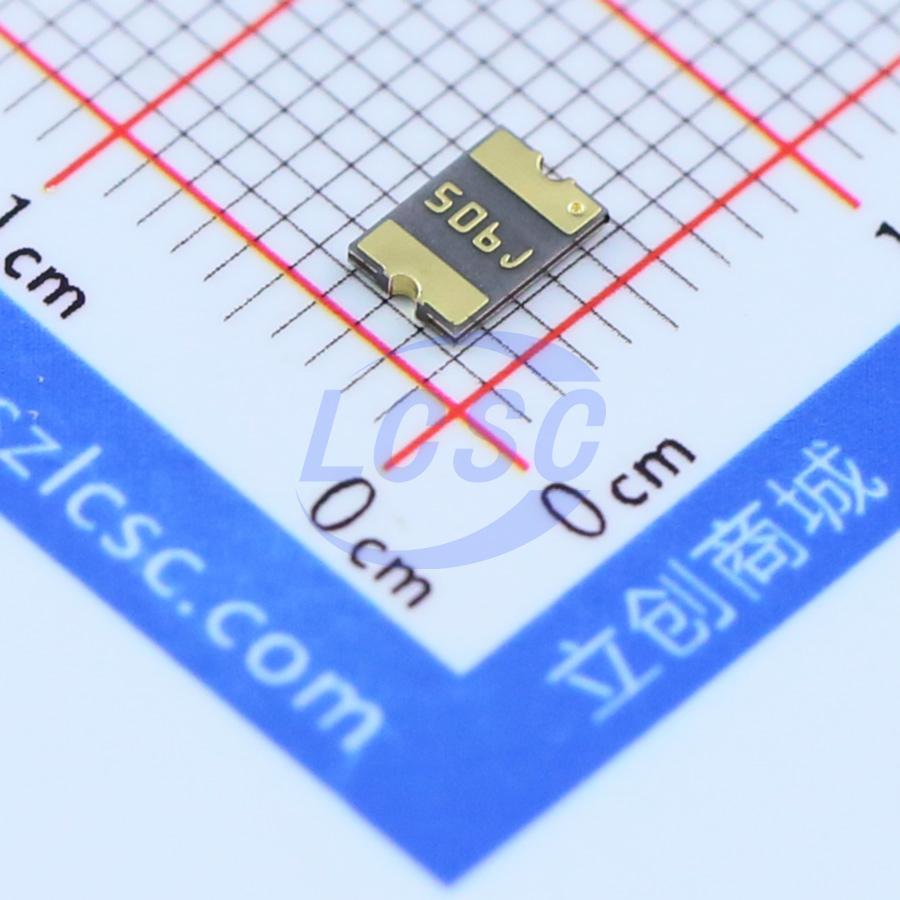

MF-MSMF050-2
15V 500mA 100A 1A 150mΩ 1812 PTC Resettable Fuses RoHS
Popular1812ROHS CompliantActive
PTC RESET FUSE 15V 1812
- Manufacturer
- BOURNS
- Manufacturer part #
- MF-MSMF050-2
- Store part #
- C17313
- Package / case
- 1812
- Category
- PTC Resettable Fuses
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,31,350 in stock
#C17313
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹12.13 | ₹121.30 |
| 100+ | ₹9.59 | ₹959.00 |
| 300+ | ₹8.32 | ₹2,496.00 |
| 2,000+ | ₹7.38 | ₹14,760.00 |
| 4,000+ | ₹6.62 | ₹26,480.00 |
| 10,000+ | ₹6.23 | ₹62,300.00 |
10 × ₹12.13
₹121.30
excl. GST
₹143.13 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
MF-MSMF050-2
₹121.30 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Voltage - Max
- 15V
- Hold Current
- 500mA
- Current - Max
- 100A
- Power Dissipation
- 800mW
- Trip Current
- 1A
- Height
- 0.85mm
- Length
- 5.4mm
- Width
- 3.2mm
- Resistance @ 25℃
- 150mΩ
- Time to Trip(Max)
- 150ms
- Resistance - Post Trip (R1) (Max)
- 1Ω
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.115 g
Overview
Applications
- Overcurrent and overtemperature protection of automotive electronics
- Hard disk drives
- PC motherboards
- PC peripherals
- Point-of-sale (POS) equipment
- PCMCIA cards
- USB port protection - USB 2.0, 3.0 & OTG
- HDMI 1.4 Source protection
Key features
- Compliant with AEC-Q200 Rev-C - Stress Test Qualification for Passive Components in Automotive Applications
- 100% electrically compatible with all previous generations of 1812 SMT devices
- Compatible with Pb and Pb-free solder reflow profiles
- RoHS compliant* and halogen free**
- Surface mount packaging for automated assembly
- Agency recognition
- Standard 4532 mm (1812 mils) footprint
- Patents pending
