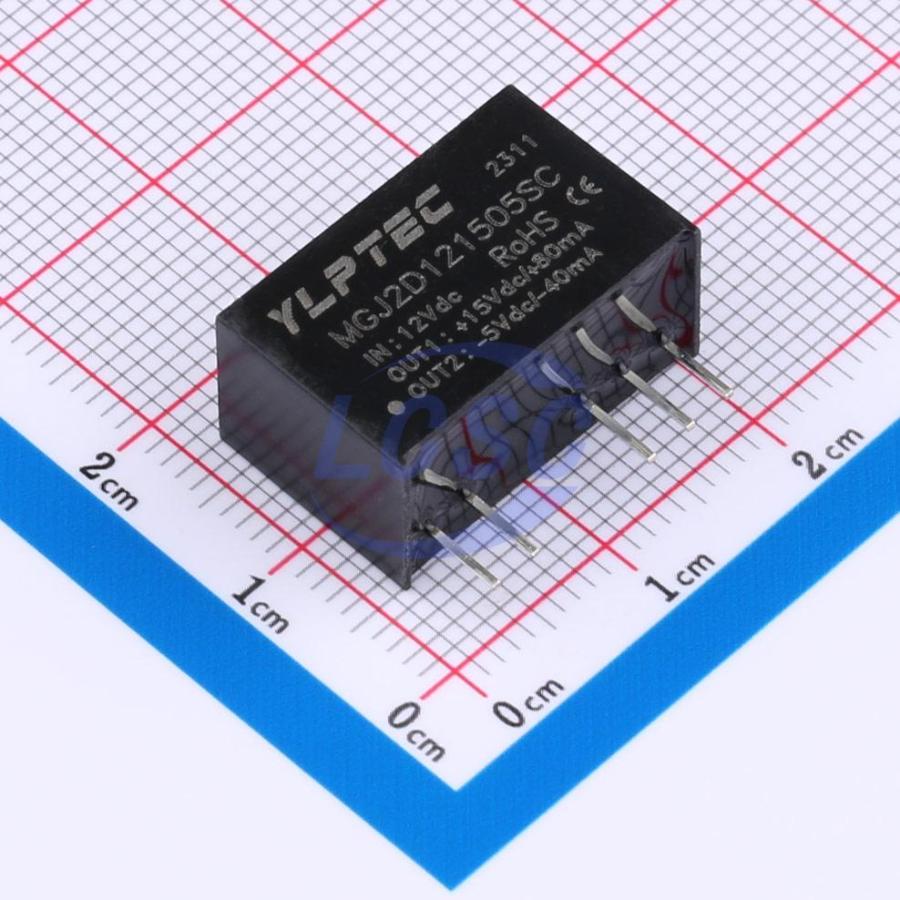

YLPTEC

MGJ2D121505SC

Isolated Module DC DC Converter 2 Output 15V -5V 80mA -40mA 11.6V~12.4V Input

SIP,19.5x9.8mmRoHSActive

Dedicated DC/DC modular power supply for IGBT drivers

Manufacturer: YLPTEC
Manufacturer part #: MGJ2D121505SC
Store part #: C5369897
Package / case: SIP,19.5x9.8mm
Category: DC DC Converters
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

10 in stock

#C5369897

Stock & price checked 9 days ago

Quantity	Unit price	Pack price
1+	₹643.04	₹643.04
10+	₹555.81	₹5,558.10
25+	₹503.93	₹12,598.25
100+	₹451.42	₹45,142.00
500+	₹427.33	₹2,13,665.00
1,200+	₹416.48	₹4,99,776.00

Quantity (min 1)

1 × ₹643.04

₹643.04

excl. GST

₹758.79 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 25 per tube

MGJ2D121505SC

₹643.04 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 15V;-5V
Ripple Noise: 100mVp-p
Type: Plastic encapsulated type
Operating Temperature: -40℃~+105℃
Quiescent Supply Current: 20mA
Voltage - Supply: 11.6V~12.4V
Capacitive Load(Max): 220uF
Number of Outputs: 2
Iout: 80mA;40mA
Height: 12.5mm
Frequency - Switching: 100Hz
Isolation Voltage(Vrms): 3kV
Features: Short Circuit Protection;Automatic fault recovery
Conversion Efficiency: 90%
Length: 19.5mm
Width: 9.8mm

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
ECCN: EAR99
Packaging: Tube-packed
Standard pack: 25 / Tube
Sold per: Piece
Minimum order: 1
Unit weight: 5.12 g

Overview

Applications

General-purpose inverters
AC servo drive systems
Welding machines
Uninterruptible power supplies (UPS)

Key features

Up to 90% efficiency
Continuous short-circuit protection
No-load operation capable
Excellent temperature characteristics
Ultra-low isolation capacitance
3000VAC isolation voltage
SIP standard pinout
Operating temperature range: -40°C ~ +105°C
