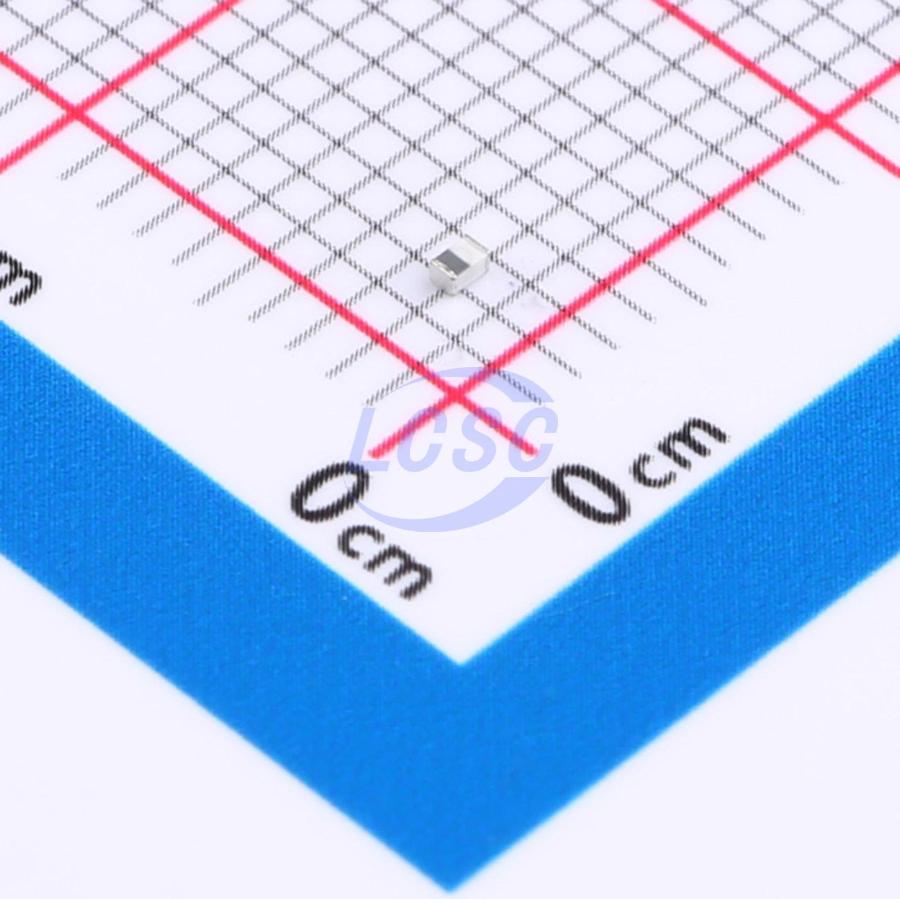

MHQ1005P4N7BTD25 TDK

MHQ1005P4N7BTD25

4.7nH 800mA 80mΩ Standard AEC-Q200

0402ROHS3 CompliantActive

FIXED IND 4.7nH 800mA 80mΩ 0402

Manufacturer: TDK
Manufacturer part #: MHQ1005P4N7BTD25
Store part #: C2048654
Package / case: 0402
Category: Fixed Inductors
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,140 in stock

#C2048654

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
10+	₹9.66	₹96.60
100+	₹7.73	₹773.00
300+	₹6.76	₹2,028.00
1,000+	₹6.03	₹6,030.00
5,000+	₹5.45	₹27,250.00
10,000+	₹5.16	₹51,600.00

Quantity (min 10, multiples of 10)

10 × ₹9.66

₹96.60

excl. GST

₹113.99 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 10,000 per reel

MHQ1005P4N7BTD25

₹96.60 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Current Rating: 800mA
Inductance: 4.7nH
Frequency - Self Resonant: 5GHz
DC Resistance(DCR): 80mΩ
Q @ Frequency: 23@250MHz

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 10,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.012 g

Overview

Applications

High-frequency circuits for automotive equipment, smartphones, tablet terminals, high-frequency modules, Bluetooth, WLAN, UWB, tuners, and other mobile communications applications
Application Guide: Automotive Infotainment Systems

Key features

Unique ceramic material and structure achieves high-Q characteristics comparable to air-core wire-wound inductors.
Multilayer structure enables fine incremental inductance arrangement.
Operating temperature range: -55°C ~ +125°C

Alternatives

Similar parts — check the datasheet before substituting.

Part		Manufacturer	Package	Stock	Price from (excl. GST)	Action
	MHQ1005P4N7BT000#C531335TDK · 0402	TDK	0402	2,100	₹4.50 · 2,100 in stock	View
	0402HP-4N7XGLW#C40353066Coilcraft · 0402	Coilcraft	0402	37	₹171.47 · 37 in stock	View
	0402DC-4N7XJRW#C6030646Coilcraft · 0402	Coilcraft	0402	72	₹140.82 · 72 in stock	View
	APGL1005-4N7SETD9#C54951922APV · 0402	APV	0402	9,500	₹0.7806 · 9,500 in stock	View
	MHQ1005P4N7CT000#C2044184TDK · 0402	TDK	0402	On request	₹5.07 · 0 in stock	View
