MICROCHIP

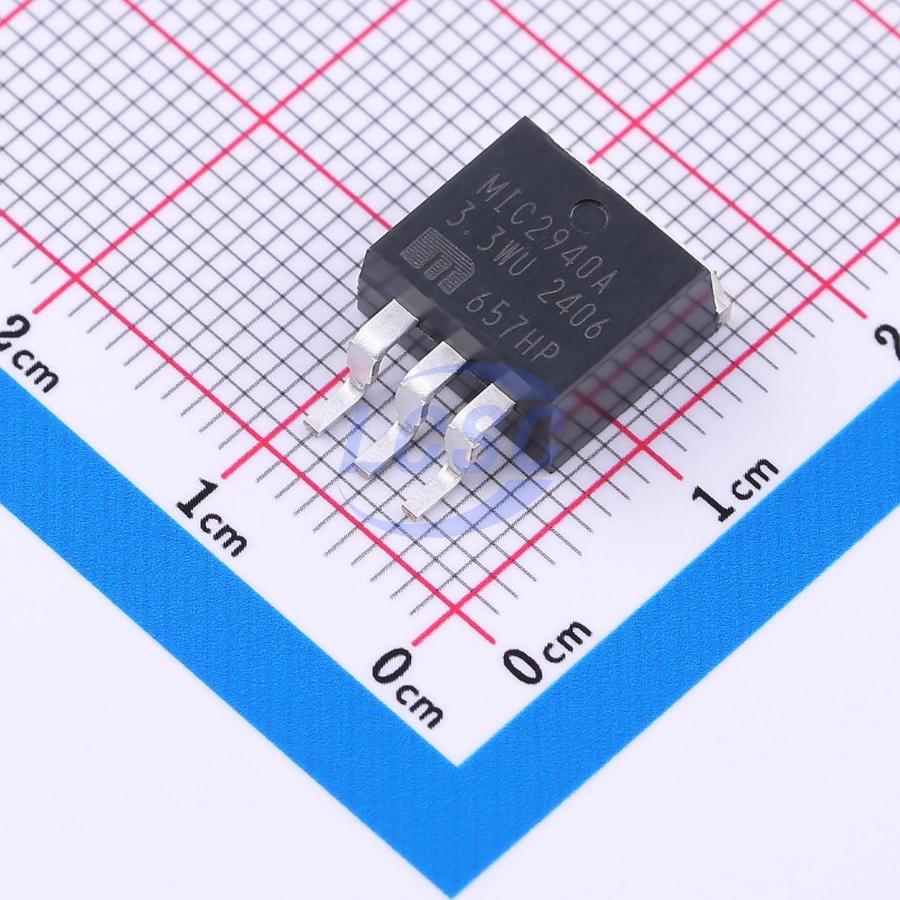

MIC2940A-3.3WU-TR

3.3V Positive Fixed TO-263-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

TO-263-3ROHS3 CompliantActive

1.25A Low Dropout Voltage Regulator

Manufacturer: MICROCHIP
Manufacturer part #: MIC2940A-3.3WU-TR
Store part #: C632743
Package / case: TO-263-3
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2 in stock

#C632743

Stock & price checked 32 h ago

Quantity	Unit price	Pack price
1+	₹584.20	₹584.20
10+	₹499.13	₹4,991.30
30+	₹448.62	₹13,458.60
100+	₹397.46	₹39,746.00
750+	₹373.92	₹2,80,440.00
1,500+	₹363.34	₹5,45,010.00

Quantity (min 1)

1 × ₹584.20

₹584.20

excl. GST

₹689.36 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 750 per reel

MIC2940A-3.3WU-TR

₹584.20 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 3.3V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Tj)
Supply Current (Iq): 500uA
Output Configuration: Positive
Output Current: 1.25A
Operating Voltage: 26V
Features: Enable control;Over Current Protection;Thermal shutdown;Reverse polarity voltage protection;Short Circuit Protection
Output Type: Fixed

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 750 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 1 g

Overview

The MIC2940A and MIC2941A are “bulletproof" efficient voltage regulators with very low dropout voltage (typically 40 mV at light loads and 350 mV at 1A), and low quiescent current (240 μA typical). The quiescent current of the MIC2940A increases only slightly in dropout, thus prolonging battery life. Key MIC2940A features include protection against reversed battery, fold-back current-limiting, and automotive “load dump" protection (60V positive transient). The MIC2940A is available in both fixed voltage (3.3V, 5V, and 12V) and adjustable voltage configurations. The MIC2940A-xx devices are three pin, fixed-voltage regulators. A logic-compatible shutdown input is provided on the adjustable MIC2941A, which enables the regulator to be switched on and off.

Applications

Battery-Powered Equipment
Cellular Telephones
Laptop, Notebook, and Palmtop Computers
PCMCIA VCC and VPP Regulation/Switching
Barcode Scanners
Automotive Electronics
SMPS Post-Regulator/DC-to-DC Modules
Voltage Reference
High Efficiency Linear Power Supplies

Key features

High Output Voltage Accuracy
Guaranteed 1.25A Output
Low Quiescent Current
Low Dropout Voltage
Extremely Tight Load and Line Regulation
Very Low Temperature Coefficient
Current and Thermal Limiting
Input Can Withstand -20V Reverse Battery and +60V Positive Transients
Logic-Controlled Electronic Shutdown
Output Programmable from 1.24V to 26V (MIC2941A)
Available in TO-220, TO-263, TO-220-5, and TO-263-5 Packages
