MICROCHIPDatasheet (PDF)

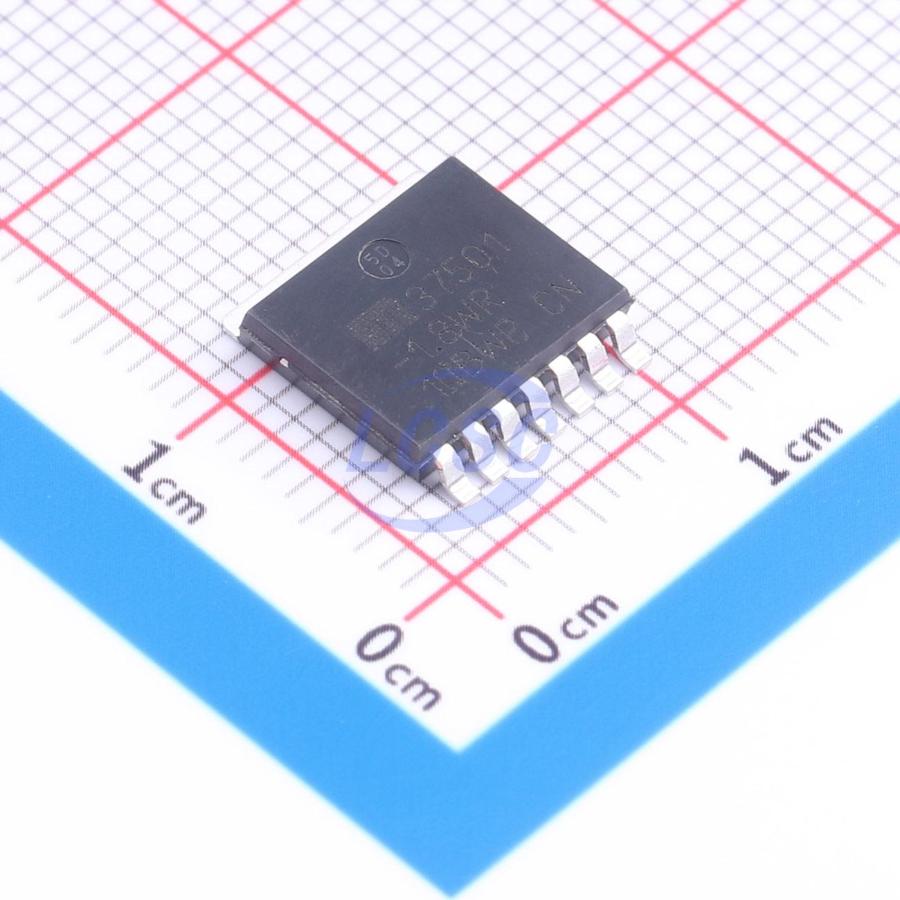

MIC37501-1.8WR
1.8V Positive Fixed SPAK-7 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SPAK-7ROHS3 CompliantActive
5A, Low Voltage μCap LDO Regulator
- Manufacturer
- MICROCHIP
- Manufacturer part #
- MIC37501-1.8WR
- Store part #
- C641495
- Package / case
- SPAK-7
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6 in stock
#C641495
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,377.64 | ₹1,377.64 |
| 10+ | ₹1,333.85 | ₹13,338.50 |
1 × ₹1,377.64
₹1,377.64
excl. GST
₹1,625.62 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 48 per tube
MIC37501-1.8WR
₹1,377.64 for 1 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Output Configuration
- Positive
- Operating Voltage
- 6V
- Output Current
- 5A
- Features
- Enable control;Operating status indication;Thermal shutdown;Over Current Protection;Reverse-polarity current protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 48 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 8.45 g
Overview
The MIC37501 and MIC37502 are 5A, low dropout linear voltage regulator that provide low voltage, high current outputs with a minimum of external components. They offer high precision, ultra-low dropout (500mV), and low ground current.
Applications
- LDO linear regulator for low - voltage digital IC
- PC add - in cards
- High efficiency linear power supplies
- SMPS post regulator
- Battery charger
Key features
- 5A minimum guaranteed output current
- 500mV maximum dropout voltage – Ideal for 3.0V to 2.5V conversion Ideal for 2.5V to 1.8V, 1.65V, or 1.5V conversion
- Stable with ceramic or tantalum capacitor
- Wide input voltage range: - VIN: 2.3V to 6.0V
- ±1.0% initial output tolerance
- Fixed and adjustable output voltages: – MIC37501—7 terminal fixed voltage MIC37502—5 (TO - 263) and 7 (SPAK) terminal adjustable voltage
- Excellent line and load regulation specifications
- Logic controlled shutdown
- Thermal shutdown and current - limit protection
- Reverse - leakage protection
- Low profile S - Pak and TO - 263 packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| MIC37501-1.8WR-TR#C632774MICROCHIP · SPAK-7 | MICROCHIP | SPAK-7 | On request | ₹617.31 · 0 in stock | View | |
