MICROCHIP

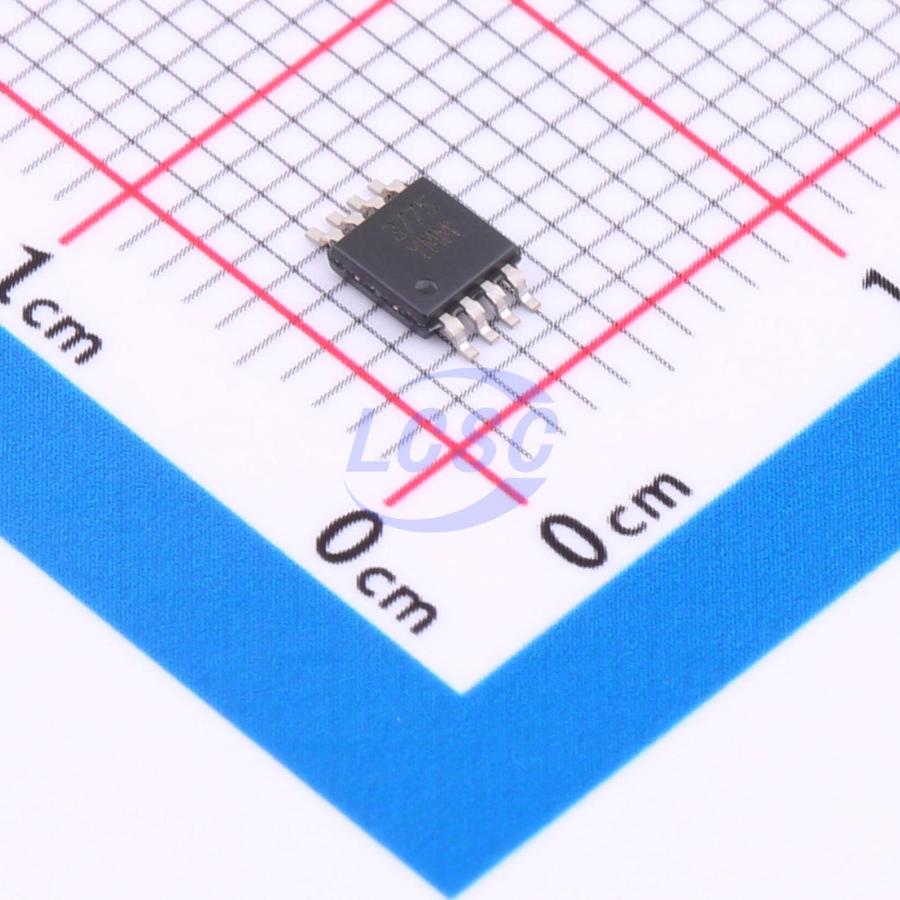

MIC3775YMM-TR

1.24V~6V Positive Adjustable MSOP-8 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

MSOP-8ROHS3 CompliantActive

750 mA μCap Low Voltage, Low Dropout Regulator

Manufacturer: MICROCHIP
Manufacturer part #: MIC3775YMM-TR
Store part #: C512208
Package / case: MSOP-8
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

10 in stock

#C512208

Stock & price checked 8 days ago

Quantity	Unit price	Pack price
1+	₹538.05	₹538.05
10+	₹463.06	₹4,630.60
30+	₹418.69	₹12,560.70
100+	₹373.50	₹37,350.00
500+	₹352.75	₹1,76,375.00
1,000+	₹343.50	₹3,43,500.00

Quantity (min 1)

1 × ₹538.05

₹538.05

excl. GST

₹634.90 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

MIC3775YMM-TR

₹538.05 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 1.24V~6V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃@(Tj)
Supply Current (Iq): 15mA
Output Configuration: Positive
Operating Voltage: 6V
Output Current: 750mA
Features: Enable control;Over Current Protection;Thermal shutdown;Reverse-polarity current protection;Operating status indication
Output Type: Adjustable

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.51 g

Overview

The MIC3775 is a 750 mA low dropout linear voltage regulators that provides low voltage, high current output from an extremely small package. Utilizing proprietary Superβeta PNP pass element, the MIC3775 offers extremely low dropout (typically 280 mV at 750 mA) and low ground current (typically 7.5 mA at 750 mA). The MIC3775 is ideal for PC add-in cards that need to convert from standard 5V to 3.3V or 3.0V, 3.3V to 2.5V, or 2.5V to 1.8V or 1.65V. A guaranteed maximum dropout voltage of 500 mV over all operating conditions allows the MIC3775 to provide 2.5V from a supply as low as 3.0V and 1.8V or 1.5V from a supply as low as 2.25V. The MIC3775 is fully protected with overcurrent limiting, thermal shutdown, and reversed-leakage protection. Fixed and adjustable output voltage options are available with an operating temperature range of -40°C to +125°C.

Applications

Fiber Optic Modules
LDO Linear Regulator for PC Add-In Cards
PowerPC Power Supplies
High-Efficiency Linear Power Supplies
SMPS Post Regulator
Multimedia and PC Processor Supplies
Battery Chargers
Low-Voltage Microcontrollers and Digital Logic

Key features

Fixed and Adjustable Output Voltages to 1.24V
280 mV Typical Dropout at 750 mA - Ideal for 3.0V to 2.5V Conversion - Ideal for 2.5V to 1.8V or 1.65V Conversion
Stable with Ceramic Capacitor
750 mA Minimum Guaranteed Output Current
1% Initial Accuracy
Low Ground Current
Current Limiting and Thermal Shutdown
Reversed-Leakage Protection
Fast Transient Response
Low Profile Power MSOP-8 Package
