MICROCHIP

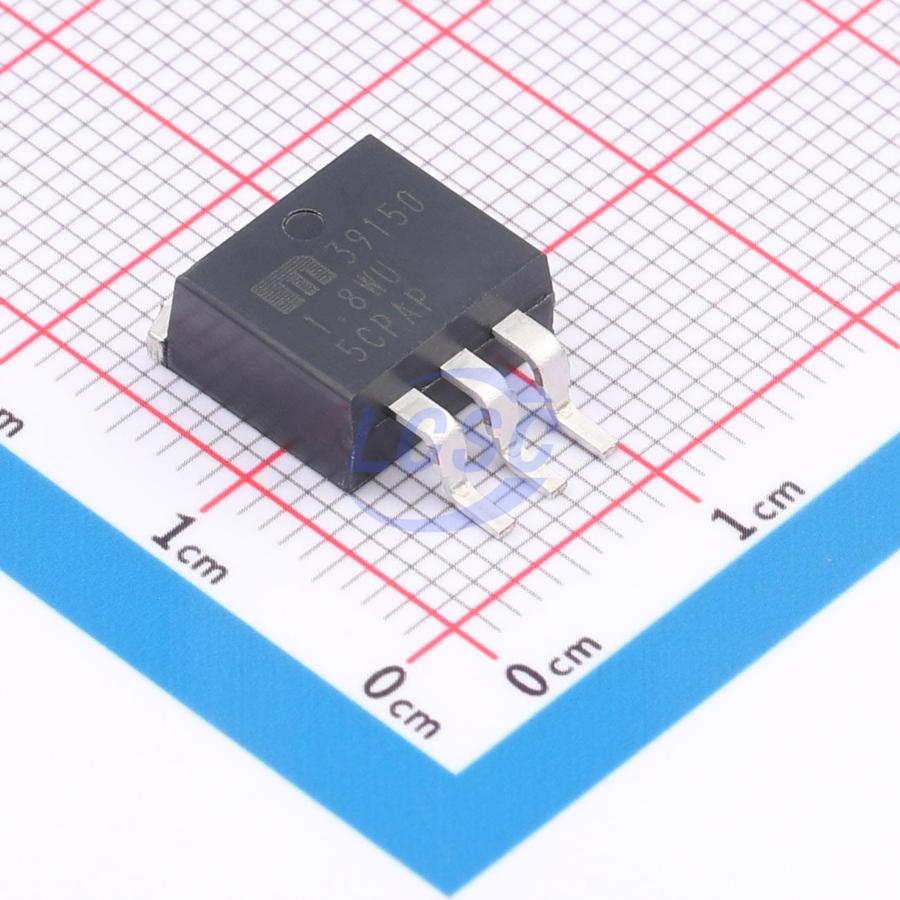

MIC39150-1.8WU-TR

1.8V Positive Fixed TO-263-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

TO-263-3ROHS3 CompliantActive

Manufacturer: MICROCHIP
Manufacturer part #: MIC39150-1.8WU-TR
Store part #: C632780
Package / case: TO-263-3
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

10 in stock

#C632780

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹806.41	₹806.41
10+	₹788.49	₹7,884.90
30+	₹776.40	₹23,292.00
100+	₹764.52	₹76,452.00

Quantity (min 1)

1 × ₹806.41

₹806.41

excl. GST

₹951.56 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 750 per reel

MIC39150-1.8WU-TR

₹806.41 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 1.8V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃
Output Configuration: Positive
Operating Voltage: 16V
Output Current: 1.5A
Features: Over Current Protection;Thermal shutdown;Reverse polarity voltage protection;Reverse-polarity current protection
Output Type: Fixed

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 750 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 6 g

Overview

The MIC39150, MIC39151, and MIC39152 are 1.5A LDO voltage regulators that provide a low voltage, high current output with a minimum of external components. Utilizing proprietary Super Beta PNP pass element, the MIC39150/1/2 offers extremely low dropout (typically 375mV at 1.5A) and low ground current (typically 17mA at 1.5A). The MIC39150/1/2 are ideal for PC add- in cards that need to convert from 3.3V to 2.5V or 2.5V to 1.8V with a guaranteed maximum dropout voltage of 500mV over all operating conditions. The MIC39150/1/2 exhibit fast transient response for heavy switching applications and requires only 10μF of output capacitance to maintain stability and achieve fast transient response. The MIC39150/1/2 is fully protected with current limiting, thermal shutdown, reversed- battery protection/lead insertion, and reverse- leakage protection. The MIC39151 offers a TTL- logic compatible enable pin and an error flag that indicates undervoltage and overcurrent conditions. Offered in fixed voltages of 2.5V, 1.8V and 1.65V, the MIC39150/1 comes in the TO- 220 and TO- 263 (D²Pak) packages. The MIC39152 adjustable option allows programming the output voltage anywhere between 1.24V and 15.5V and comes in 5- Pin, TO- 263 (D²Pak) and TO- 252 (D- Pak) packages.

Applications

Low- voltage digital ICs
LDO linear regulator for PC add- in cards
High- efficiency linear power supplies
SMPS post regulator
Low- voltage microcontrollers
StrongARM processor supply

Key features

1.5A minimum guaranteed output current
500mV maximum dropout voltage over temperature
Ideal for 3.0V to 2.5V conversion
Ideal for 2.5 to 1.8V or 1.65V conversion
1% initial accuracy
Low ground current
Current limiting and Thermal shutdown
Reversed- battery and reversed lead insertion protection
Reversed- leakage protection
Fast transient response
TTL/CMOS compatible enable pin (MIC39151/2 only)
Error flag output (MIC39151 only)
Adjustable output (MIC39152 only)
Power D- Pak package (TO- 252) Adjustable only
Power D²Pak package (TO- 263)

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
MIC39150-1.8WU#C641291MICROCHIP · TO-263-3	MICROCHIP	TO-263-3	2	₹825.68 · 2 in stock	View
LM39300R-1.8#C126057HTC · TO-263-3	HTC	TO-263-3	688	₹111.01 · 688 in stock	View
LM1086IS-1.8/NOPB#C2869123TI · TO-263-3	TI	TO-263-3	4	₹624.87 · 4 in stock	View
MIC39300-1.8WU#C641302MICROCHIP · TO-263-3	MICROCHIP	TO-263-3	9	₹1,033.58 · 9 in stock	View
LD1085D2M18R#C3746368ST · D2PAK-3	ST	D2PAK-3	570	₹136.11 · 570 in stock	View
