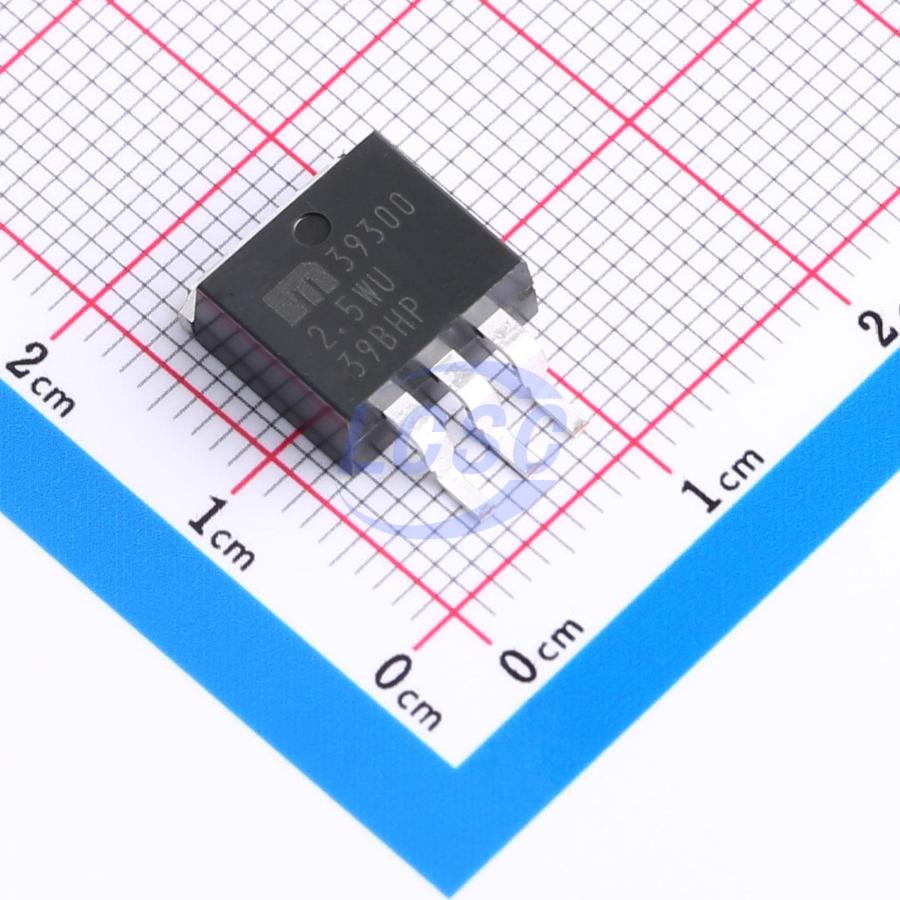

MIC39300-2.5WU-TR

The MIC39300, MIC39301, and MIC39302 are 3.0A low-dropout linear voltage regulators that provide a low voltage, high-current output with a minimum of external components. Utilizing proprietary Super βeta PNP pass element, the MIC39300/1/2 offers extremely low dropout (typically 385 mV at 3.0A) and low ground current (typically 36 mA at 3.0A). The MIC39300/1/2 are ideal for PC add-in cards that need to convert from standard 3.3V to 2.5V or 2.5V to 1.8V. A guaranteed maximum dropout voltage of 500 mV over all operating conditions allows the MIC39300/1/2 to provide 2.5V from a supply as low as 3V, and 1.8V from a supply as low as 2.5V. The MIC39300/1/2 also have fast transient response for heavy switching applications. The device requires only 47 μF of output capacitance to maintain stability and achieve fast transient response. The MIC39300/1/2 are fully protected with overcurrent limiting, thermal shutdown, reversed-battery protection, reversed-leakage protection, and reversed-lead insertion. The MIC39301 offers a TTL-logic compatible enable pin and an error flag that indicates undervoltage and overcurrent conditions. Offered in fixed voltages, the MIC39300/1 come in the TO-220 and TO-263 (D²Pak) packages and are an ideal upgrade to older, NPN-based linear voltage regulators. The MIC39302 adjustable option allows programming the output voltage anywhere between 1.24V and 15.5V and is offered in a 5-Pin TO-263 (D²Pak) package.

Applications

• LDO Linear Regulator for PC Add-In Cards
• High-Efficiency Linear Power Supplies
• SMPS Post Regulator
• Multimedia and PC Processor Supplies
• Low Voltage Microcontrollers
• StrongARM Processor Supply

Key features

• 3.0A Minimum Guaranteed Output Current
• 550 mV Maximum Dropout Voltage over Temperature
• Ideal for 3.0V to 2.5V Conversion
• Ideal for 2.5V to 1.8V Conversion
• 1% Initial Accuracy
• Low Ground Current
• Current Limiting and Thermal Shutdown
• Reversed-Battery Protection
• Reversed-Leakage Protection
• Fast Transient Response
• TO-263 (D²Pak) and TO-220 Packaging
• TTL/CMOS Compatible Enable Pin (MIC39301/2 Only)
• Error Flag Output (MIC39301 Only)
• Adjustable Output (MIC39302 Only)
