MICROCHIPDatasheet (PDF)

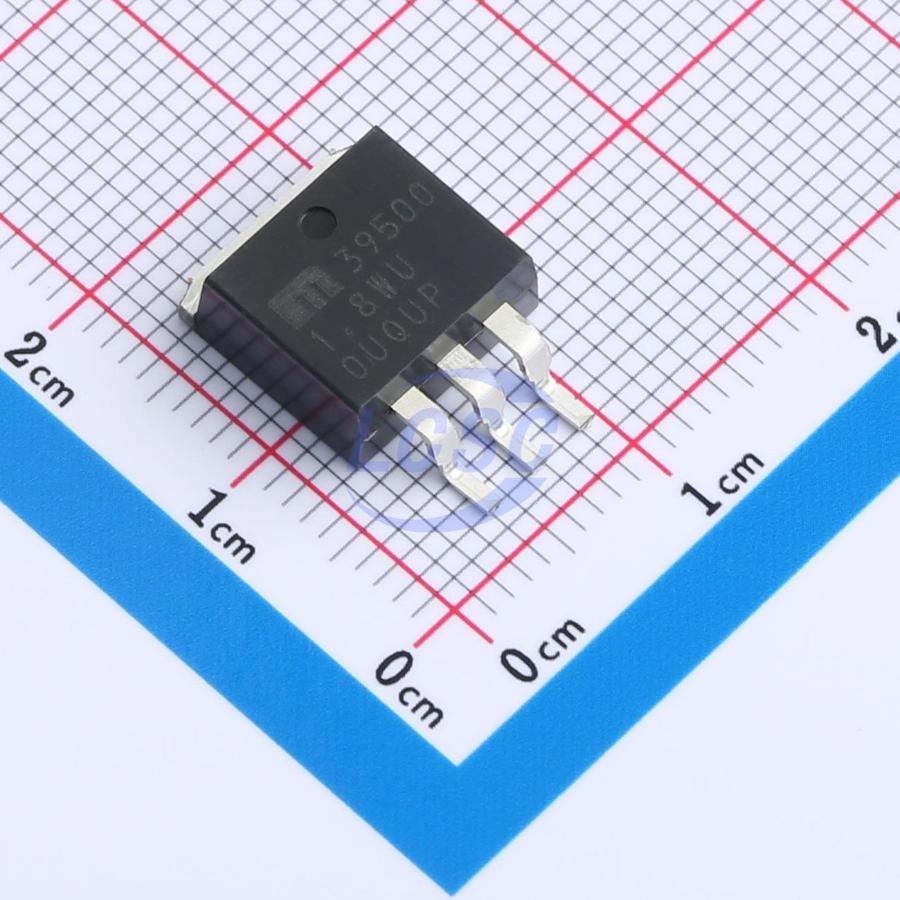

MIC39500-1.8WU
1.8V Positive Fixed TO-263-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-263-3ROHS3 CompliantActive
5A μCap Low-Voltage Low-Dropout Regulator
- Manufacturer
- MICROCHIP
- Manufacturer part #
- MIC39500-1.8WU
- Store part #
- C641310
- Package / case
- TO-263-3
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7 in stock
#C641310
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹2,046.38 | ₹2,046.38 |
| 10+ | ₹2,019.72 | ₹20,197.20 |
| 30+ | ₹1,973.39 | ₹59,201.70 |
| 100+ | ₹1,933.00 | ₹1,93,300.00 |
1 × ₹2,046.38
₹2,046.38
excl. GST
₹2,414.73 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
MIC39500-1.8WU
₹2,046.38 for 1 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Output Configuration
- Positive
- Output Current
- 5A
- Operating Voltage
- 16V
- Features
- Over Current Protection;Thermal shutdown;Reverse polarity voltage protection;Reverse-polarity current protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 6.5 g
Overview
MIC39500 and MIC39501 are 5A low dropout linear voltage regulators capable of delivering low voltage, high current outputs with minimal external components. Utilizing Micrel's proprietary Super Beta PNP pass element, the MIC39500/1 provides ultralow dropout voltage (typically 400 mV at 5A) and low ground current (typically 70 mA at 5A). The MIC39500/1 is ideal for PC add-in cards requiring conversion from standard 2.5V or 3.3V to newer, lower core voltages. With a maximum guaranteed dropout voltage of 500 mV under all operating conditions, the MIC39500/1 can supply 2.5V from supplies as low as 3V, or 1.8V from a 2.5V supply. The device also features fast transient response, making it suitable for heavy load switching applications. The regulator requires only a 47 μF output capacitor to maintain stability and achieve fast transient response.
Applications
- Low-voltage digital ICs
- LDO linear regulator for PC plug-in cards
- High-efficiency linear power supplies
- SMPS post-regulator
- Multimedia and PC processor power supplies
- Low-voltage microcontrollers
- StrongARM processor power supplies
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| MIC39500-1.8WU-TR#C632790MICROCHIP · TO-263-3 | MICROCHIP | TO-263-3 | On request | ₹854.59 · 0 in stock | View | |
