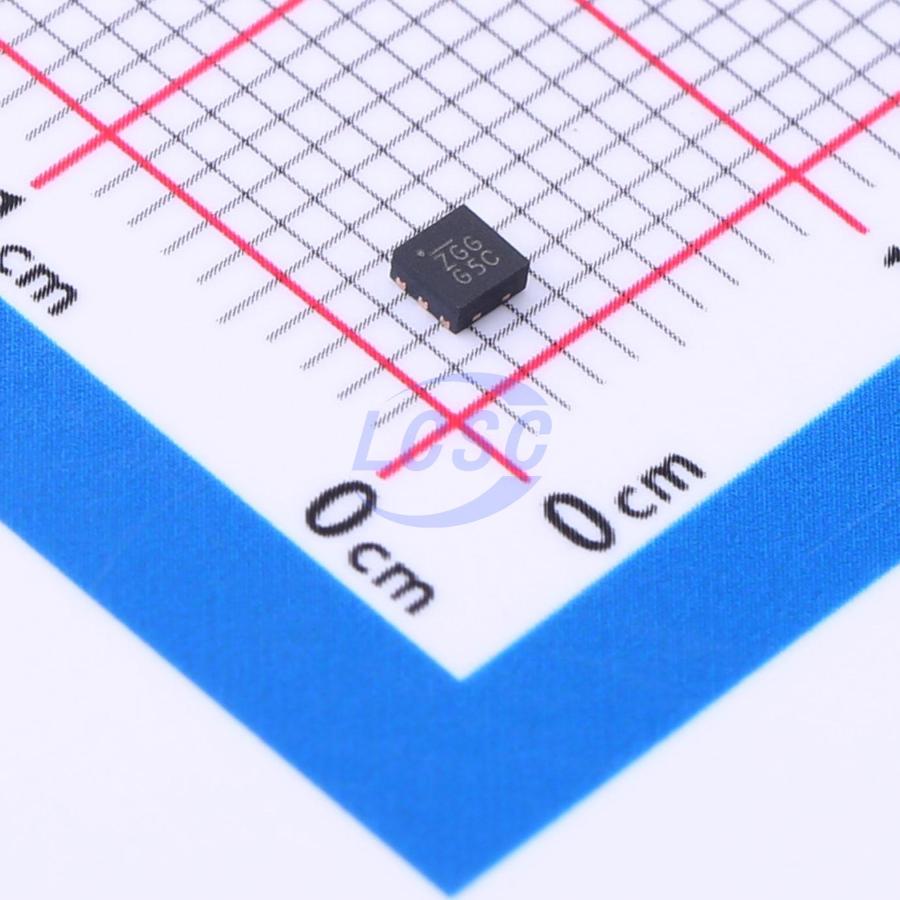

MIC47050-1.8YML-TR

The MIC47050 is a high speed, ultra-low dropout (ULDO), dual supply NMOS regulator designed to take advantage of point-of-load applications that use multiple supply rails to generate a low voltage, high-current power supply. The MIC47050 can source 500 mA of output current while only requiring a 1 μF ceramic output capacitor for stability. A 1.5% output voltage accuracy, low dropout voltage (44 mV at 500 mA) and low ground current make this device ideally suited for mobile and point-of-load applications. The MIC47050 has an NMOS output stage that offers very low output impedance. The NMOS output stage makes for a unique ability to respond very quickly to sudden load changes such as that required by a microprocessor, DSP or FPGA. The MIC47050 consumes little quiescent current and can be used for driving the core voltages of mobile processors, post regulating a core DC/DC converter in any processor. The MIC47050 is available in fixed and adjustable output voltages in a tiny 2 mm×2 mm DFN and TDFN packages with an operating junction temperature range of -40°C to +125°C.

Applications

• Point-of-Load Applications
• PDAs, Notebooks, and Desktops
• Datacom and Telecom Systems
• DSP, PLD and FPGA Power Supply
• Low Voltage Post Regulation

Key features

• Voltage Range - Input Voltage: 1.0V to 3.6V - Bias Voltage: 2.3V to 5.5V
• 0.4V to 2.0V Output Voltage Range
• Low Dropout Voltage of 44 mV at 500 mA
• ±1.5% Initial Output Voltage Accuracy
• High Bandwidth, Very Fast Transient Response
• Stable with a 1 µF Ceramic Output Capacitor
• Logic Level Enable Input
• UVLO on both Supply Voltages
• Available in Thermally Enhanced 2 mm×2 mm DFN and TDFN Packages
• -40°C to +125°C Junction Temperature Range
• AEC-Q100 Qualified and PPAP Capable Available for DFN Package Only
