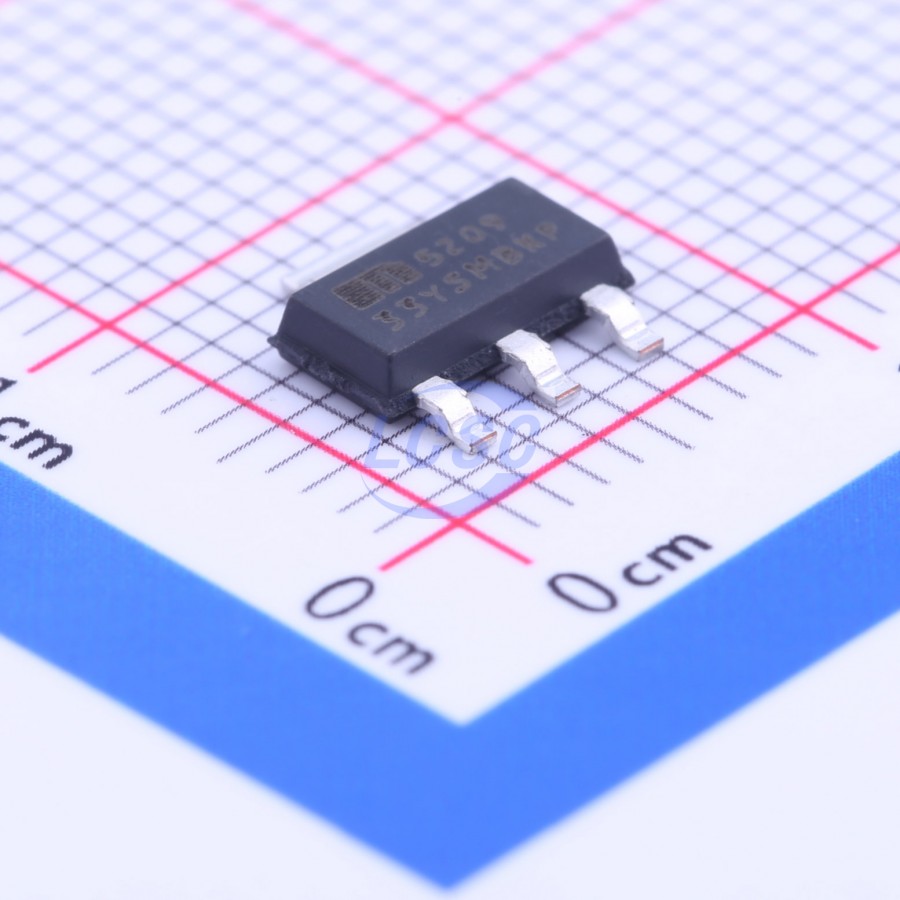

MIC5209-3.3YS-TR

The MIC5209 is an efficient linear voltage regulator with very low dropout voltage, typically 10 mV at light loads and less than 500 mV at full load, with better than 1% output voltage accuracy. Designed especially for hand-held, battery-powered devices, the MIC5209 features low ground current to help prolong battery life. An enable/shutdown pin on the SOIC-8 and DDPAK versions can further improve battery life with near-zero shutdown current. Key features include reversed-battery protection, current limiting, overtemperature shutdown, ultra-low-noise capability (SOIC-8 and DDPAK versions), and is available in thermally efficient packaging. The MIC5209 is available in adjustable or fixed output voltages.

Applications

• Pentium II Slot 1 and Slot 2 Support Circuits
• Laptop, Notebook, and Palmtop Computers
• Cellular Telephones
• Consumer and Personal Electronics
• SMPS Post-Regulator and DC/DC Modules
• High-Efficiency Linear Power Supplies

Key features

• Output Voltage Range: 1.8V – 15V
• Meets Intel Slot 1 and Slot 2 Requirements
• Guaranteed 500 mA Output Over the Full Operating Temperature Range
• Low 500 mV Maximum Dropout Voltage at Full Load
• Extremely Tight Load and Line Regulation
• Thermally Efficient Surface-Mount Package
• Low Temperature Coefficient
• Current and Thermal Limiting
• Reversed-Battery Protection
• No-Load Stability
• 1% Output Accuracy
• Ultra-Low-Noise Capability in SOIC-8 and DDPAK
• Ultra-Small 3 mm×3 mm DFN Package
